CPX-E-4AI-U-I

属性名称	属性值
Brand	Festo
Model	CPX-E-4AI-U-I
Part No	4136621
Product Type	CPX-E Analog Input Module
Series	CPX-E
Channel	4 channels analog input, voltage / current configurable per channel
Signal Type	Voltage: 0–10V, ±10V; Current: 0–20mA, 4–20mA
Resolution	16 bit
Sampling Rate	1ms per channel
Input impedance	Voltage: >1MΩ; Current: 100Ω
Power Supply	Module supply DC24V, sensor supply DC24V
Connection	Terminal block, 12-pin
Indicator	LED per channel for status / fault
Dimension(W×H×D)

INQUIRY

Product Details

Product Tags

Product Description

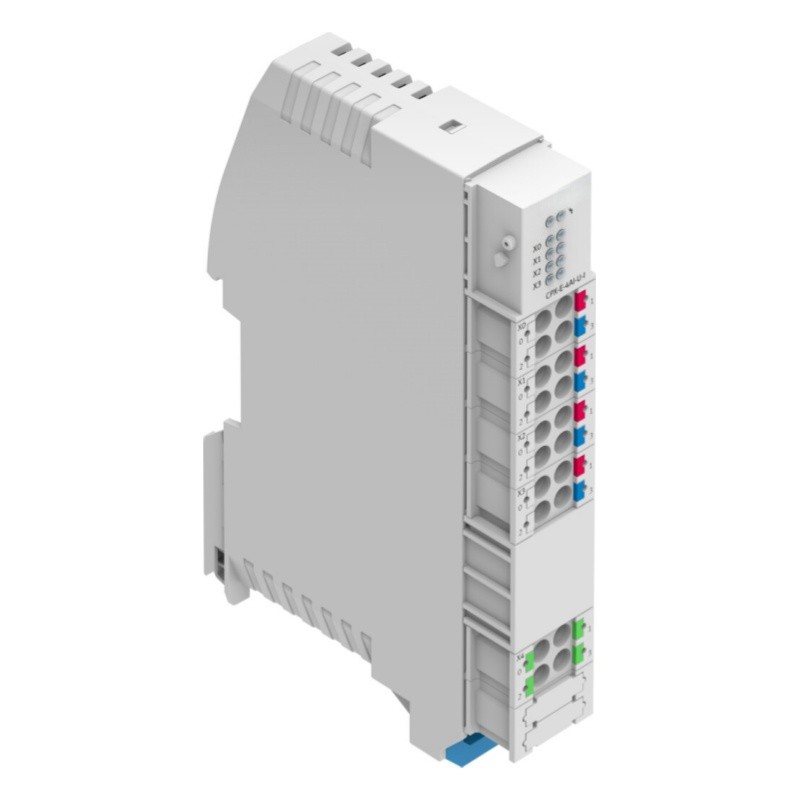

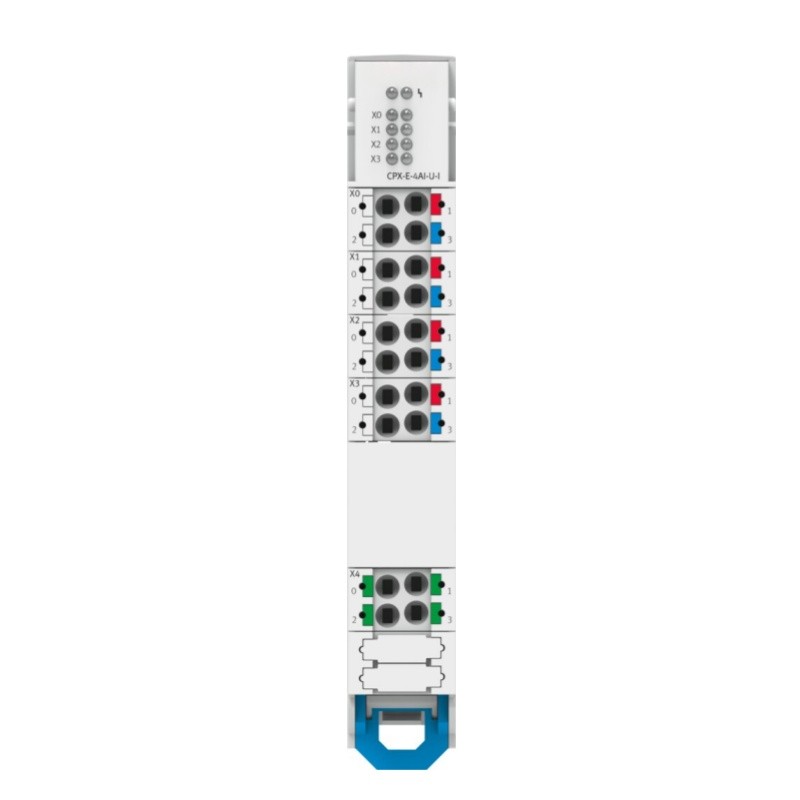

Festo CPX-E-4AI-U-I (PN:4136621) is CPX-E series 4-channel analog input remote IO module for Festo CPX-E modular station. Each channel can be individually configured for voltage or current analog signals.

16-bit high resolution ensures accurate measurement of sensor signals like pressure, temperature and flow. Fast 1ms per-channel sampling. It is installed on DIN rail inside control cabinet and communicates via CPX-E bus node to PLC. Channel LED indicators help quickly diagnose wiring and signal faults. Widely used for process monitoring in pneumatic automation, packaging and assembly lines.

Item	Specification
Brand	Festo
Model	CPX-E-4AI-U-I
Part Number	4136621
Type	Analog Input Module
Series	CPX-E
Channels	4AI, voltage/current configurable
Resolution	16 bit
Sampling	1ms per channel
Power	DC24V
Mounting	DIN rail
Protection	IP20
Dimension	30 × 100 × 74 mm
Weight	110 g
Material	PA housing
Ambient Temp	0 ~ +55 ℃
Corrosion Class	CRC2
Standard	LABS, RoHS, CE, cULus, UKCA
