CPE10-M1BH-3OL-M7
Product Description

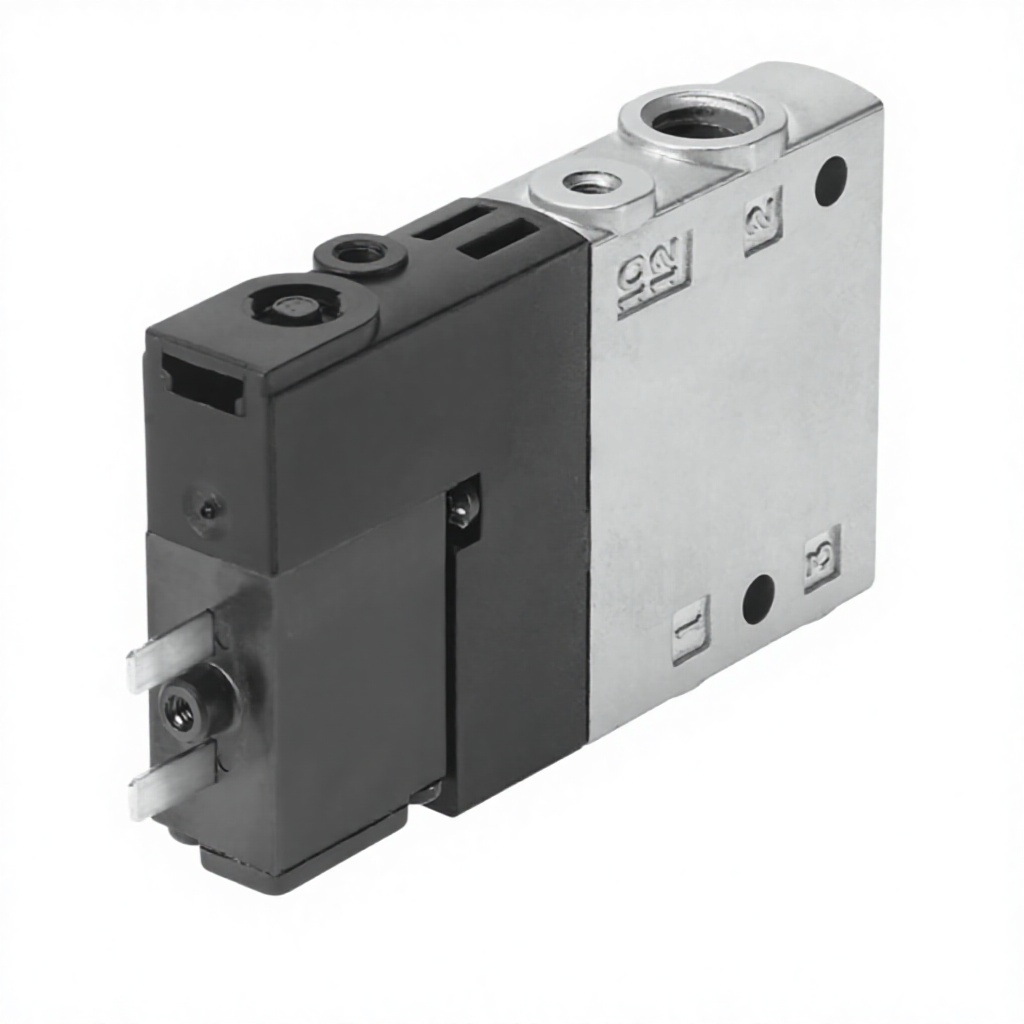

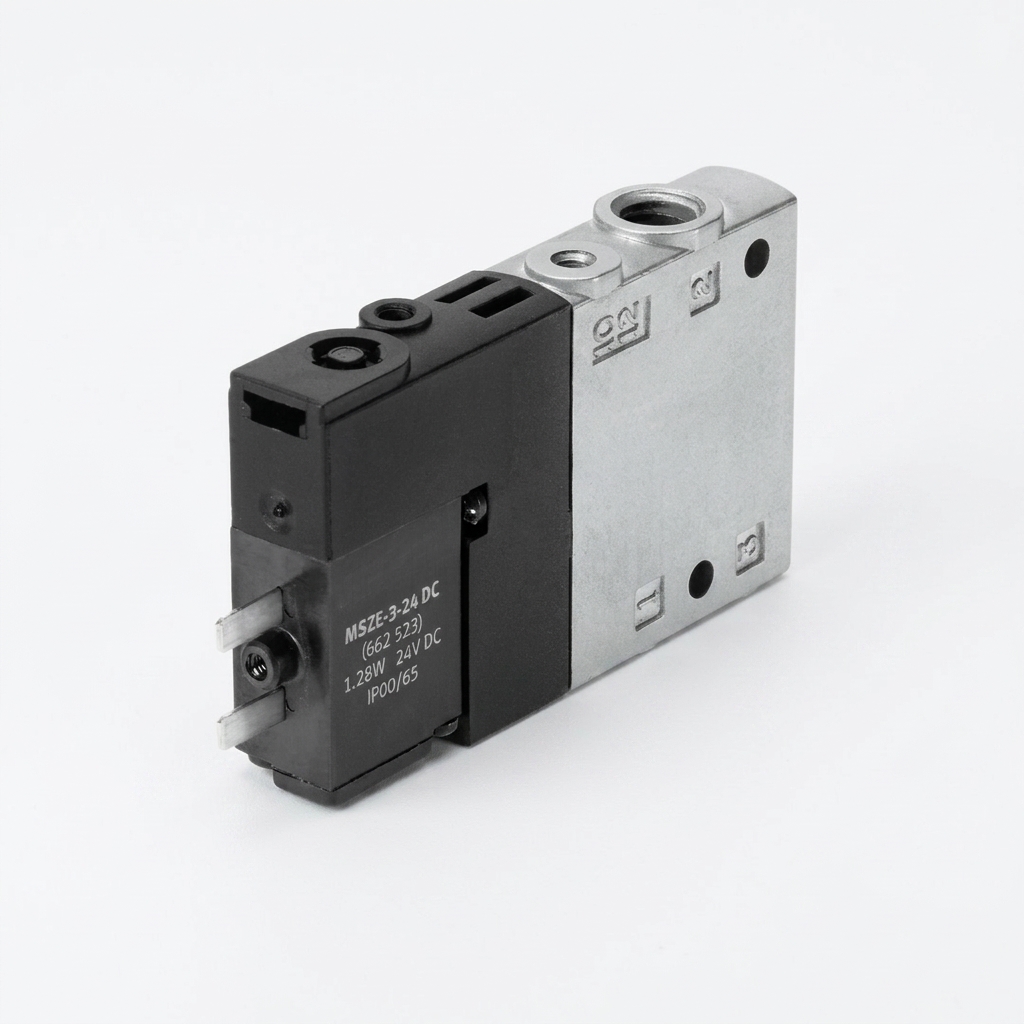

The Festo CPE10-M1BH-3OL-M7 (Part No. 196917) belongs to the CPE10 series compact solenoid valve. It is a 3/2 way normally open single solenoid pneumatic valve with a 10 mm body width, designed for space-saving installation in industrial automation systems.
This solenoid valve adopts internal pilot operation, M7 pneumatic port, 24V DC coil, with a nominal flow rate up to 400 L/min. The working pressure range is 0.25~0.8 MPa. The valve body is made of die-cast aluminium with NBR seals, stable and durable. Equipped with socket, it reaches IP65 protection grade.
Features: Fast response time, low power consumption, optional mounting position, non-reversible flow direction. Widely used in packaging machines, conveyor equipment, automated assembly lines and other pneumatic control systems.
We supply original Festo pneumatic components. Items are in stock, fast delivery, strict inspection before shipment. Support bulk order inquiry.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | CPE10-M1BH-3OL-M7 |
| Part Number | 196917 |
| Valve Type | 3/2 Normally Open, Single Solenoid |
| Body Width | 10 mm |
| Pneumatic Port | M7 |
| Operating Voltage | 24V DC |
| Coil Power | 1.28 W |
| Nominal Flow Rate | 400 L/min |
| Working Pressure | 0.25 ~ 0.8 MPa |
| Pilot Supply | Internal pilot |
| Medium | Compressed air |
| Ambient Temperature | -5 ~ +50 ℃ |
| Protection Class | IP65 (with socket) |
| Housing Material | Die-cast Aluminium |
| Seal Material | NBR |
| Weight | 40.00 g |
| Certification | RoHS, cULus |
