LUTS-BSF1F21142ZZZ 1144398
Product Details

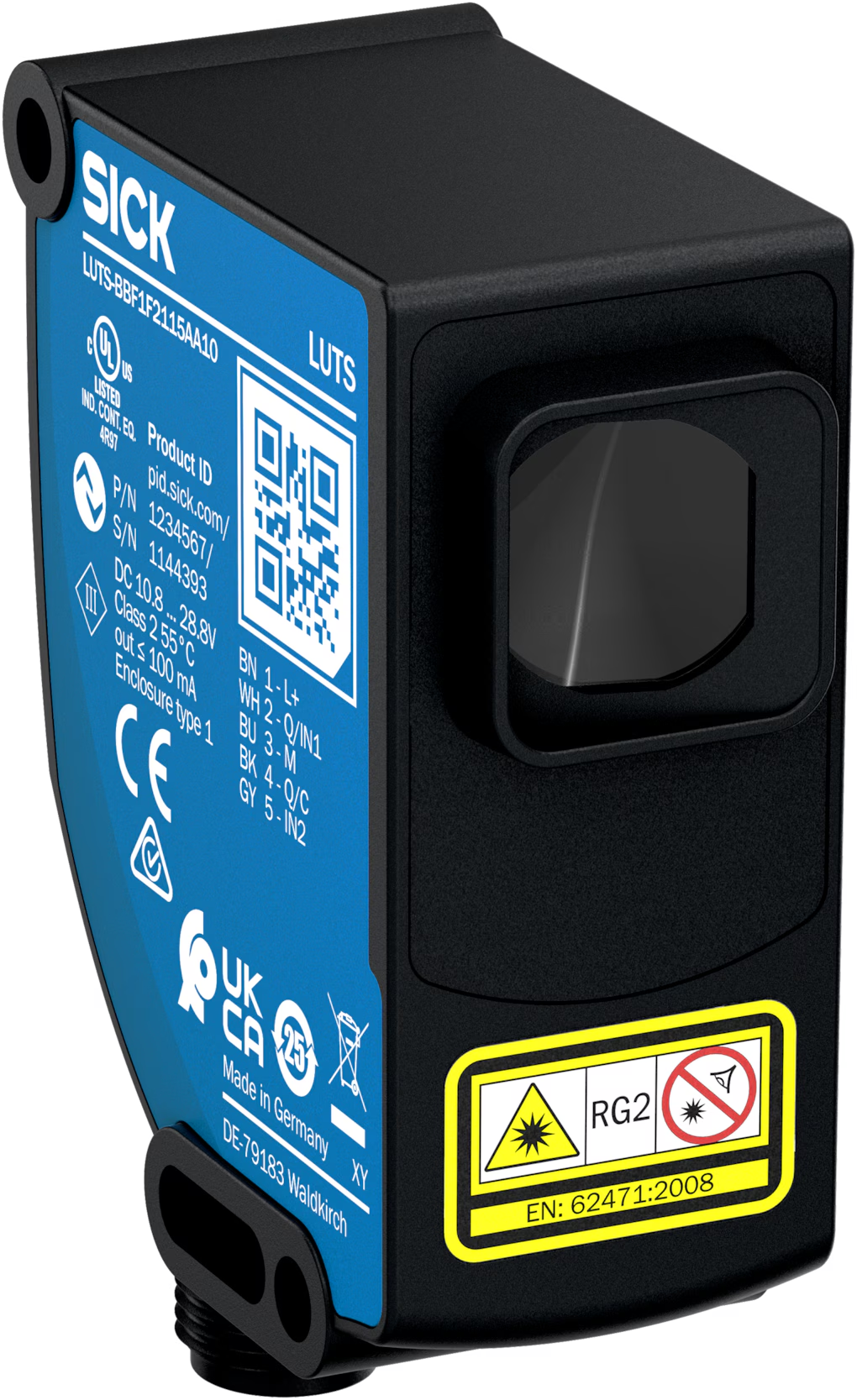

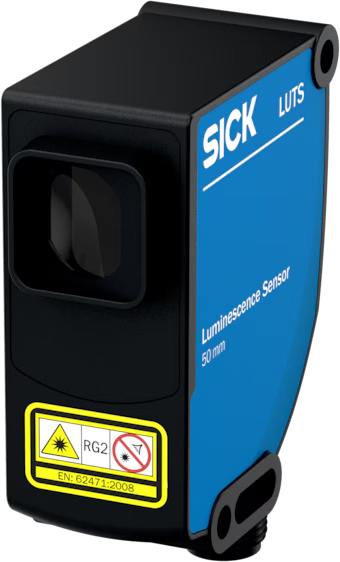

The SICK LUTS-BSF1F21142ZZZ is a brand-new original blue light luminescence sensor from the LUTS series. Equipped with blue LED light source, it operates at 10–30 V DC power supply and features switchable PNP/NPN output as well as Light-ON / Dark-ON function, compatible with multiple industrial automation controllers. It has IP67 protection grade against dust and moisture, working stably within -20℃ ~ +60℃ ambient temperature.
This sensor adopts zinc die-cast metal and plastic rectangular housing, fitted with M12 4-pin connector for simple wiring and installation. Its maximum sensing range reaches 50mm. It is specially used for fluorescent mark detection, label detection and ink inspection.
It is widely applied in packaging machinery and conveyor automated production lines. Each unit undergoes strict pre-shipment quality inspection and comes with CE certification. We supply genuine SICK sensors with MOQ of 1 piece and provide stable global shipping services to meet your factory automation demands.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | LUTS-BSF1F21142ZZZ |
| Product Name | Luminescence Sensor |
| Product Type | Blue Light Luminescence Sensor |
| Series | LUTS series |
| Working Principle | Luminescence detection |
| Light Source | Blue LED |
| Housing Material | Zinc die-cast metal + Plastic |
| Shape | Rectangular |
| Connection | M12 4-pin connector |
| Output Type | PNP/NPN switchable, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -20℃ ~ +60℃ |
| Sensing Range | Up to 50mm |
| Net Weight | 0.18 kg |
| Gross Weight | 0.23 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Fluorescent mark detection, label detection, ink inspection, packaging machinery, conveyor automation |
| Certificate | CE |
| MOQ | 1 Piece |
