9983 VL/O-3-1/2
Product Overview

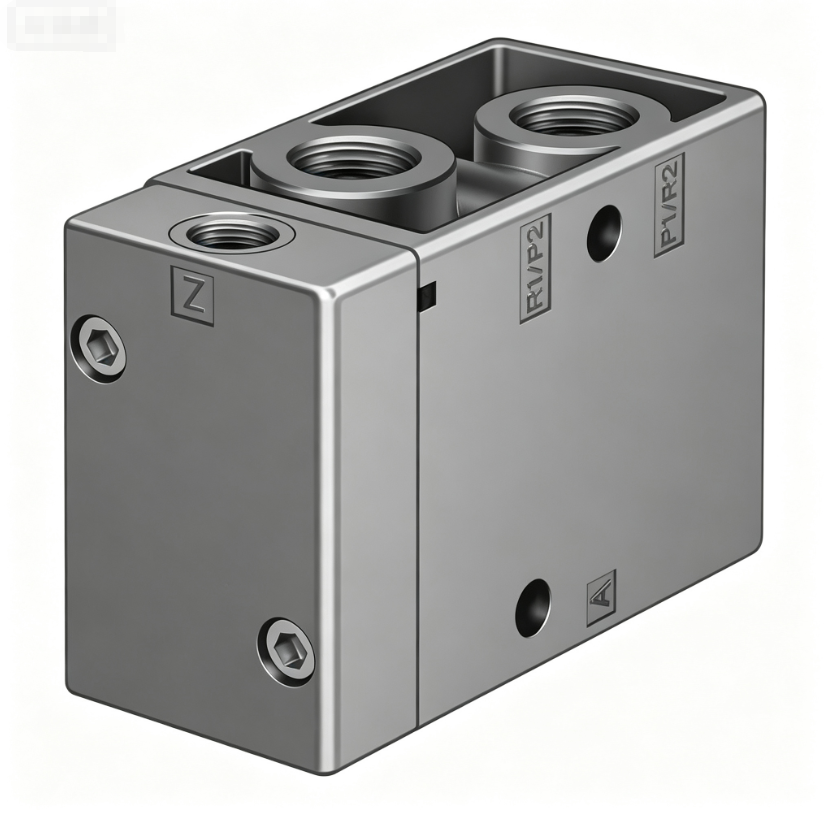

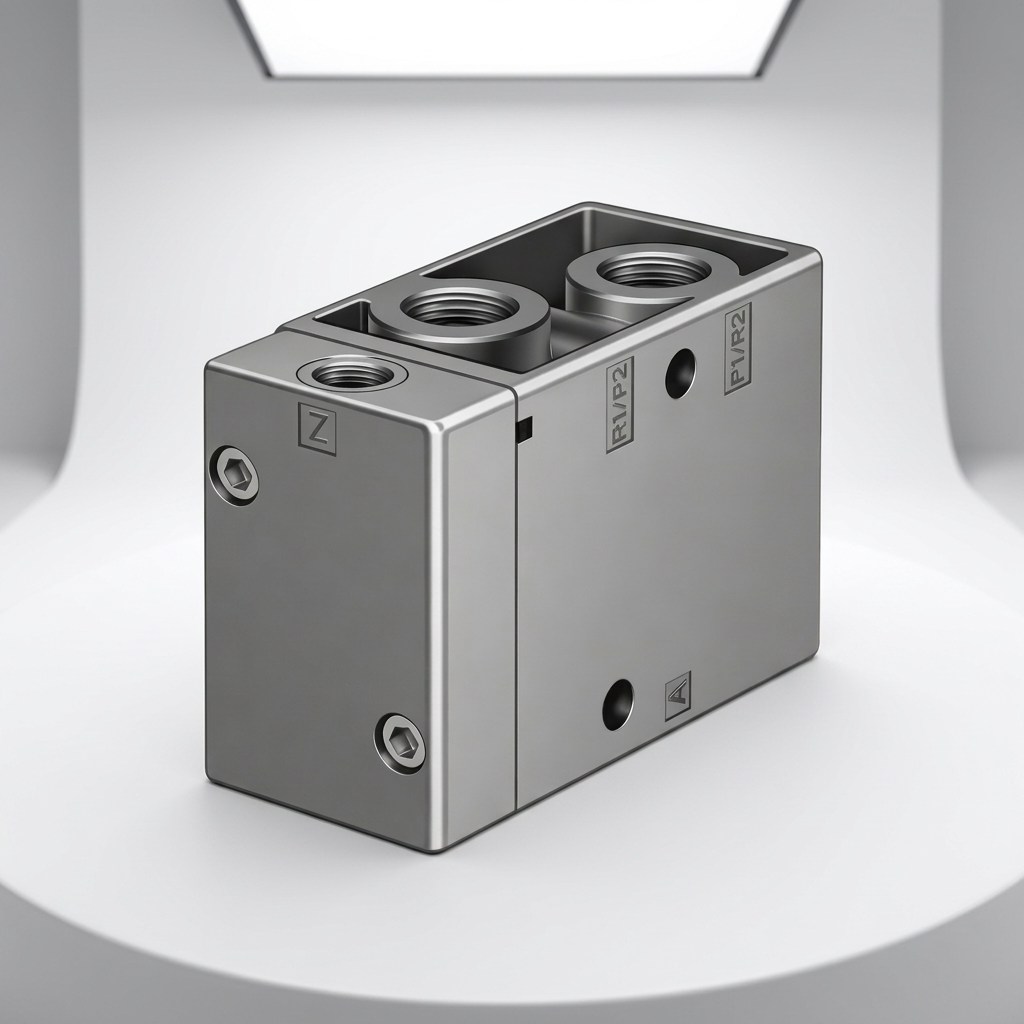

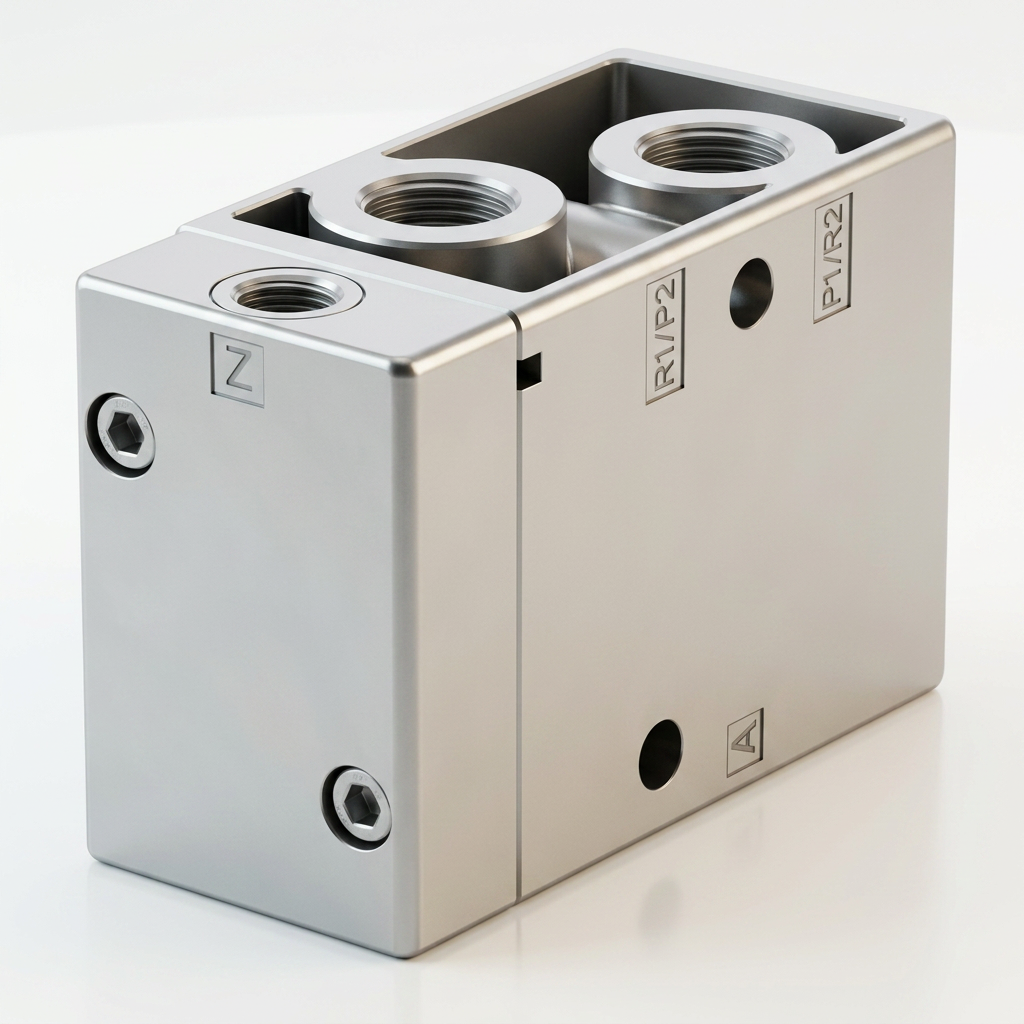

Item No: 9983 Model: VL/O-3-1/2 Brand: Festo Type: Mechanical Pneumatic Valve
Festo VL/O-3-1/2 mechanical valve (9983) belongs to VL/O series roller plunger mechanical control valve. It is a 3/2-way spring return valve, actuated by roller plunger. When mechanical contact presses the roller, the valve switches air circuit; spring resets the valve after release. G1/2 port, no solenoid required, purely mechanical pneumatic control, used for travel limit signal in automation machines.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VL/O-3-1/2 |
| Part No. | 9983 |
| Type | Mechanical Valve / Pneumatic Actuated Valve |
| Series | VL/O |
| Valve Function | 3/2-way, monostable, spring return |
| Port Size | G1/2 |
| Working Pressure | 0 ~ 1.0 MPa (0 ~ 10 bar) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +60 ℃ |
| Material | Aluminum valve body, PA plastic actuator head, NBR seal |
| Feature | Roller plunger actuation, mechanical operation, spring return |
| Mounting | Surface mounting |
| Condition | New Original |
