MPPE-3-1/4-6-010-B
Product Overview

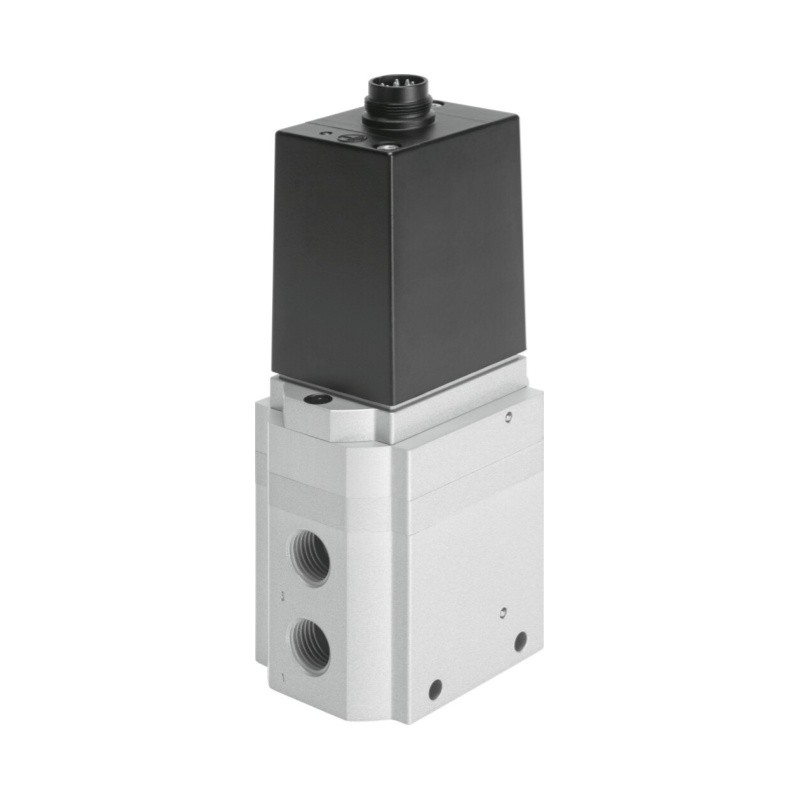

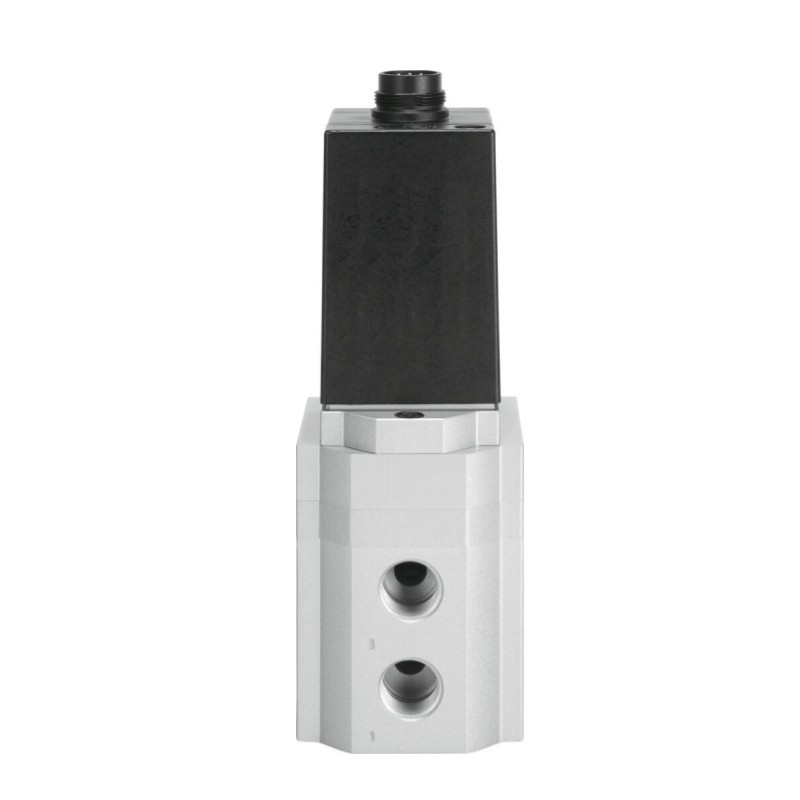

FESTO MPPE-3-1/4-6-010-B belongs to MPPE series 3-way proportional pressure regulator. Pilot piston structure with soft seal, G1/4 air port, adjustable pressure range 0~6bar, controlled by 0~10V analog voltage signal. Integrated pressure sensor for closed-loop feedback. B version keeps output pressure unchanged when power supply interrupted. Reverse polarity and short-circuit protection. LABS(PWIS) compliant, suitable for lithium battery and paint workshop automation. This model is phase-out product, only remaining stock available, not recommended for new equipment design. Any installation orientation, widely used for pneumatic pressing force and pressure closed-loop control
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | MPPE-3-1/4-6-010-B |
| Order No. | 161167 |
| Product Series | MPPE |
| Product Type | 3-Way Proportional Pressure Regulator |
| Structure | Pilot-controlled piston regulator, soft seal |
| Pneumatic Port | G1/4 |
| Pressure Regulation Range | 0 ~ 6 bar |
| Setpoint Signal | 0~10V DC analog input（010） |
| Supply Voltage | DC18 ~ 30V |
| Supply Air Pressure | 7 ~ 8 bar |
| Nominal Flow | 1200 l/min |
| Hysteresis | ≤0.04 bar |
| Response Time | On:170ms; Off:510ms |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Housing Material | Aluminium alloy |
| Seal | NBR soft seal |
| Feature | B variant: maintains output pressure upon power loss; reverse polarity & short-circuit protection; built-in pressure feedback sensor; phase-out product, not recommended for new machine design, LABS(PWIS) compliant VDMA24364-B1/B2-L |
| Mounting | Through-hole installation, any mounting position |
| Corrosion Resistance Class | CRC2 |
| Weight | 915 g |
| Certificate | CE, RoHS |
| Origin | Germany |
| Condition | New Original |
