DIFC1-30X40X7,8-TPE-U
Product Overview

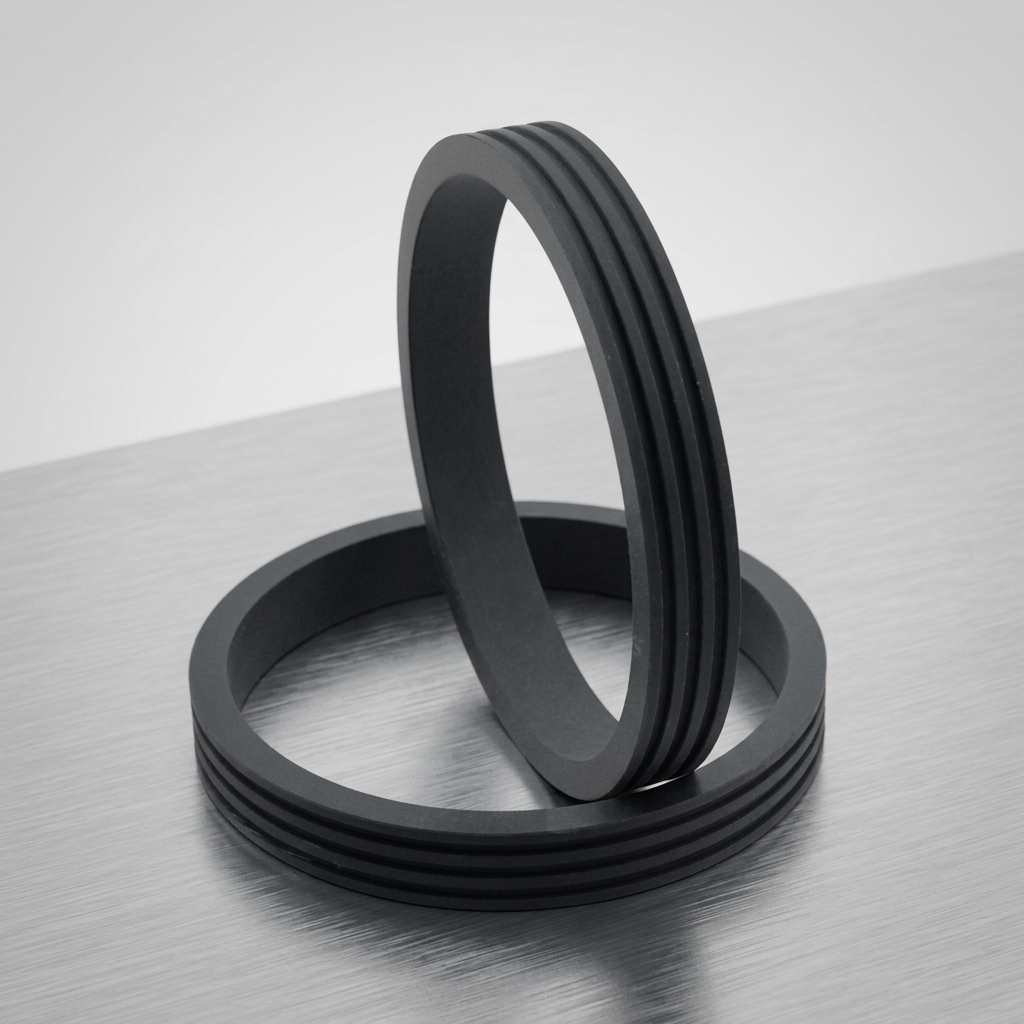

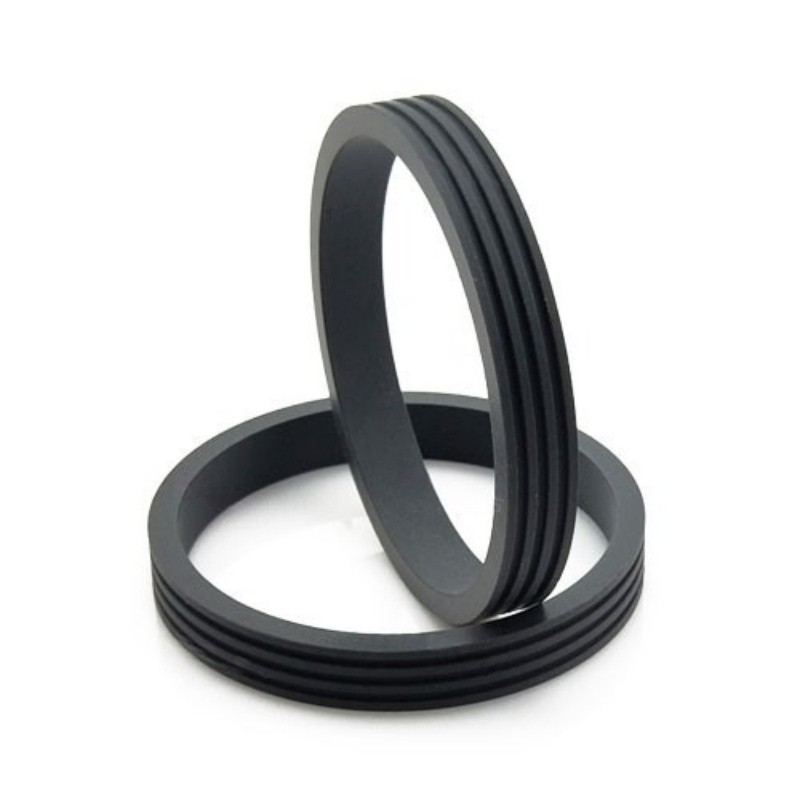

FESTO DIFC1-30X40X7,8-TPE-U belongs to DIFC1 buffer seal series. It is a PU(TPE-U) cushion sealing ring installed inside cylinder end cap cushion chamber, dimension ID30 × OD40 × thickness7.8mm. The seal absorbs piston kinetic energy during cushioning phase and reduces impact noise. LABS(PWIS) compliant, suitable for lithium battery and paint workshop automation. This spare part cannot be ordered individually, only supplied as part of Festo cylinder repair kit. Reassembly requires applying designated Festo lubricating grease
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DIFC1-30X40X7,8-TPE-U |
| Product Series | DIFC1 |
| Product Type | Pneumatic Cylinder Buffer Seal / Cushion Seal |
| Dimension | ID30 × OD40 × Thickness7.8 mm |
| Seal Material | TPE-U (PU) 聚氨酯 |
| Operating Pressure | 0 ~ 12 bar |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air optional |
| Feature | LABS (PWIS) compliant VDMA24364-B2-L；用于 ISO 标准气缸两端缓冲，吸收活塞冲击；不单独售卖，仅作为气缸维修包内部备件，重装时需涂抹专用润滑脂；耐磨、抗动态冲击 |
| Mounting | Installed inside cylinder end cap cushion chamber |
| Corrosion Resistance Class | CRC2 |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
