1061396 GSE6-P4212

属性项	参数
Brand	SICK
Model	GSE6-P4212
Order No.	1061396
Product Type	Through-beam Photoelectric Sensor
Sensing Principle	Through-beam (Transmitter + Receiver)
Sensing Range	0~15 m
Output Type	PNP NO
Supply Voltage	10~30V DC
Connection	M8 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red LED
Size	11 × 31.5 × 21 mm
Response Time	≤0.25ms
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Net Weight	0.04kg
Gross Weight	0.07kg
Certification	CE

INQUIRY

Product Details

Product Tags

Product Overview

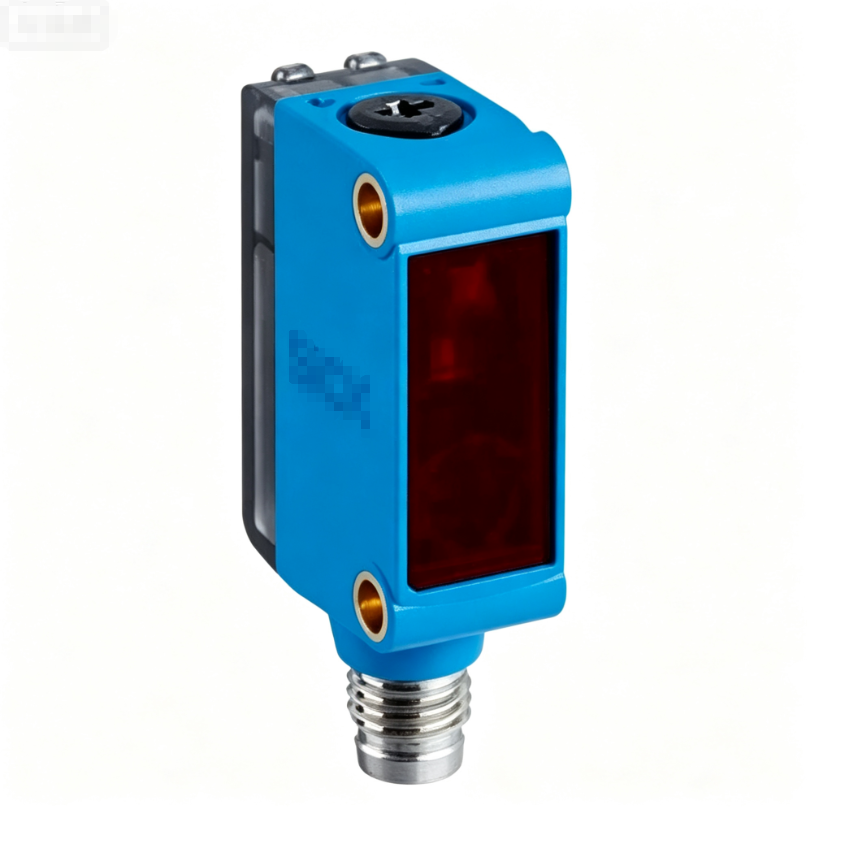

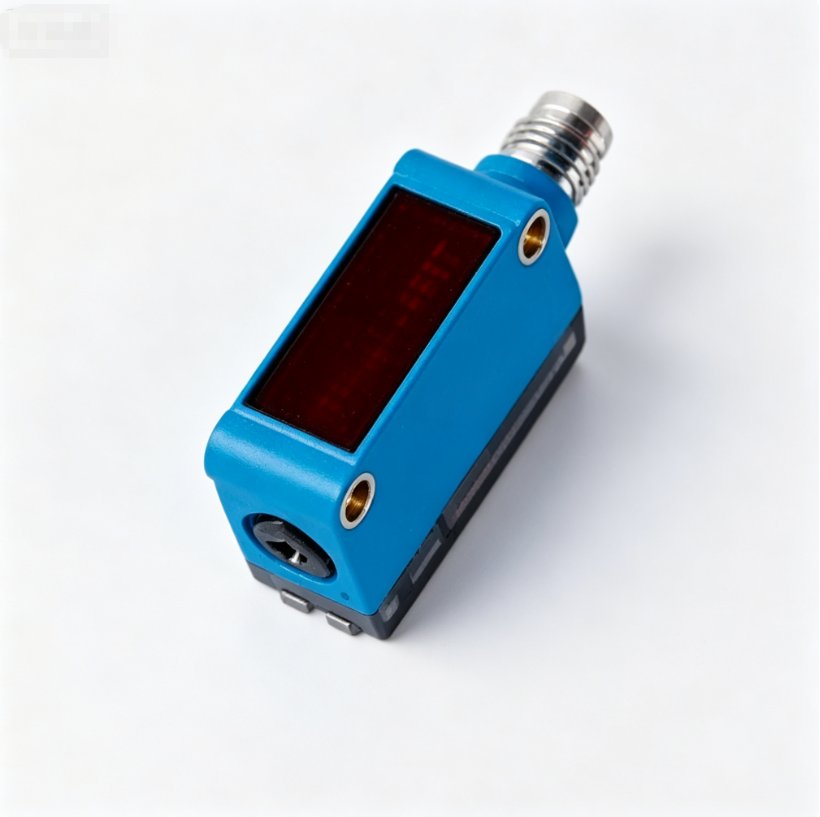

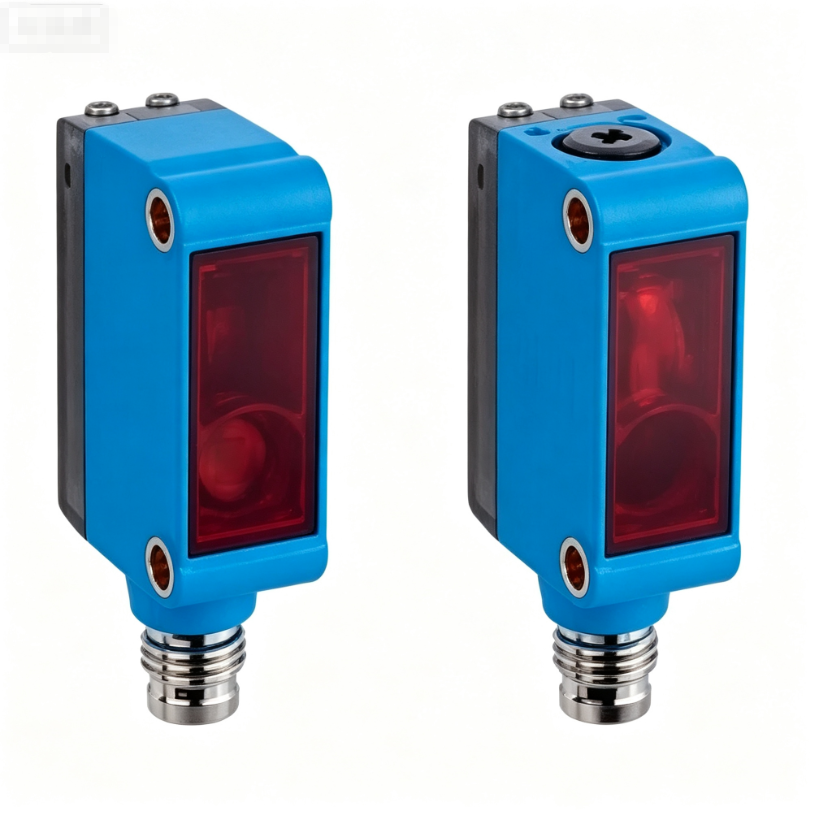

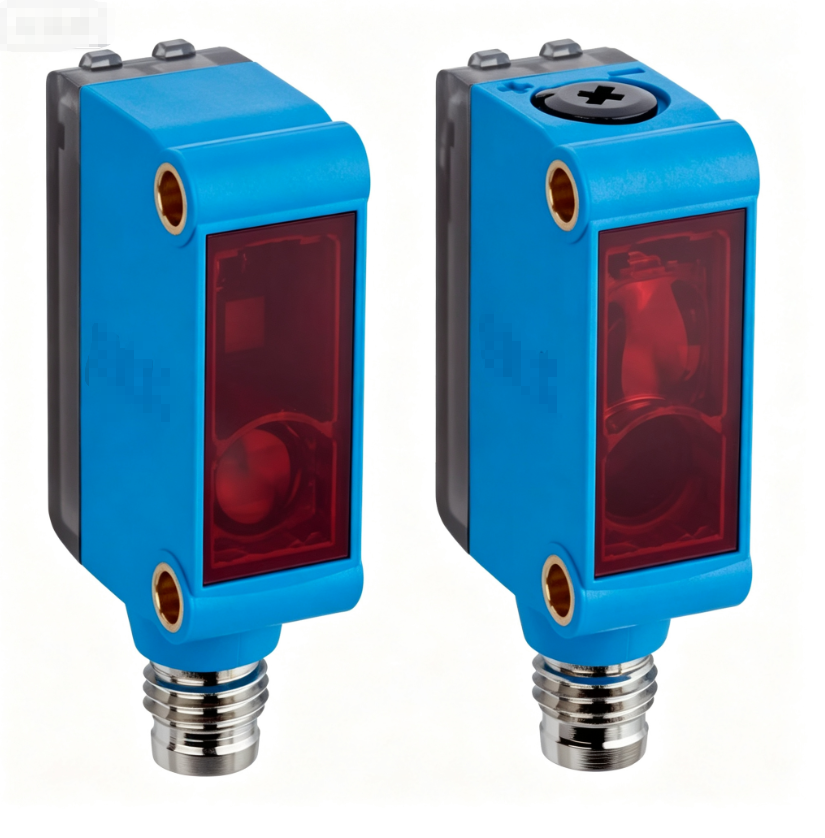

SICK GSE6-P4212, Order No.1061396 is a compact through-beam photoelectric sensor, including transmitter and receiver units. With red LED light source, it features long sensing distance and ultra-fast response, designed for reliable object detection in limited installation space.

属性项	参数
Brand	SICK
Model	GSE6-P4212
Order No.	1061396
Product Type	Through-beam Photoelectric Sensor
Sensing Principle	Through-beam (Transmitter + Receiver)
Sensing Range	0~15 m
Output Type	PNP NO
Supply Voltage	10~30V DC
Connection	M8 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red LED
Size	11 × 31.5 × 21 mm
Response Time	≤0.25ms
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Net Weight	0.04kg
Gross Weight	0.07kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Packaging Machine, Object Counting
