HEE-D-MIDI-24
Product Description

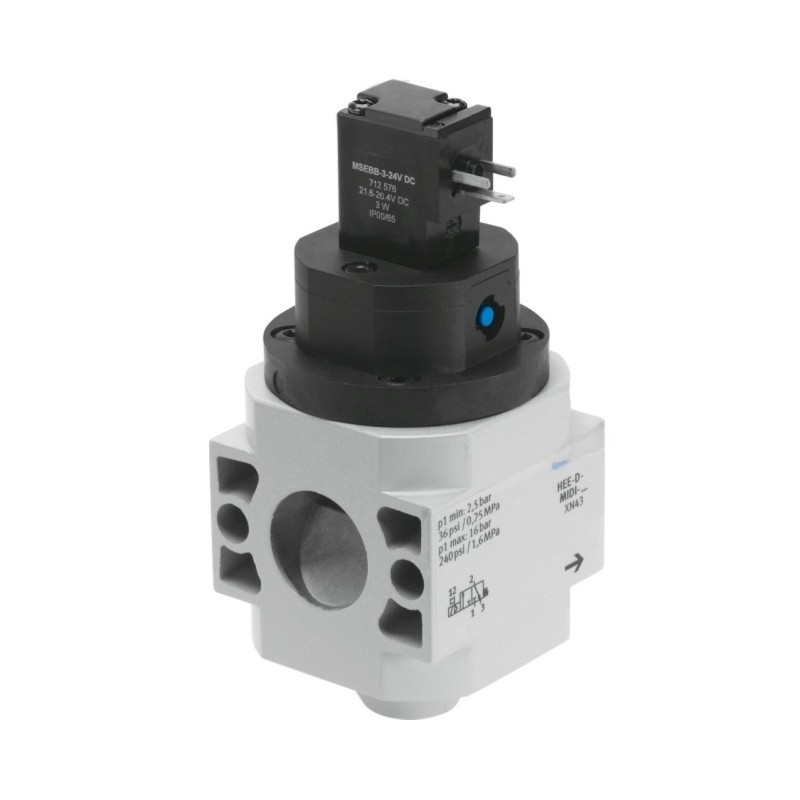

Festo HEE-D-MIDI-24 (Part No.172959) is HEE series electric on/off shut-off valve, designed to be integrated with Festo D series MIDI air service units. It is a 3/2-way normally closed pilot piston gate valve, used to switch on or cut off the compressed air supply for entire pneumatic machine systems.
The solenoid coil can be rotated in four 90° positions for flexible wiring orientation. It has detenting manual override for commissioning and maintenance. High flow capacity up to 3800 L/min. This valve is widely used for machine safety air shut-off. Important: this model is scheduled for phase-out, not suitable for new project design.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | HEE-D-MIDI-24 |
| Part Number | 172959 |
| Type | Electric on/off shut-off valve |
| Series | HEE, MIDI |
| Valve Function | 3/2-way, normally closed, monostable pilot operated |
| Pneumatic Port | G1/2 |
| Operating Pressure | 0.25 ~1.6 MPa |
| Rated Voltage | DC24V |
| Coil Power | 2.5 W |
| Nominal Flow | 3800 L/min |
| Medium | Compressed air, inert gas ISO 8573-1 [7:4:4] |
| Ambient Temp | -10 ~ +60 ℃ |
| Weight | 500.00 g |
| Material | Die-cast aluminium housing, NBR seal |
| Corrosion Class | CRC2 |
| Standard | LABS, RoHS, CE |
