MF-K0605P141ZZZ
Product Details

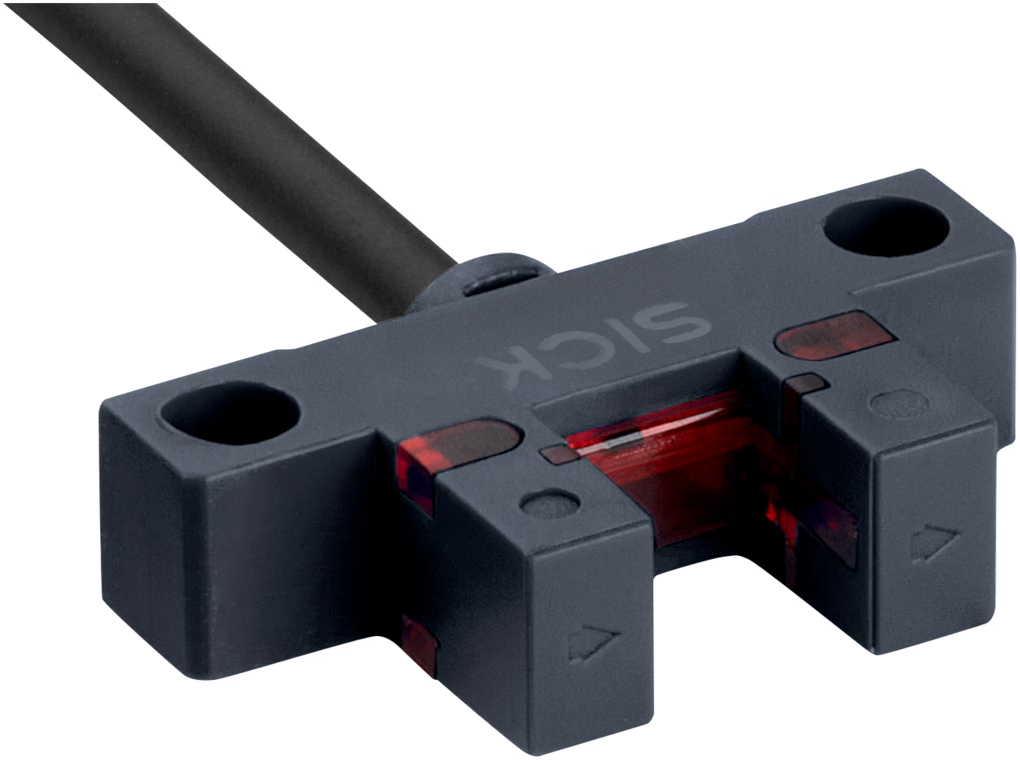

The SICK MF-K0605P141ZZZ is a brand-new original micro fork photoelectric sensor from the MF series. Designed as a through-beam slot sensor, it comes with a 6 mm slot width and 5 mm fork depth, equipped with infrared LED light source. It operates within 5–30 V DC power range and supports switchable Light-ON / Dark-ON PNP output, flexible for different detection requirements. It achieves IP67 rating for reliable dust and water resistance.
Constructed with robust PBT plastic housing, this compact sensor can fit into narrow installation spaces. It connects via a 2-meter 4-wire PVC cable for easy wiring and assembly. It delivers fast response speed, ideal for label edge identification, high-speed counting and tiny object detection.
It is widely used on packaging machinery and automated production lines. Each unit passes complete quality inspection before shipment and holds CE certification. We supply genuine SICK sensors with an MOQ of 1 piece and provide trusted global shipping to meet your industrial automation demands.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | MF-K0605P141ZZZ |
| Product Name | Fork Photoelectric Sensor |
| Product Type | Micro Fork / Slot Photoelectric Sensor |
| Series | MF Series |
| Working Principle | Through-beam fork type |
| Light Source | Infrared LED |
| Housing Material | PBT Plastic |
| Shape | Fork / Slot type |
| Fork Size | Slot width 6 mm, Fork depth 5 mm |
| Dimension(W×H×D) | 26mm × 19.2mm ×13.65mm |
| Connection | 4-wire 2m PVC cable |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 5 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -25℃ ~ +55℃ |
| Net Weight | 0.09 kg |
| Gross Weight | 0.14 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Label detection, high-speed counting, packaging machinery, tiny object detection |
| Certificate | CE |
| MOQ | 1 Piece |
