SMT-8M-A-PS-24V-E-5,0-OE
Product Overview

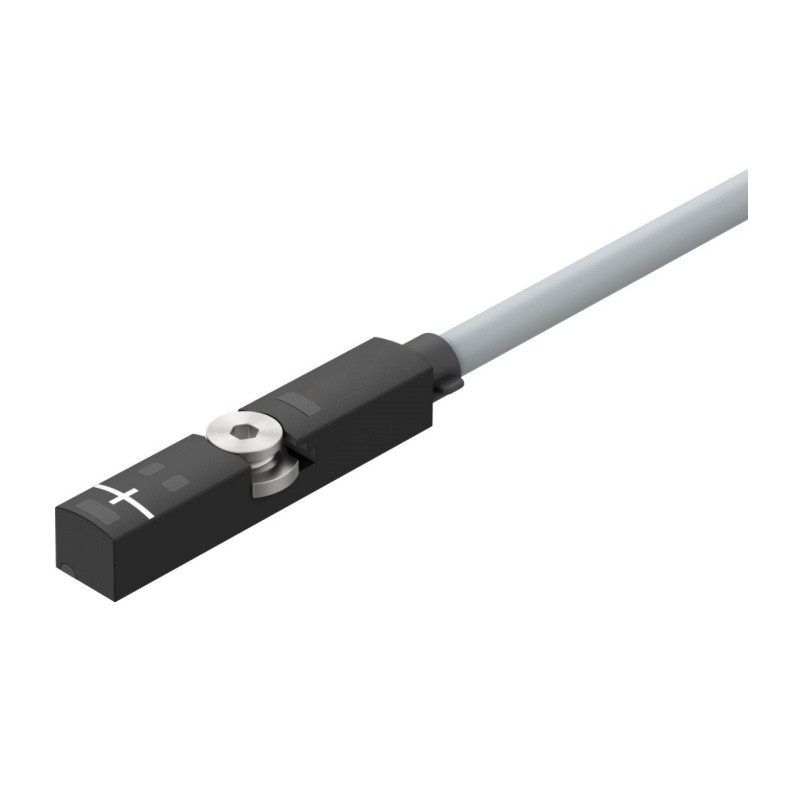

SMT-8M-A-PS-24V-E-5,0-OE (Part No.574336) is Festo SMT-8M-A magneto-resistive proximity sensor for T-slot cylinders. It can be inserted from the top into cylinder T-slot, detects built-in piston magnet for position feedback. PNP 3-wire normally open output, 5m drag-chain compatible cable with open bare wire end. High repeat accuracy 0.2mm, wide temperature range -40~+85℃, with short-circuit, overload and reverse polarity protection. Oil-resistant and halogen-free cable, suitable for dynamic robot and energy chain movement.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | SMT-8M-A-PS-24V-E-5,0-OE |
| Part No. | 574336 |
| Product Type | Pneumatic Cylinder Proximity Sensor / Magneto-resistive position sensor |
| Series | SMT-8M-A |
| Mounting | T-slot, top insertion |
| Sensing Principle | Magneto-resistive |
| Output Type | PNP, N/O Normally open |
| Rated Voltage | 24 V DC |
| Operating Voltage Range | DC 5 ~ 30 V |
| Cable | 3-core, 5.0 m, energy chain / robot compatible (E) |
| Cable End | Open end (OE) |
| Max. Output Current | 100 mA |
| Max. Switching Capacity | 2.8 W |
| Repetition Accuracy | 0.2 mm |
| Max. Switching Frequency | 130 Hz |
| Switch-on Time | ≤1.3 ms |
| Switch-off Time | ≤7.3 ms |
| Protection | Short-circuit protection, overload protection, reverse polarity protection |
| Ambient Temperature | -40 ~ +85 ℃ |
| Housing Material | High-performance plastic |
| Cable Insulation | Oil-resistant, halogen-free |
| CRC Corrosion Class | CRC1 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.048 kg |
| Gross Weight | 0.06 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Pneumatic cylinder position detection, automation fixture, assembly & handling machinery |
