HE-2-QS-8
Product Overview
Item No: 153473 Model: HE-2-QS-8 Brand: Festo Type: 2/2-Way Manual Shut-off Valve, HE Series

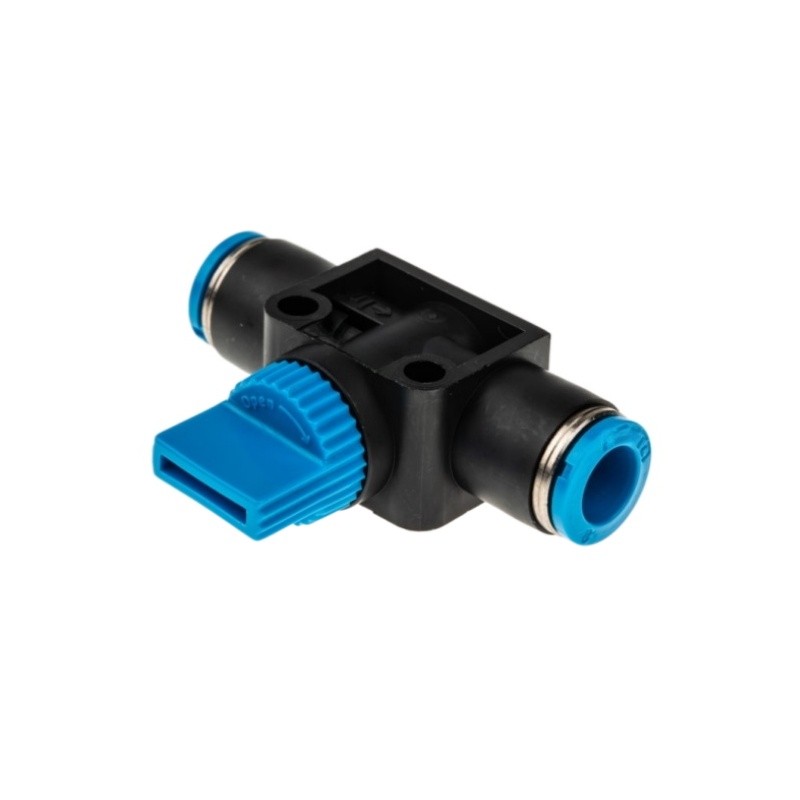

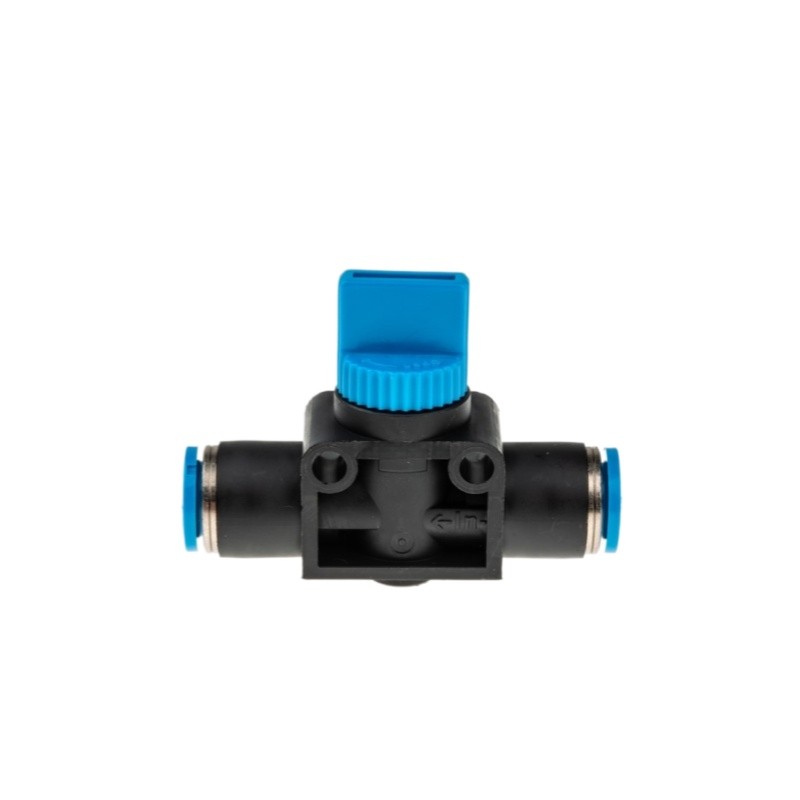

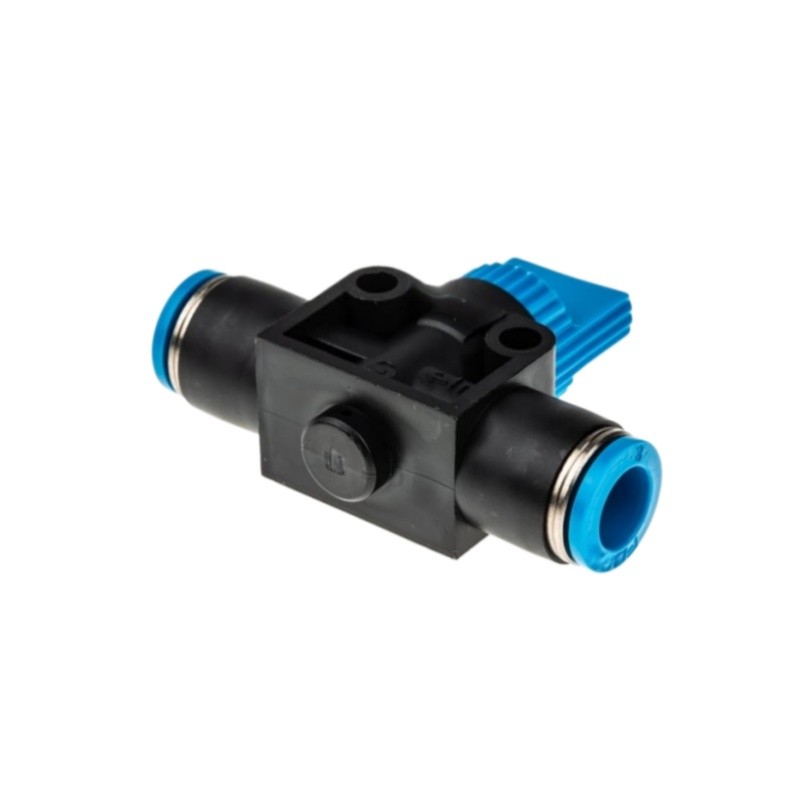

Festo HE-2-QS-8 manual shut-off valve, part number 153473, belongs to HE series inline pneumatic cut-off valves. It is a 2/2-way ball valve with 8mm OD push-in quick connection. The toggle lever design allows operators to manually open or close the air pipeline quickly. The push-in fitting enables convenient tube assembly and disassembly without any tools. Constructed with polypropylene PP housing and NBR seals, it works for compressed air, vacuum and inert gas, pressure range -0.95~10 bar. This compact valve is commonly installed on pneumatic pipelines to isolate air source during equipment maintenance and protect downstream components.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | HE-2-QS-8 |
| Part No. | 153473 |
| Product Series | HE |
| Product Type | Shut-off valve / Manual ball valve |
| Product Function | 2/2-way manual shut-off valve, push-in connection |
| Tube Connection | 8 mm OD tubing |
| Operating Pressure | -0.95 ~ 10 bar |
| Operating Medium | Compressed air, vacuum, inert gas |
| Ambient Temperature | -10 ℃ ~ +60 ℃ |
| Housing Material | Polypropylene PP |
| Seal Material | NBR |
| Operation | Toggle lever, manual on/off |
| Feature | Quick push-in fitting, compact manual shut-off, easy pipeline cut-off |
| Application | Pneumatic pipeline isolation, maintenance cut-off, vacuum circuit manual switch |
| Net Weight | 18 g/pc |
| RoHS Compliance | Yes |
