DFS60B-TEEC00400 1038017
Product Overview

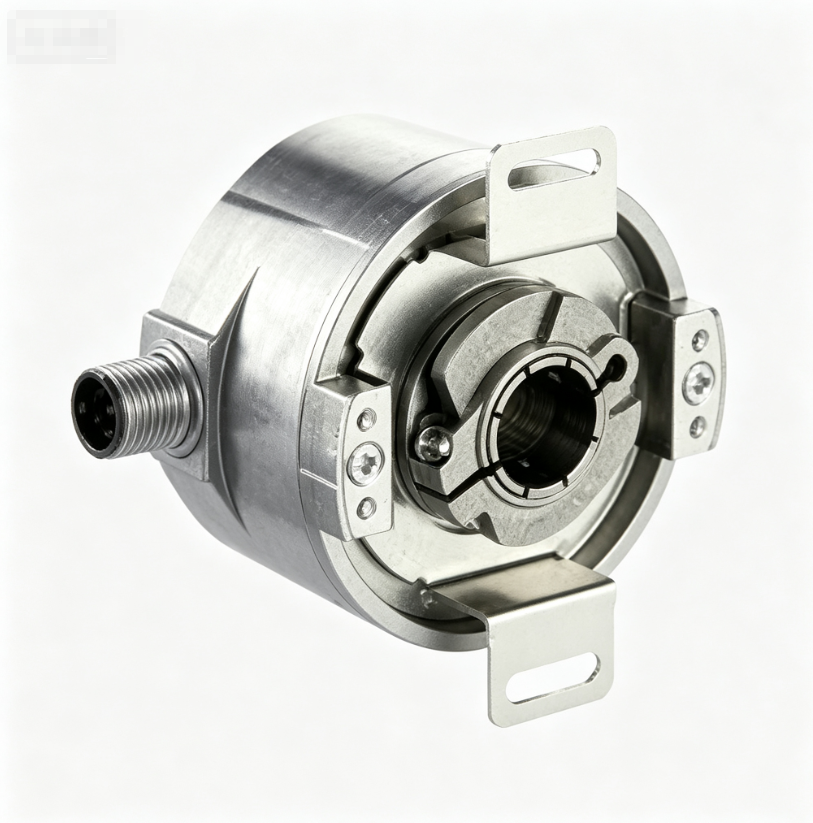

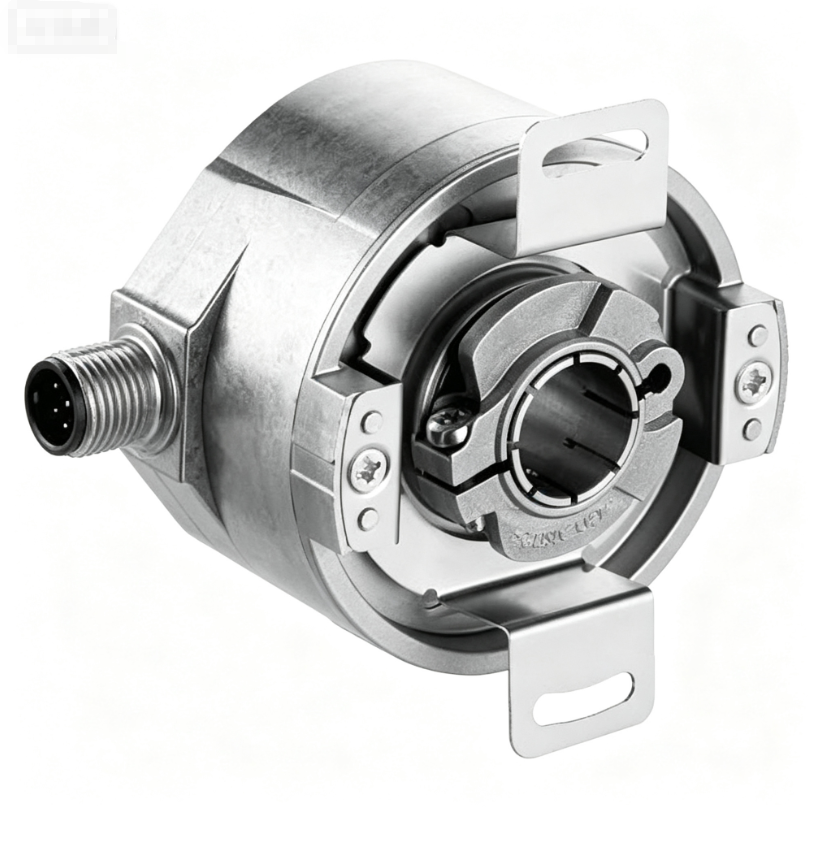

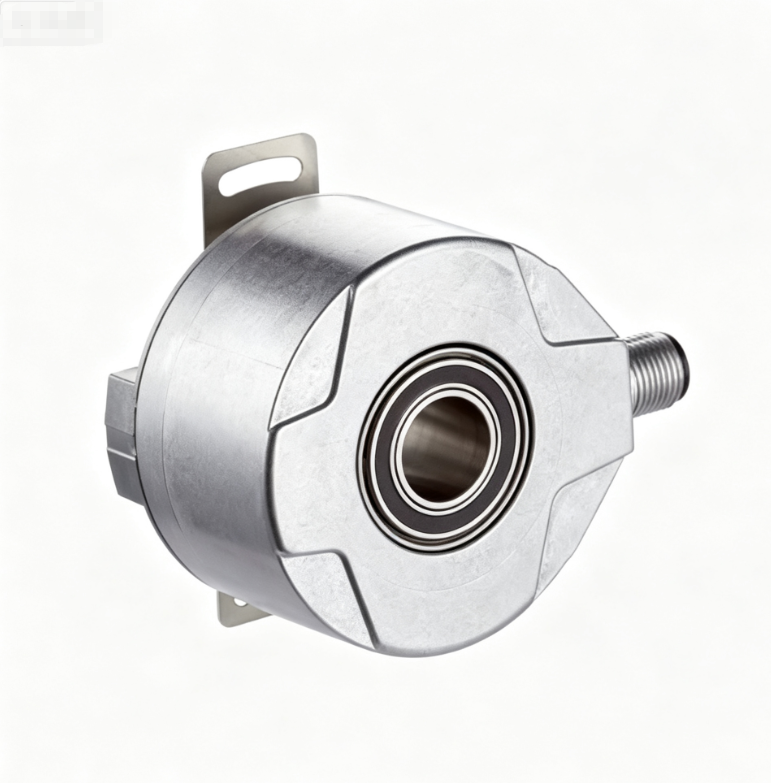

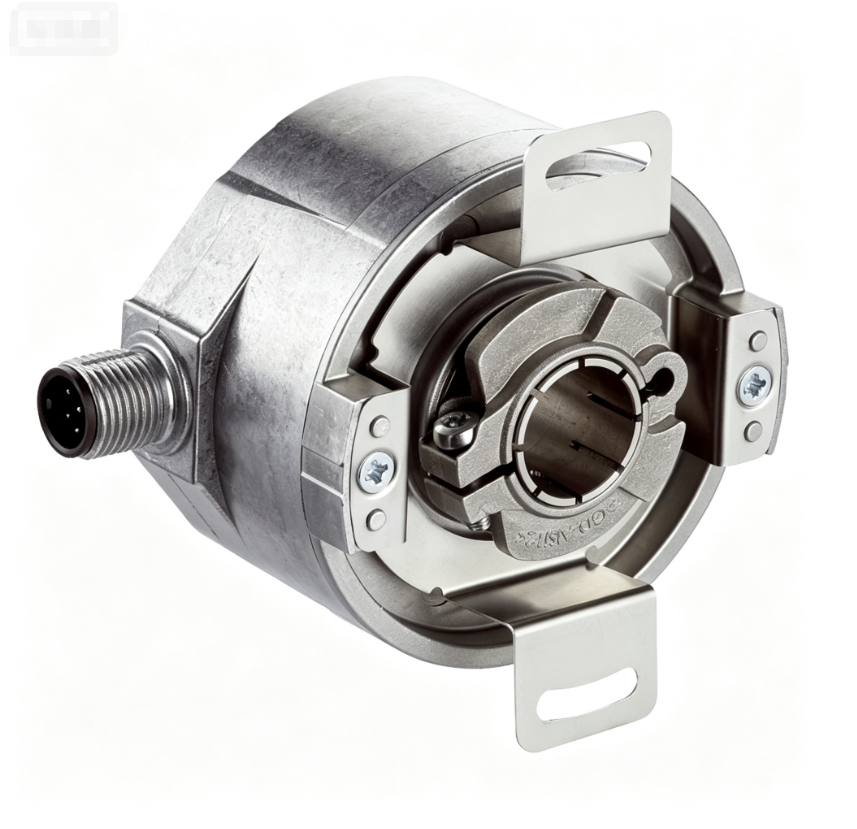

DFS60B-TEEC00400, Order No.1038017, is SICK incremental rotary encoder. Equipped with 12 mm hollow through shaft and 8-pin M12 straight connector, it provides 400 ppr resolution. It adopts RS422 line driver output, supply voltage 4.75~30V DC, maximum rotating speed up to 6000 rpm. Aluminum alloy housing with IP65 protection. It features shock resistance, stable signal transmission and simple installation, suitable for speed measurement and position feedback of automated equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | DFS60B-TEEC00400 |
| Order No. | 1038017 |
| Product Type | Incremental Rotary Encoder |
| Connector Type | M12 Straight, 8 Pin |
| Pin | 8 Pin |
| Sensing Principle | Incremental pulse acquisition |
| Pulse Per Revolution | 400 ppr |
| Shaft Type | Hollow through shaft |
| Shaft Diameter | 12 mm |
| Output Signal | Line driver (RS422) |
| Supply Voltage | 4.75…30 V DC |
| Max Speed | 6000 rpm |
| IP Rating | IP65 |
| Housing Material | Aluminum alloy |
| Operating Temperature | -20℃~+70℃ |
| Feature | Stable signal, shock resistant, hollow through shaft, easy installation |
| Certification | CE |
| Condition | New Original |
| MOQ | 1 Piece |
| Gross Weight | 0.24 KG |
| Net Weight | 0.20 KG |
| Place of Origin | Germany |
