VZBC-40-FF-40-22-F0507-V4V4T-PP60-R-90-C
Product Overview

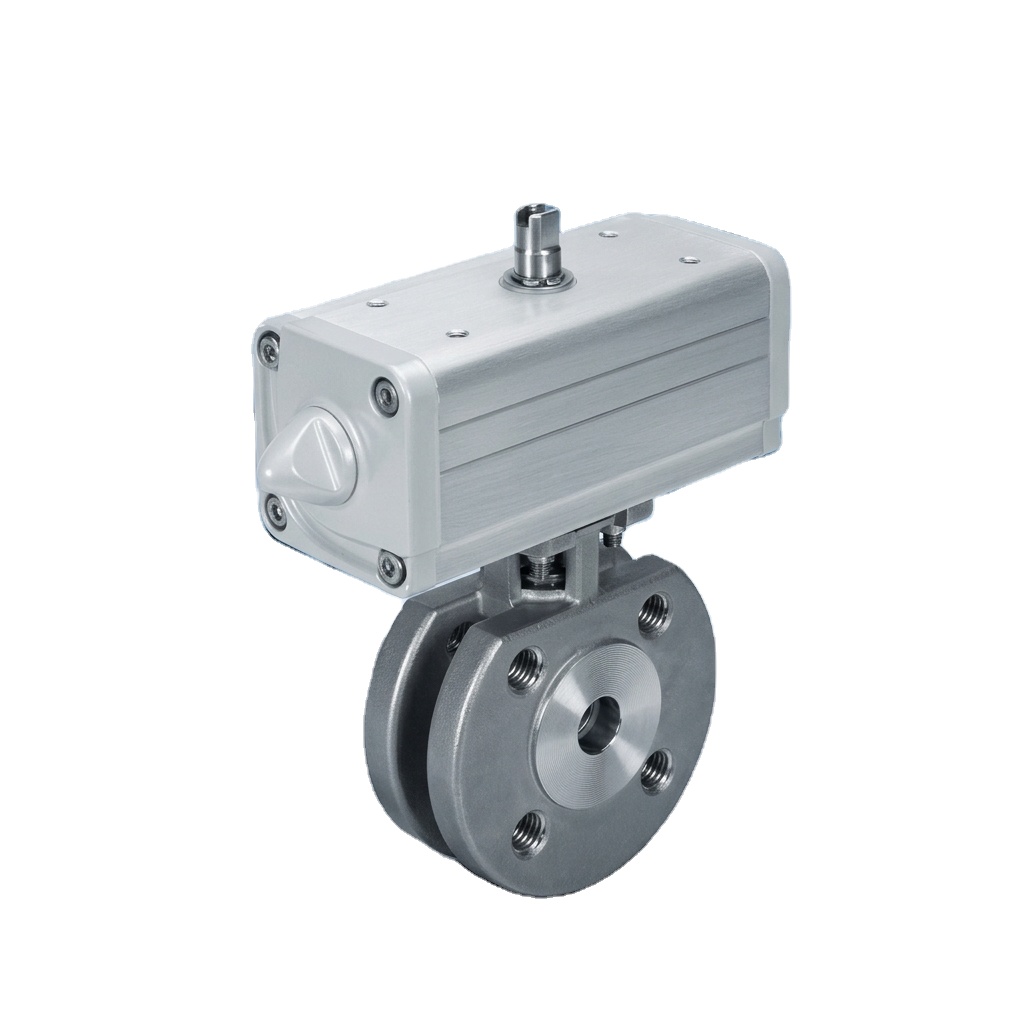

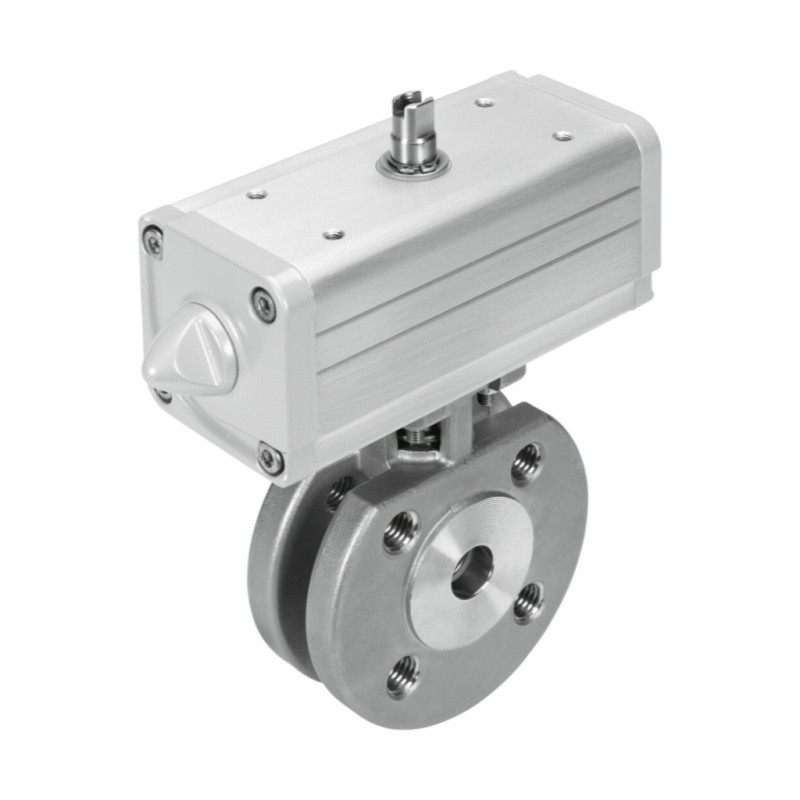

VZBC-40-FF-40-22-F0507-V4V4T-PP60-R-90-C, Part No.1913370, belongs to Festo VZBC series integrated pneumatic ball valve unit. It combines stainless steel flange ball valve and DAPS double-acting 90° rotary actuator. Powered by pilot compressed air to realize quick on/off switching of process pipeline. F0507 ISO5211 mounting pattern and NAMUR interface, convenient to install solenoid valve and position feedback limit switch. With ATEX explosion-proof certification, suitable for gas and neutral liquid pipelines in hazardous environment. Bidirectional flow, visual valve position indicator, any mounting position, widely used for automatic cut-off of process fluid in chemical, water treatment and factory pipeline systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VZBC-40-FF-40-22-F0507-V4V4T-PP60-R-90-C |
| Part No. | 1913370 |
| Type | 2/2-way pneumatic ball valve, double-acting quarter-turn actuator |
| Nominal size | DN40 |
| Valve function | 2/2-way, bidirectional flow |
| Valve connection | FF flange EN1092-1, PN40 |
| Actuator | PP60 DAPS double-acting rotary actuator |
| Actuator mounting pattern | F0507 (ISO5211) |
| Kv value | 170 m³/h |
| Pilot supply pressure | 6 ~ 8.4 bar |
| Nominal pressure PN | 40 bar |
| Process medium | Compressed air, inert gas, water (no steam), neutral liquid |
| Medium temperature | -10 ~ 200 ℃ |
| Ambient temperature | -10 ~ 60 ℃ |
| Material | Valve body:1.4408 stainless steel; Ball/shaft:1.4401 stainless steel; Seat seal: reinforced PTFE |
| Weight | 6400.00 g |
| Feature | 90° rotation double acting actuator, NAMUR interface for solenoid/limit switch, ATEX explosion-proof (Zone1/2,21/22), visual position indicator, any mounting orientation |
| Corrosion resistance class | CRC3 |
| RoHS | Compliant |
| Certificates | CE, ATEX |
