2094782 YF8U13-020UA1XLEAX

属性名称	属性值
Brand	SICK
Model	YF8U13-020UA1XLEAX
Order No.	2094782
Product Type	Sensor Actuator Cable
Connector Type	M8 Female, Straight, A-coded
Pin	3 Pin
Cable Length	2 m
Core	3 Core
Conductor Cross Section	0.14~0.5 mm²
Cable Jacket Material	PUR, Halogen-free
Color	Gray Cable, Black Connector
Locking Nut	Zinc die-cast, nickel-plated
Seal Material	FKM
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.4 Nm
Feature	Drag

INQUIRY

Product Details

Product Tags

Product Overview

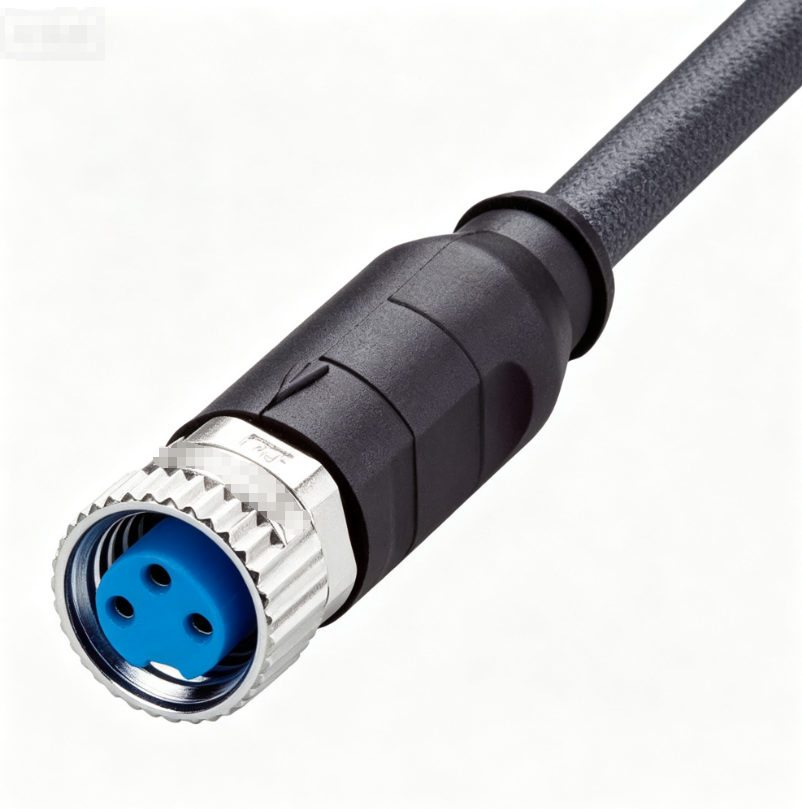

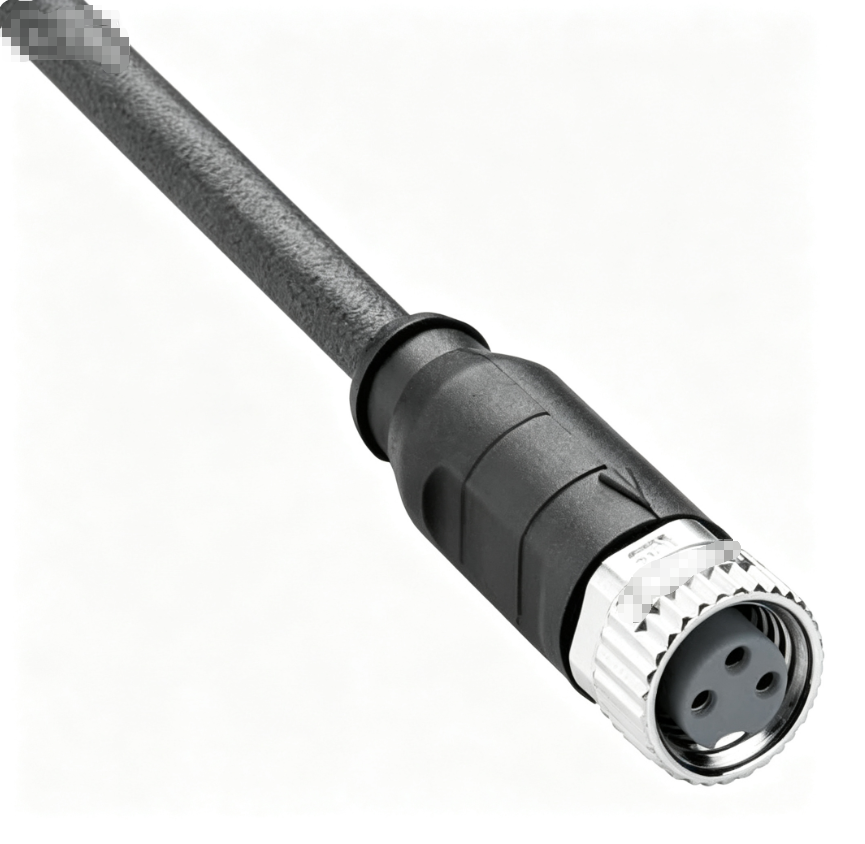

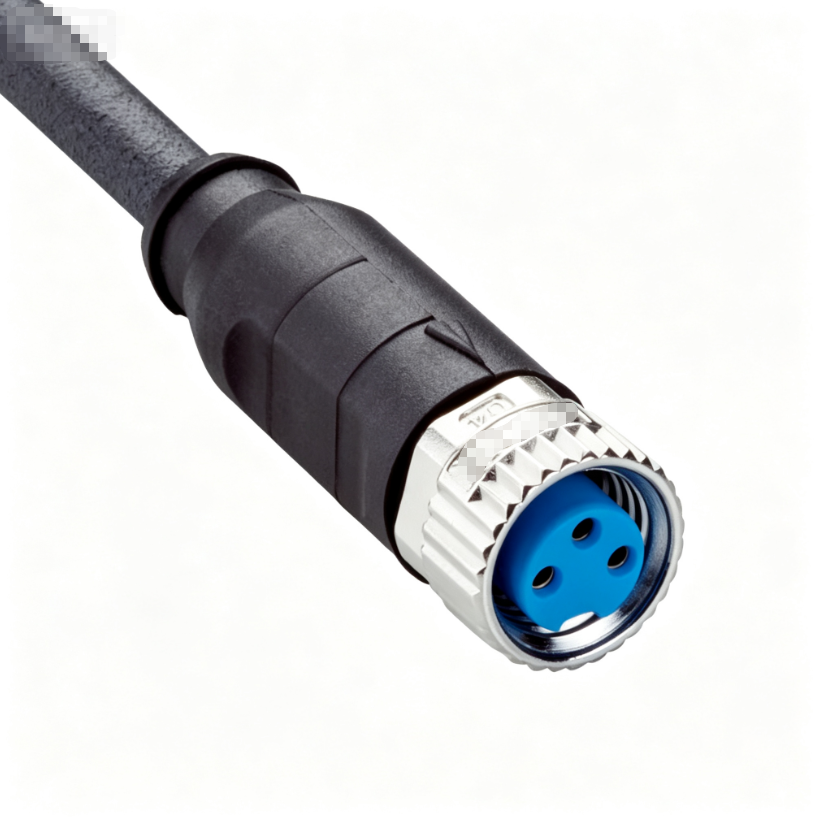

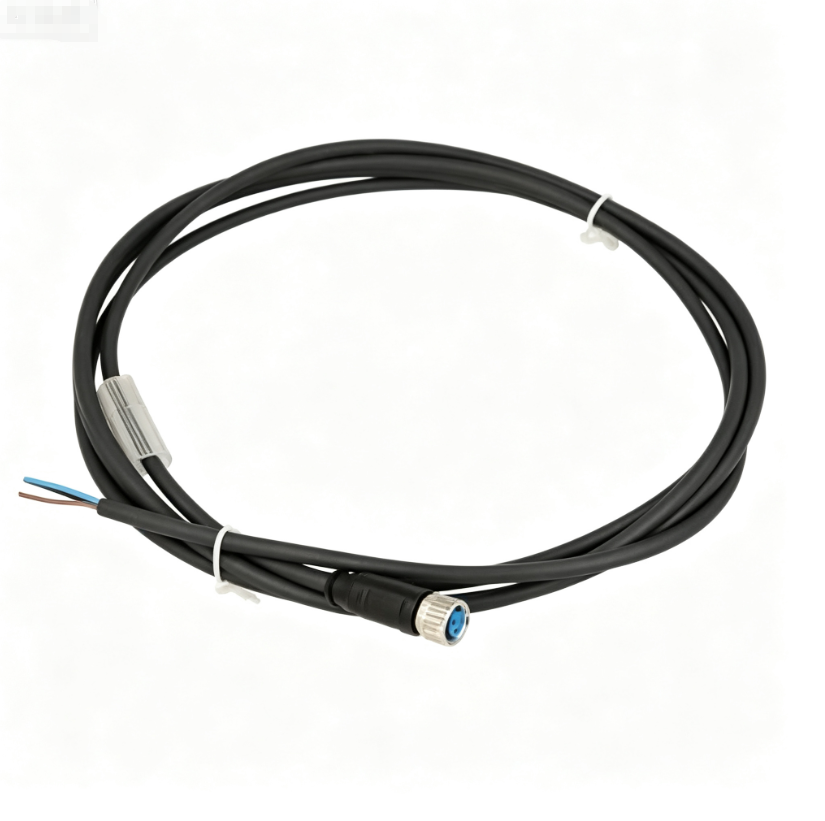

YF8U13-020UA1XLEAX (Part No.2094782) is SICK M8 sensor actuator cable. It adopts 3-pin A-coded straight female connector, cable length 2 meters. The cable uses halogen-free PUR jacket, unshielded structure, oil resistant and suitable for drag chain installation. With IP67 protection, it can deliver stable signal transmission for industrial sensors and actuators in automated machinery.

属性名称	属性值
Brand	SICK
Model	YF8U13-020UA1XLEAX
Order No.	2094782
Product Type	Sensor Actuator Cable
Connector Type	M8 Female, Straight, A-coded
Pin	3 Pin
Cable Length	2 m
Core	3 Core
Conductor Cross Section	0.14~0.5 mm²
Cable Jacket Material	PUR, Halogen-free
Color	Gray Cable, Black Connector
Locking Nut	Zinc die-cast, nickel-plated
Seal Material	FKM
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.4 Nm
Feature	Drag chain suitable, Oil resistant
Operating Temperature	Fixed: -40℃~+80℃, Flexible/Drag chain: -25℃~+80℃, Connector: -25℃~+85℃
Certification	UL
Condition	New Original
MOQ	1 Piece
Gross Weight	0.08 KG
Net Weight	0.06 KG
Place of Origin	Germany
