SPAN-P10R-G18M-PNLK-PNVBA-L1
Product Overview

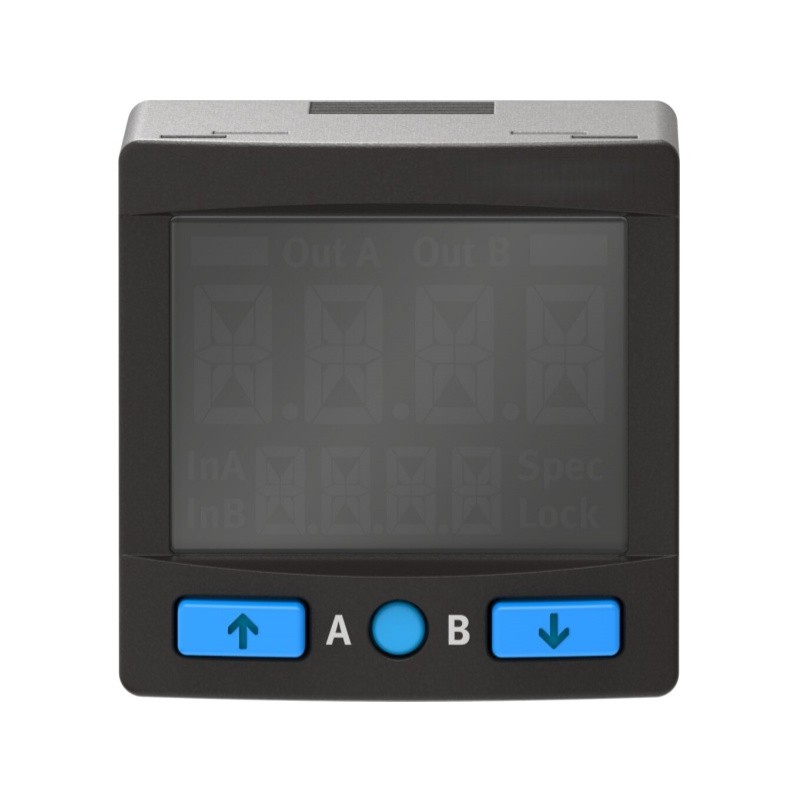

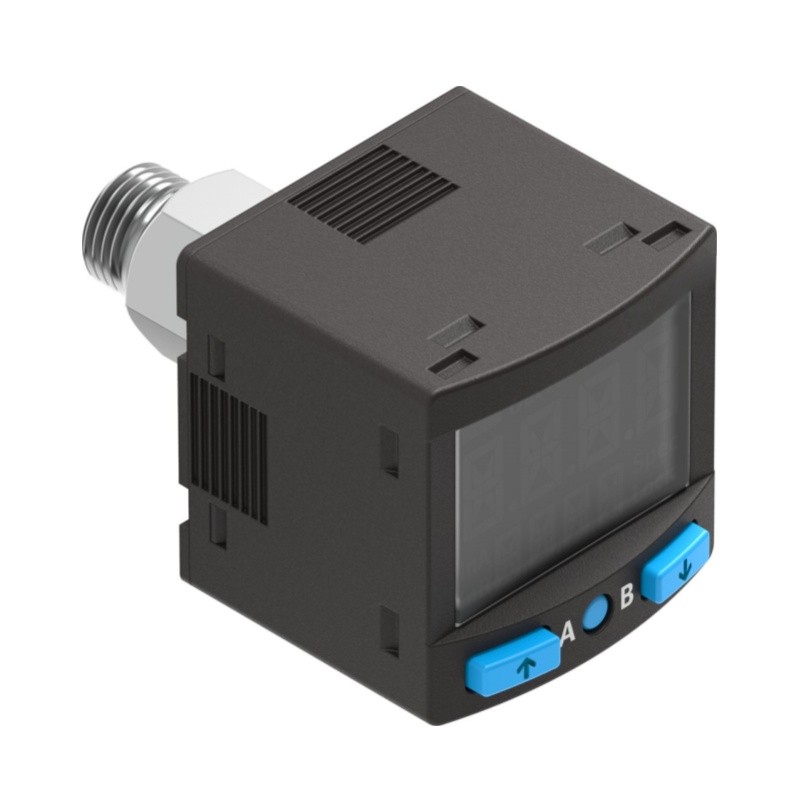

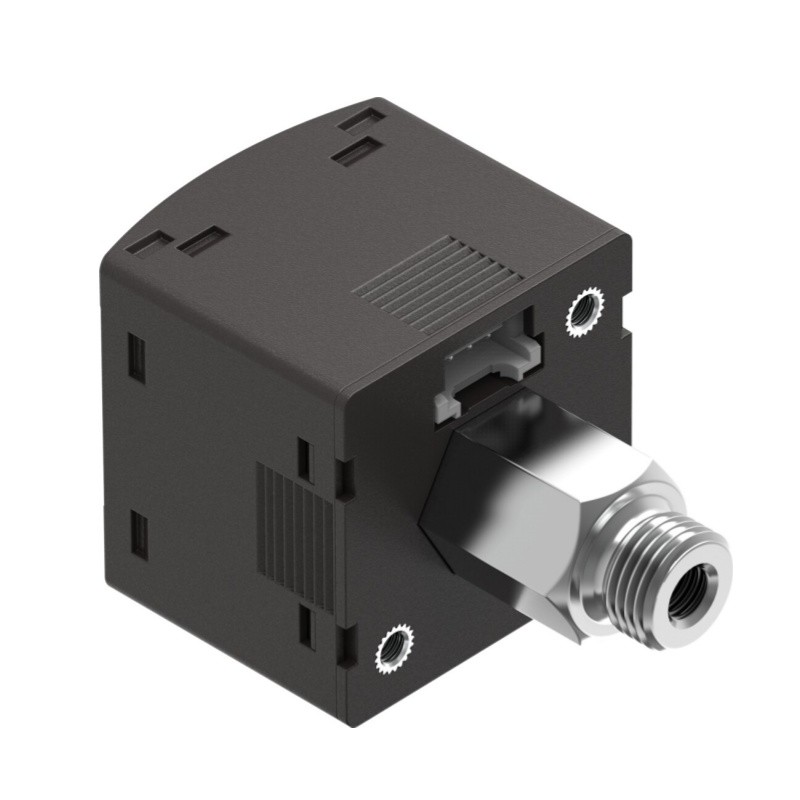

SPAN-P10R-G18M-PNLK-PNVBA-L1, Part No.8035533, belongs to Festo SPAN series compact digital pressure sensor. It adopts piezoresistive measuring cell to detect relative pressure of compressed air and non-corrosive gas. It supports dual switch outputs, multi-type analog signals and IO-Link communication for data reading and parameter setting. Blue backlit dual-line display can show real-time pressure value and set parameters. Multiple switching functions including threshold comparator and window comparator, widely used for pneumatic pressure monitoring, leak detection and pressure feedback on automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | SPAN-P10R-G18M-PNLK-PNVBA-L1 |
| Part No. | 8035533 |
| Type | Digital pressure sensor, relative pressure |
| Measuring range | 0 ~ 10 bar |
| Pneumatic port | G1/8 male thread |
| Accuracy | ±1.5 %FS |
| Repeat accuracy | ±0.3 %FS |
| Output | 2×switchable PNP/NPN; analog output:0-10V/1-5V/4-20mA; IO-Link V1.1 COM2 |
| Max output current | 100mA |
| Supply voltage | DC 15 ~ 30V |
| Working medium | Compressed air, non-corrosive gas |
| Medium & ambient temperature | 0 ~ 50 ℃ |
| Protection class | IP40 |
| Material | Housing: reinforced PA; Wetted parts: high-alloy stainless steel, FPM |
| Weight | 46.00 g |
| Feature | Blue backlit 2-line display, switch NC/NO, window comparator & threshold monitoring, short-circuit & reverse polarity protection, compact 30×30mm body |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
