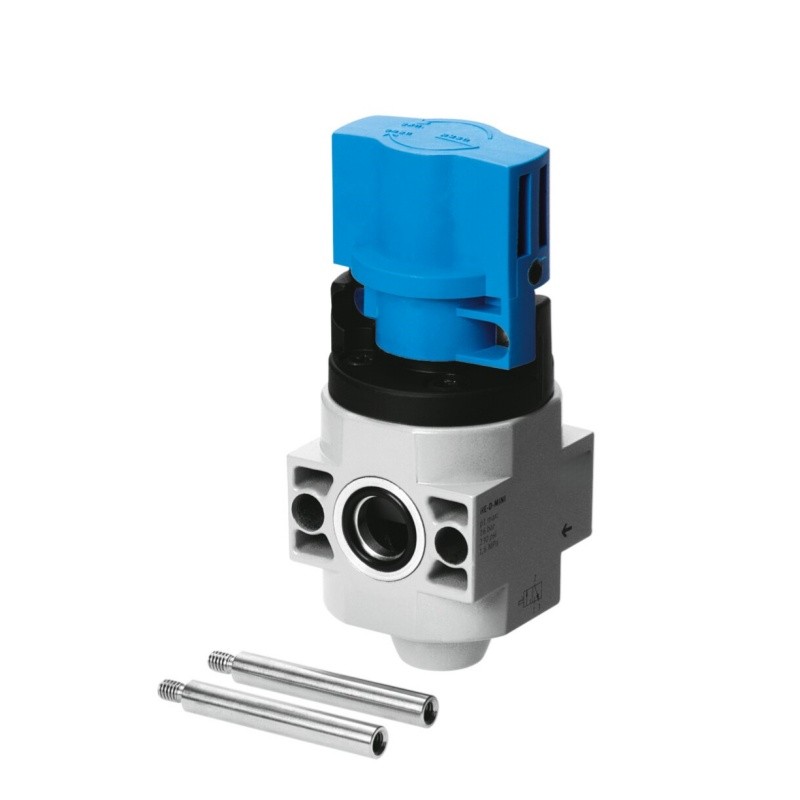

HE-D-MIDI
Product Overview
HE-D-MIDI, Part No.170682, belongs to Festo D-MIDI modular air preparation system. It is a manual rotary on-off valve with soft start function. When opening, air pressure slowly builds up to avoid sudden impact on downstream pneumatic components. When closing, the downstream air circuit will be automatically vented for safe maintenance. Lockable handwheel prevents accidental operation. Modular stacking design, can be assembled with D-MIDI filter, regulator and branch modules to build integrated air service unit. Widely used as safety cut-off valve for pneumatic stations.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | HE-D-MIDI |
| Part No. | 170682 |
| Type | On-off valve, D-MIDI air service unit |
| Port size | G1/4 |
| Nominal flow rate | 2200 l/min |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 0 ~ 16 bar |
| Temperature range | -10 ~ 60 ℃ |
| Material | Housing: Zinc die casting, Seal: NBR |
| Weight | 240.00 g |
| Feature | Modular stacking for D-MIDI series, manual rotary operation, soft start function, lockable handwheel, depressurization when shut off |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
