2094788 YF8U13-050UA1XLEAX
Product Overview

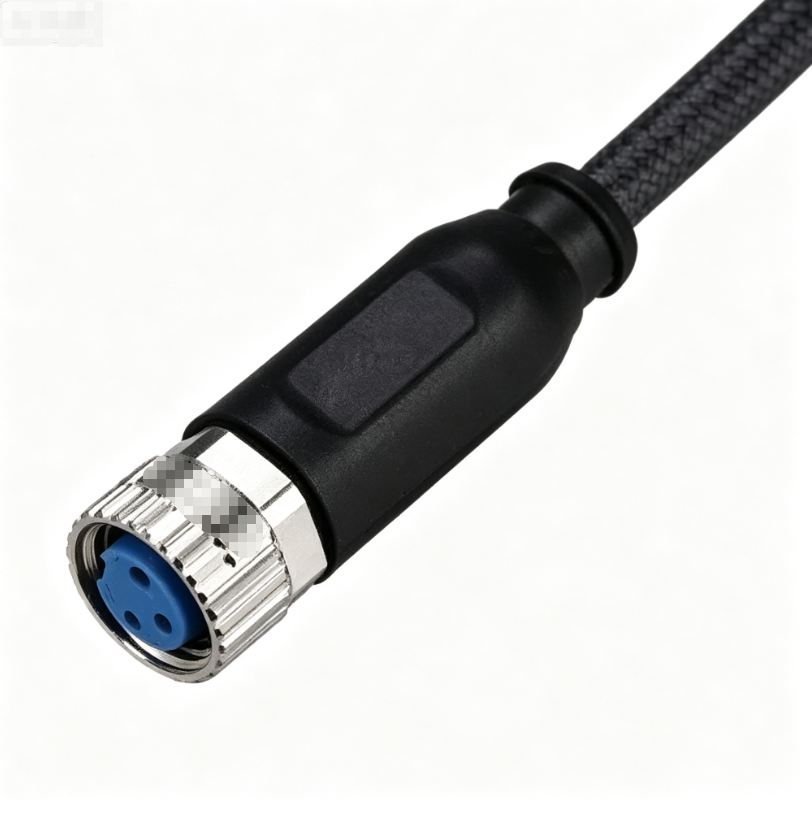

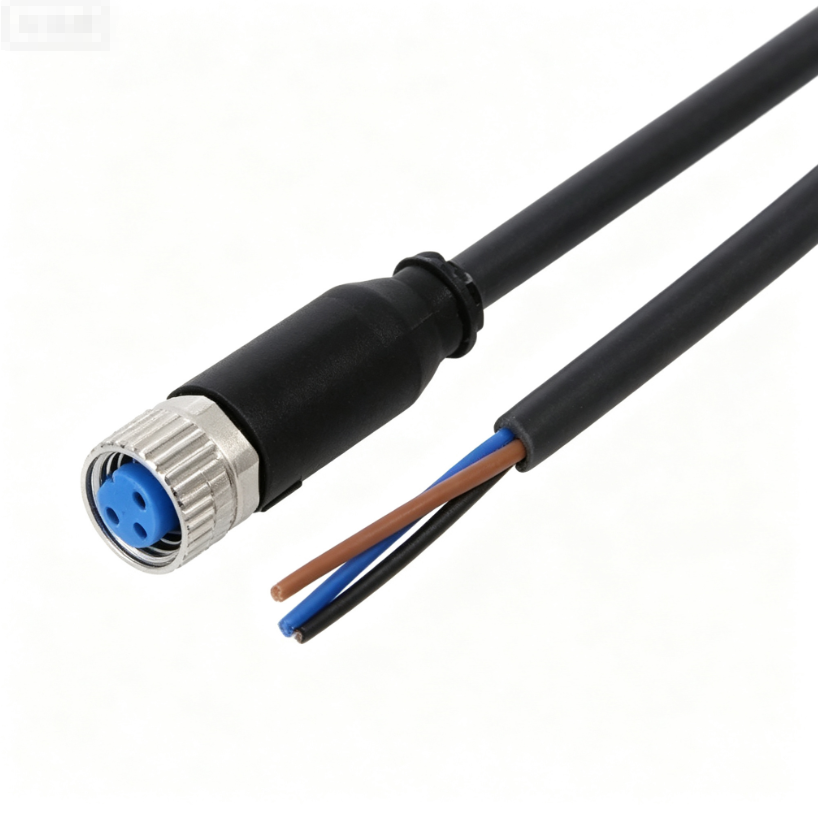

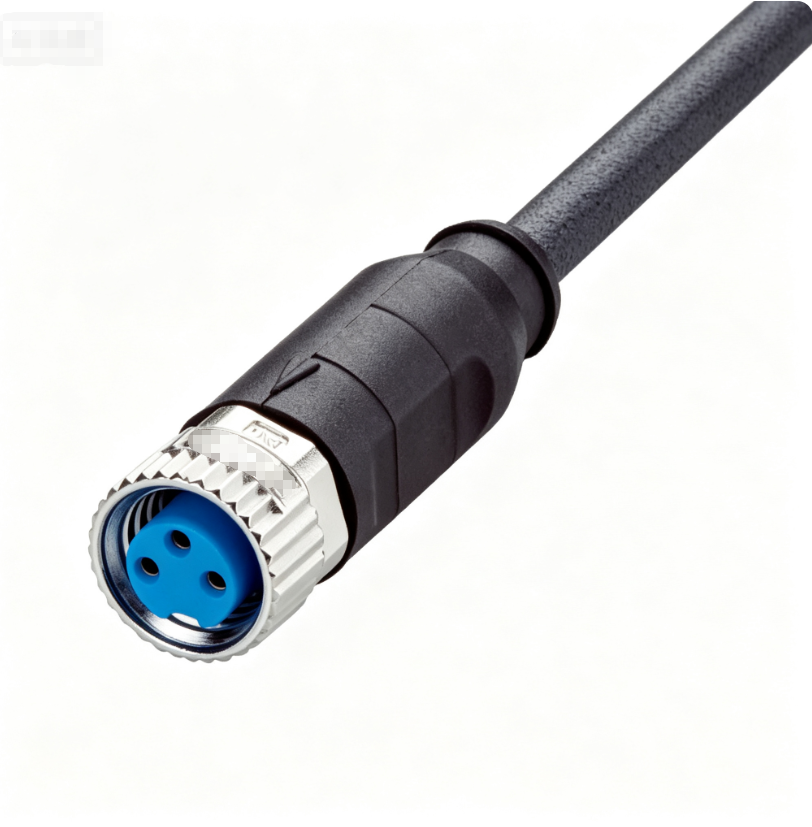

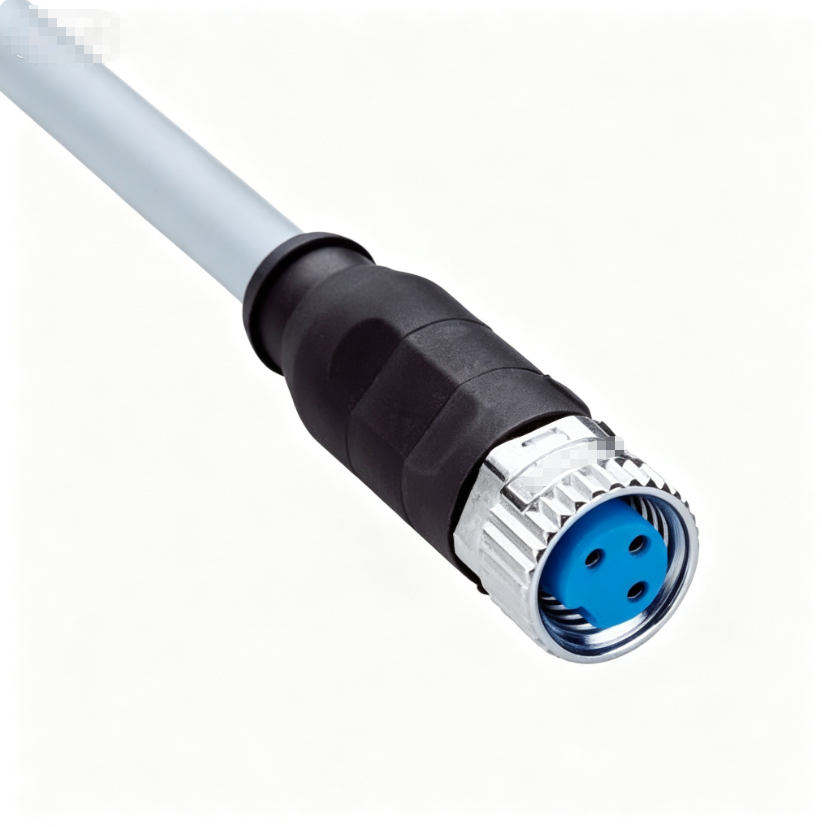

YF8U13-050UA1XLEAX (Part No.2094788) is SICK M8 sensor actuator cable. It comes with 3-pin A-coded straight female connector, cable length of 5 meters. Adopting halogen-free PUR jacket, unshielded construction. It is oil resistant and supports high bending cycles, specially designed for drag chain applications. IP67 protection ensures stable signal transmission for sensors and actuators in factory automation and mechanical equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | YF8U13-050UA1XLEAX |
| Order No. | 2094788 |
| Product Type | Sensor Actuator Cable |
| Connector Type | M8 Female, Straight, A-coded |
| Pin | 3 Pin |
| Cable Length | 5 m |
| Core | 3 Core |
| Conductor Cross Section | 0.25 mm² |
| Cable Jacket Material | PUR, Halogen-free |
| Color | Black Cable, Black Connector |
| Locking Nut | Zinc die-cast, nickel-plated |
| Seal Material | FKM |
| Shielding | Unshielded |
| Rated Voltage | ≤60 V DC |
| Rated Current | 4 A |
| IP Rating | IP65 / IP66K / IP67 |
| Tightening Torque | 0.4 Nm |
| Feature | Drag chain suitable, Oil resistant, high bending cycles |
| Cable Diameter | 4.1 mm |
| Operating Temperature | Fixed: -40℃~+80℃, Flexible/Drag chain: -25℃~+80℃, Connector: -25℃~+85℃ |
| Certification | UL |
| Condition | New Original |
| MOQ | 1 Piece |
| Gross Weight | 0.12 KG |
| Net Weight | 0.10 KG |
| Place of Origin | Germany |
