YF2A14-015VB3M2A14

属性名称	属性值
Brand	SICK
Model	YF2A14-015VB3M2A14
Order No.	YF2A14-015VB3M2A14
Product Type	Sensor Actuator Cable
Connector Type	M12 Female Straight 4Pin to M12 Male Straight 4Pin, A-coded
Pin	4 Pin
Core	4 Core
Conductor Cross Section	0.34 mm²
Cable Length	1.5 m
Cable Jacket Material	PUR, Halogen-free
Color	Gray
Locking Nut	Nickel-plated zinc die-cast
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag cha

INQUIRY

Product Details

Product Tags

Product Overview

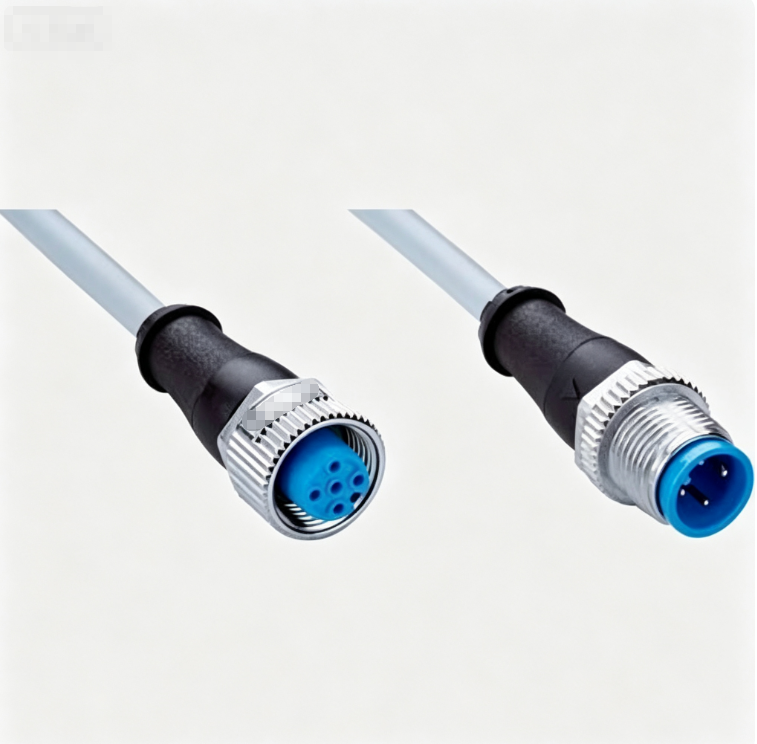

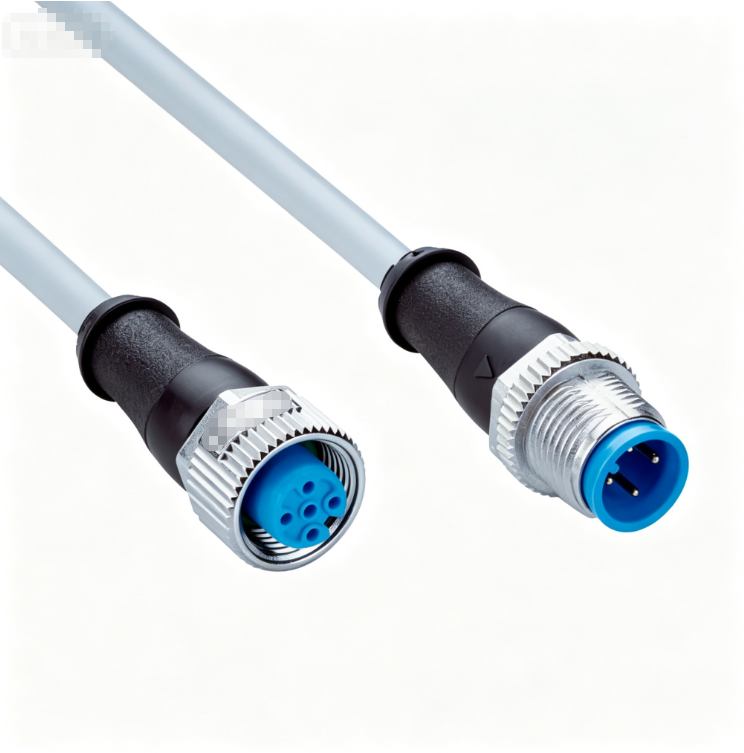

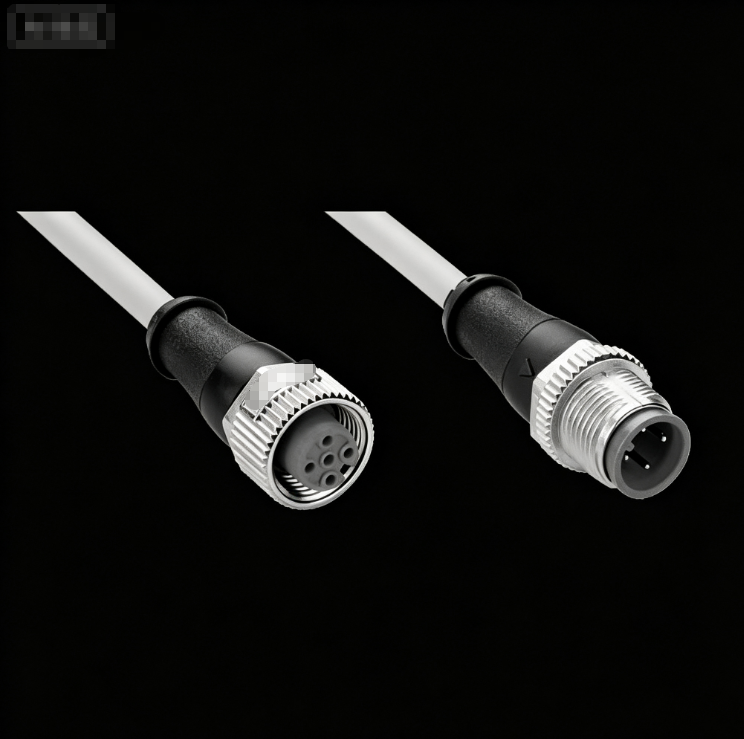

YF2A14-015VB3M2A14 is SICK M12 double-ended sensor actuator cable. It features 4-pin A-coded connector, one end is M12 straight female connector and the other end is M12 straight male connector, cable length of 1.5 meters. This cable adopts halogen-free PUR jacket, unshielded structure, oil resistant and suitable for drag chain wiring. With IP67 protection, it provides stable signal transmission for sensors and actuators in automated machinery and production systems.

属性名称	属性值
Brand	SICK
Model	YF2A14-015VB3M2A14
Order No.	YF2A14-015VB3M2A14
Product Type	Sensor Actuator Cable
Connector Type	M12 Female Straight 4Pin to M12 Male Straight 4Pin, A-coded
Pin	4 Pin
Core	4 Core
Conductor Cross Section	0.34 mm²
Cable Length	1.5 m
Cable Jacket Material	PUR, Halogen-free
Color	Gray
Locking Nut	Nickel-plated zinc die-cast
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resistant
Operating Temperature	Fixed: -40℃~+80℃; Drag chain: -25℃~+80℃; Connector: -25℃~+85℃
Certification	UL
Condition	New Original
MOQ	1 Piece
Gross Weight	0.09 KG
Net Weight	0.07 KG
Place of Origin	Germany
