2095795 YG2A25-200UB6XLEAX

属性名称	属性值
Brand	SICK
Model	YG2A25-200UB6XLEAX
Order No.	2095795
Product Type	Sensor Actuator Cable
Connector Type	M12 Female, Right Angle, A-coded, open wire end
Pin	5 Pin
Core	5 Core
Conductor Cross Section	0.34 mm²
Cable Length	20 m
Cable Jacket Material	PUR, Halogen-free
Color	Black
Locking Nut	Nickel-plated zinc die-cast
Shielding	Shielded
Rated Voltage	≤300 V AC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resista

INQUIRY

Product Details

Product Tags

Product Overview

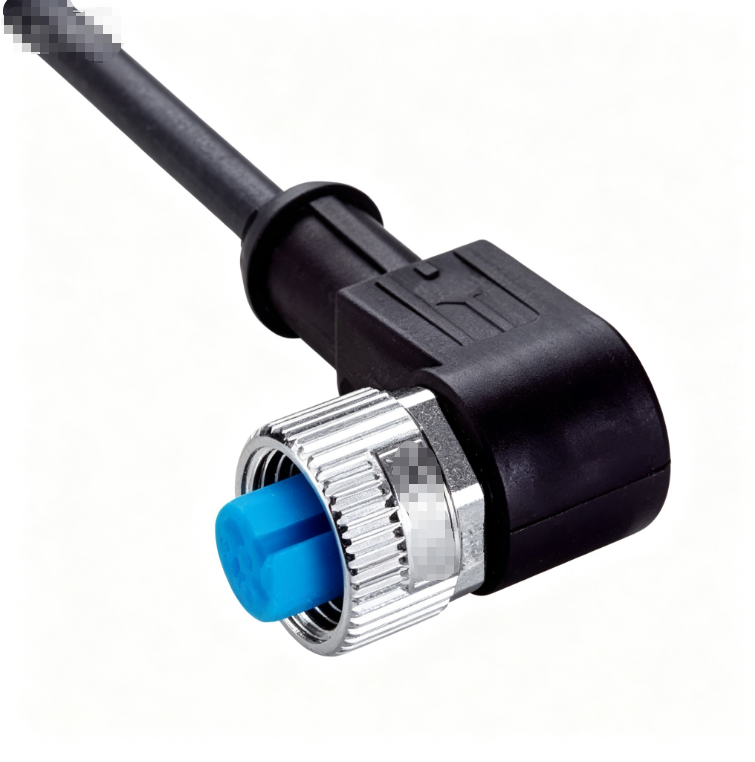

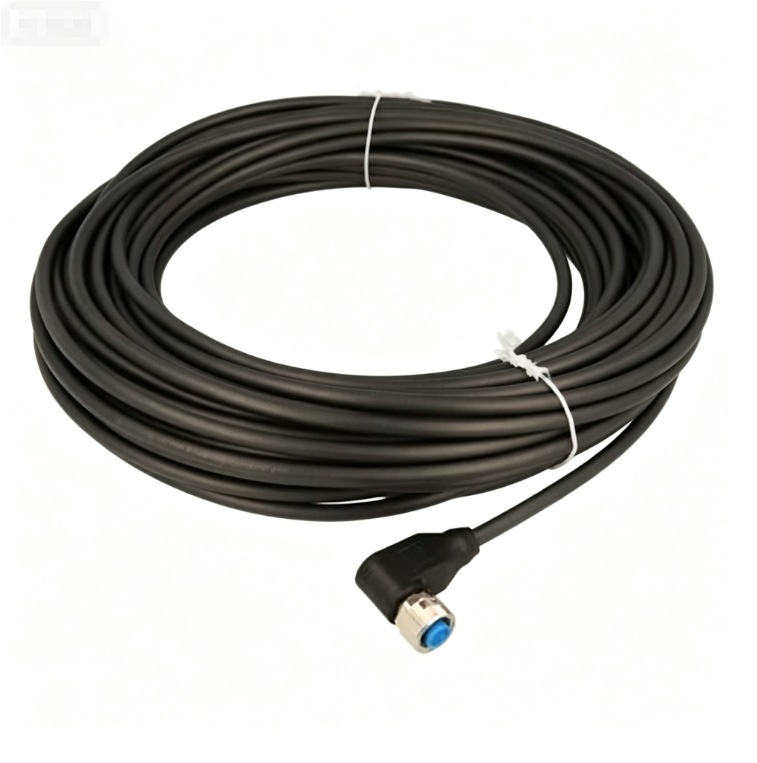

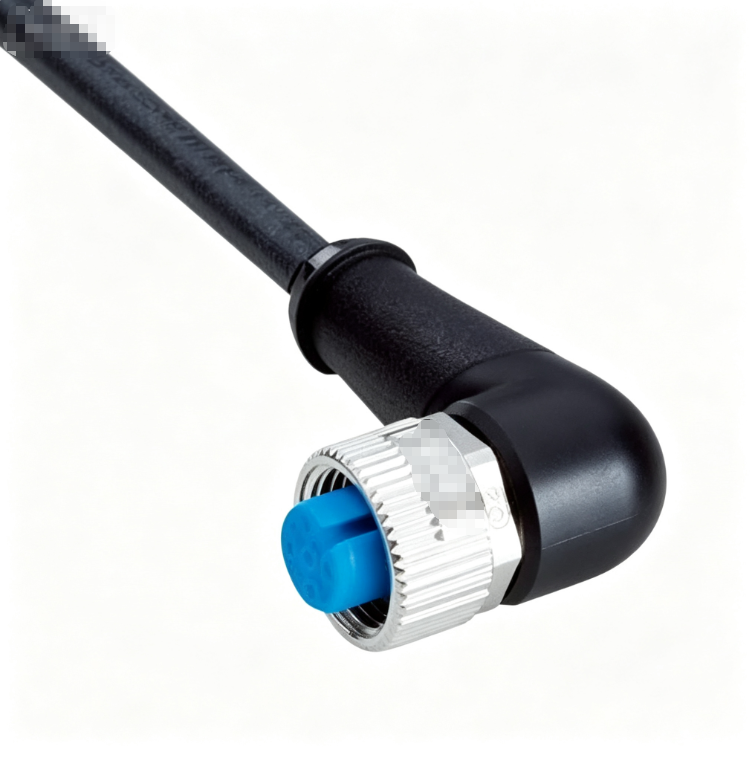

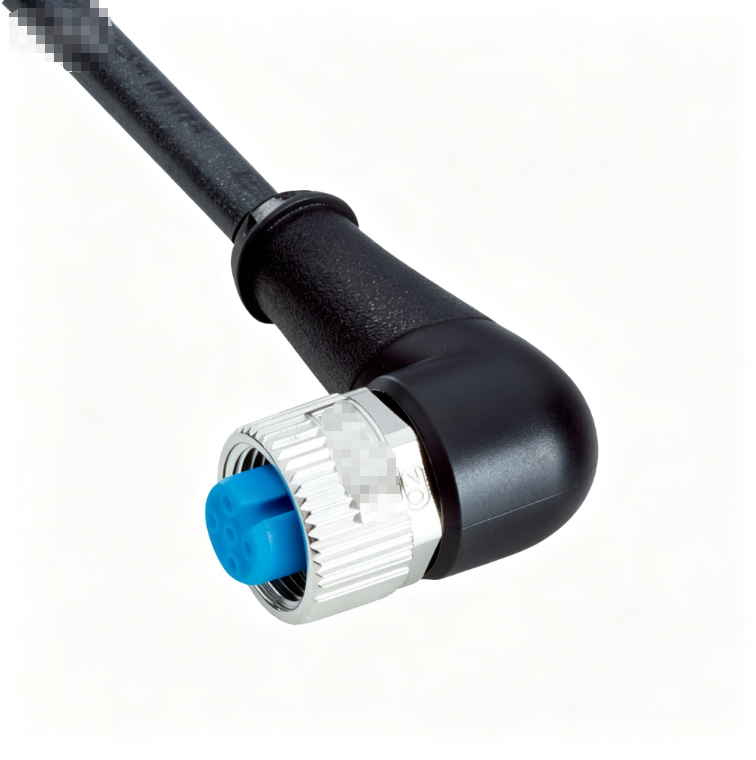

YG2A25-200UB6XLEAX (Part No.2095795) is SICK M12 sensor actuator cable. Equipped with 5-pin A-coded right angle female connector, the other end is open wire end, cable length of 20 meters. This cable adopts halogen-free PUR jacket, shielded structure, oil resistant and suitable for drag chain wiring. With IP67 protection, it provides stable anti-interference signal transmission for sensors and actuators in automated machinery and production systems.

属性名称	属性值
Brand	SICK
Model	YG2A25-200UB6XLEAX
Order No.	2095795
Product Type	Sensor Actuator Cable
Connector Type	M12 Female, Right Angle, A-coded, open wire end
Pin	5 Pin
Core	5 Core
Conductor Cross Section	0.34 mm²
Cable Length	20 m
Cable Jacket Material	PUR, Halogen-free
Color	Black
Locking Nut	Nickel-plated zinc die-cast
Shielding	Shielded
Rated Voltage	≤300 V AC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resistant
Operating Temperature	Fixed: -40℃~+80℃; Drag chain: -25℃~+80℃; Connector: -25℃~+85℃
Certification	UL
Condition	New Original
MOQ	1 Piece
Gross Weight	0.42 KG
Net Weight	0.39 KG
Place of Origin	Germany
