6058478 DOL-1204-G10MRN

属性名称	属性值
Brand	SICK
Model	DOL-1204-G10MRN
Order No.	6058478
Product Type	Sensor Actuator Cable
Connector Type	M12 Male, Right Angle, A-coded
Pin	4 Pin
Core	4 Core
Conductor Cross Section	0.34 mm²
Cable Length	10 m
Cable Jacket Material	PUR, Halogen-free
Color	Gray
Locking Nut	Nickel-plated zinc die-cast
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resistant
Operating Temper

INQUIRY

Product Details

Product Tags

Product Overview

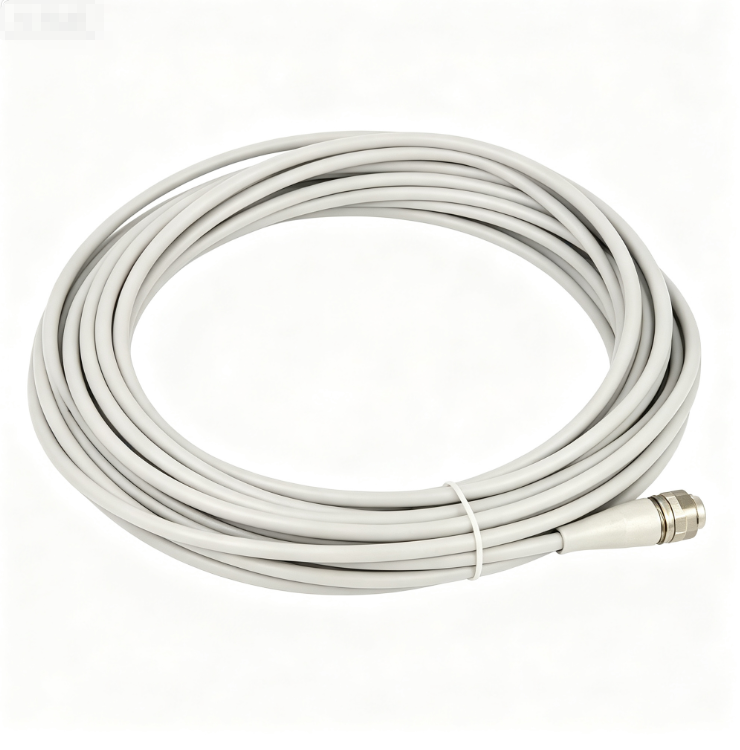

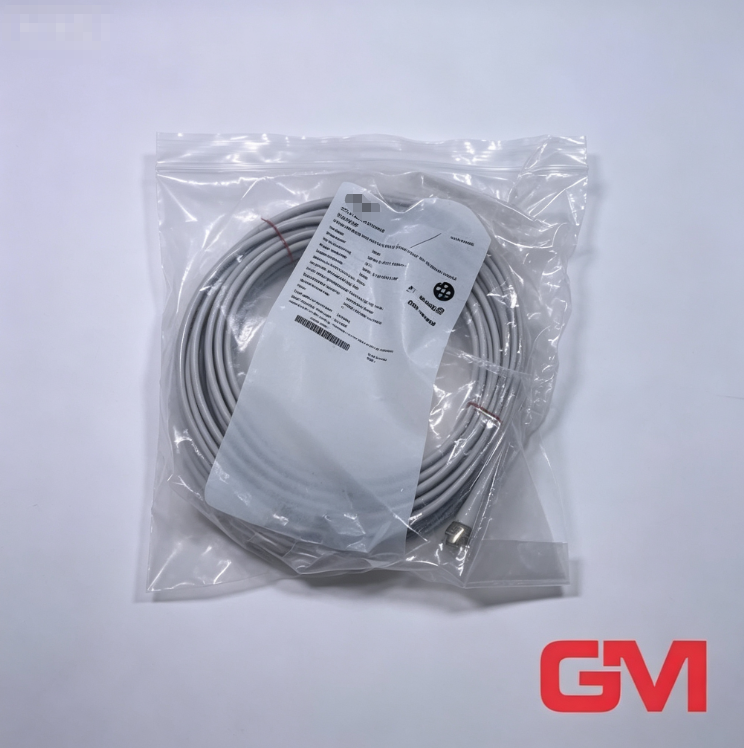

DOL-1204-G10MRN (Part No.6058478) is SICK M12 sensor actuator cable. Equipped with 4-pin A-coded right angle male connector, cable length of 10 meters. This cable adopts halogen-free PUR jacket, unshielded structure, oil resistant and suitable for drag chain wiring. With IP67 protection, it provides stable signal transmission for sensors and actuators in automated machinery and production systems.

属性名称	属性值
Brand	SICK
Model	DOL-1204-G10MRN
Order No.	6058478
Product Type	Sensor Actuator Cable
Connector Type	M12 Male, Right Angle, A-coded
Pin	4 Pin
Core	4 Core
Conductor Cross Section	0.34 mm²
Cable Length	10 m
Cable Jacket Material	PUR, Halogen-free
Color	Gray
Locking Nut	Nickel-plated zinc die-cast
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resistant
Operating Temperature	Fixed: -40℃~+80℃; Drag chain: -25℃~+80℃; Connector: -25℃~+85℃
Certification	UL
Condition	New Original
MOQ	1 Piece
Gross Weight	0.20 KG
Net Weight	0.17 KG
Place of Origin	Germany
