DPZJ-10-25-P-A-S2
Product Description

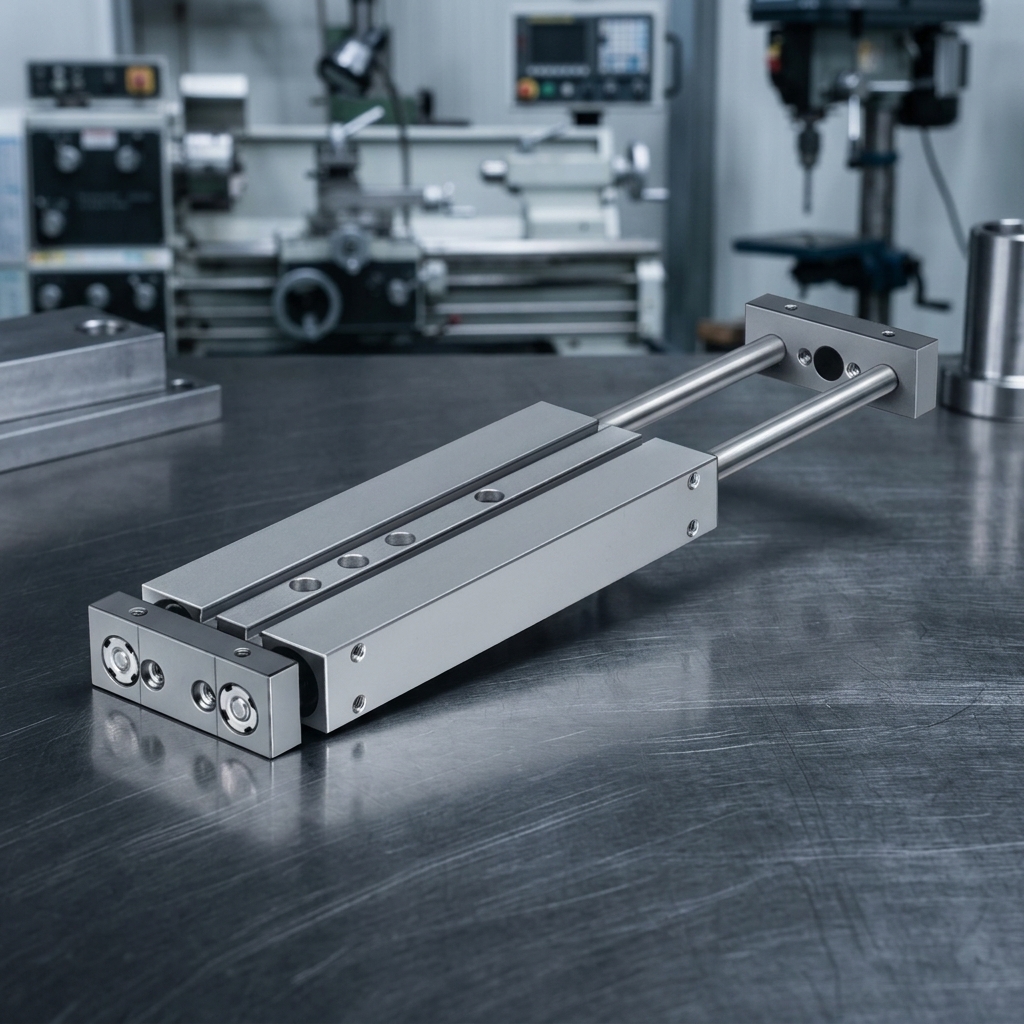

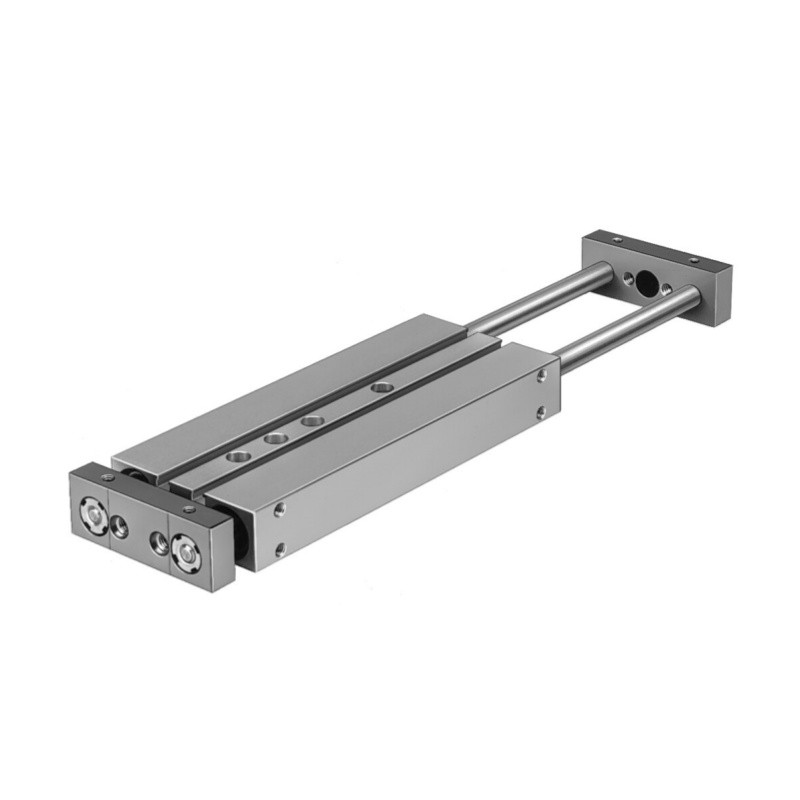

Festo DPZJ-10-25-P-A-S2 (Part No.159941) is DPZJ series twin-piston yoke cylinder. It adopts two parallel double-ended piston rods connected by yoke plate, delivering high thrust and strong anti-torsion capability. Bore 10mm, stroke 25mm, with 10mm adjustable end-position range.
M5 air port, working pressure 0.25~1.0 MPa, max speed 1m/s. Elastic cushion rings fitted at both ends to reduce impact. Plain bearing guide ensures smooth linear movement. Support proximity switch for position detection. Aluminum alloy body, high alloy stainless steel piston rod and NBR seals, stable performance for long-time continuous operation in pneumatic automation systems.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | DPZJ-10-25-P-A-S2 |
| Part Number | 159941 |
| Type | Twin-piston yoke cylinder, double acting |
| Series | DPZJ |
| Bore | 10 mm |
| Stroke | 25 mm |
| Adjustable End Position | 10 mm |
| Pneumatic Port | M5 |
| Operating Pressure | 0.25 ~ 1.0 MPa |
| Theoretical Force (6bar) | 60 N advance / 60 N retract |
| Max Speed | 1 m/s |
| Medium | Compressed air ISO 8573-1 [7:4:4] |
| Ambient Temp | -20 ~ +80 ℃ |
| Guide | Plain-bearing guide |
| Weight | 408.00 g |
| Material | Wrought aluminium alloy, NBR seal |
| Corrosion Class | CRC2 |
| Standard | LABS, RoHS |
