1048542 WL11-2P2432

属性项	参数
Brand	SICK
Model	WL11-2P2432
Order No.	1048542
Product Type	Retro-reflective Photoelectric Sensor
Sensing Principle	Retro-reflective, Dual lens
Sensing Range	0.15 ~ 10 m
Output Type	PNP
Supply Voltage	10~30V DC
Connection	M12 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP66,IP67,IP69K
Light Source	Red LED,640nm
Size	15.6 × 48.5 × 42 mm
Response Time	≤2.5ms
Max Output Current	100mA
Operating Temp	-30℃ ~ +60℃
Net Weight	0.05kg
Gross Weight	0.08kg
Ce

INQUIRY

Product Details

Product Tags

Product Overview

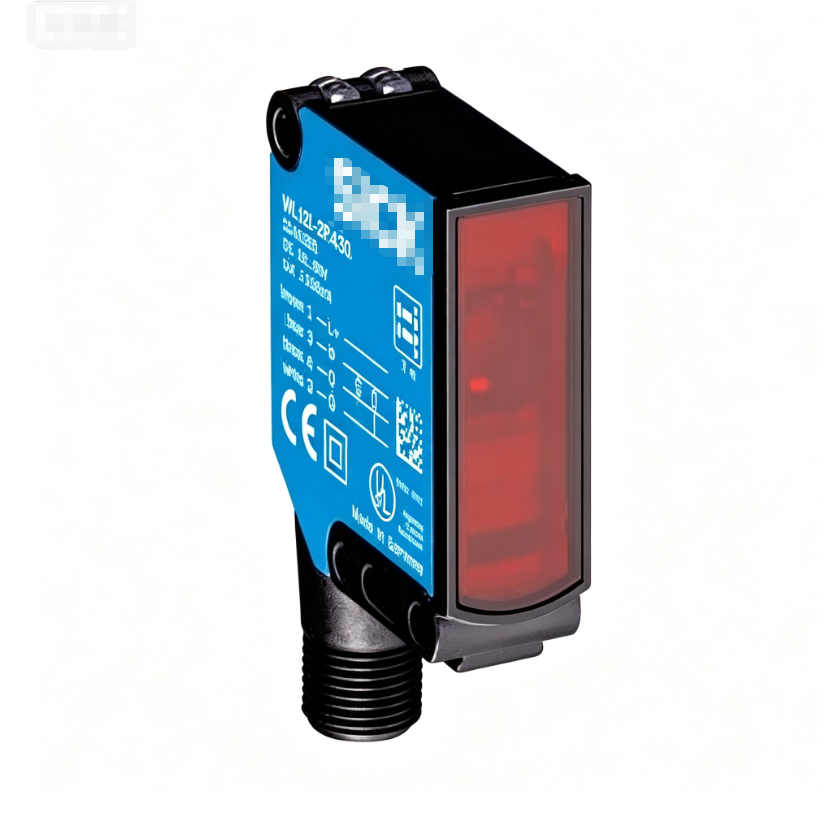

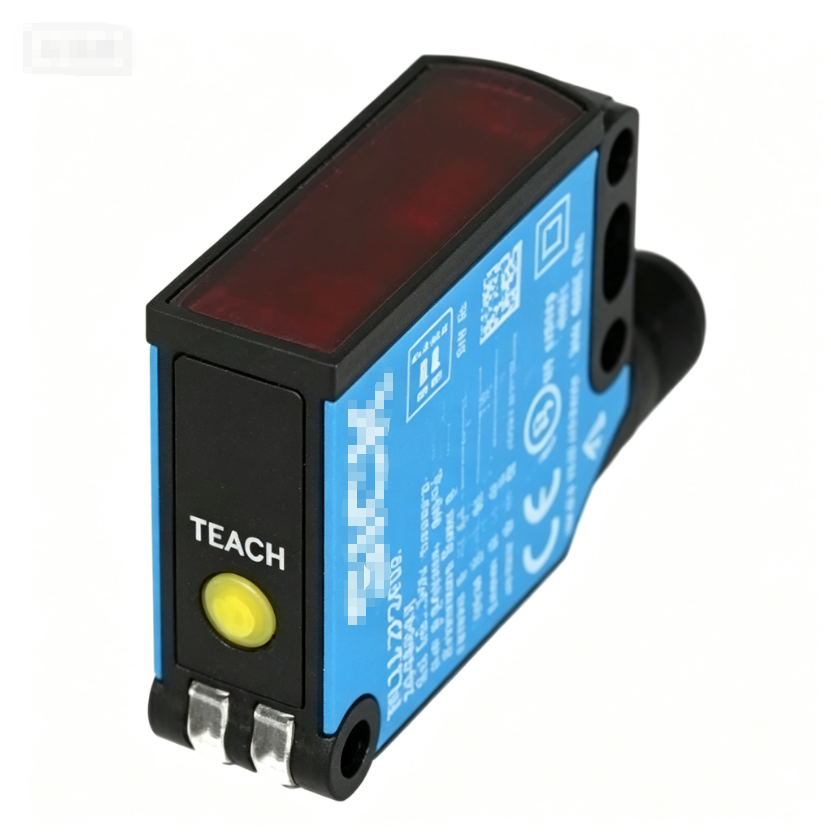

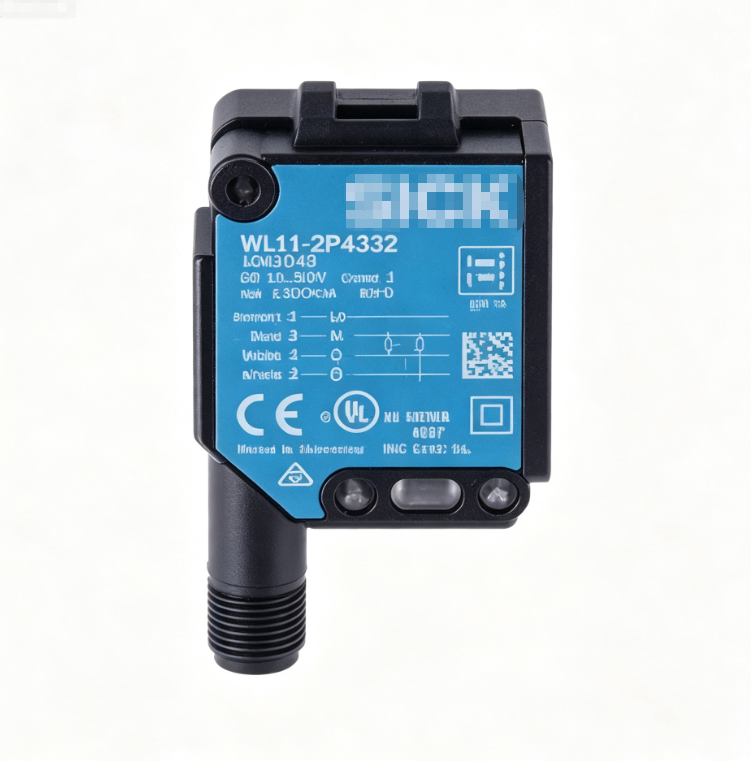

The SICK WL11-2P2432, Order No.1048542 is a retro-reflective photoelectric sensor with dual lens design, widely applied in industrial automation detection. It adopts red LED light source, features stable detection performance and high resistance to environmental interference.

属性项	参数
Brand	SICK
Model	WL11-2P2432
Order No.	1048542
Product Type	Retro-reflective Photoelectric Sensor
Sensing Principle	Retro-reflective, Dual lens
Sensing Range	0.15 ~ 10 m
Output Type	PNP
Supply Voltage	10~30V DC
Connection	M12 4-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP66,IP67,IP69K
Light Source	Red LED,640nm
Size	15.6 × 48.5 × 42 mm
Response Time	≤2.5ms
Max Output Current	100mA
Operating Temp	-30℃ ~ +60℃
Net Weight	0.05kg
Gross Weight	0.08kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Packaging Machine
