DGC-K-32-1700-PPV-A-GK

属性名称	属性值
Brand	FESTO
Model	DGC-K-32-1700-PPV-A-GK
Base Module No.	1312502
Product Series	DGC-K
Product Type	Rodless Pneumatic Linear Drive / Slotted Linear Actuator
Action Type	Double-acting
Piston Diameter	32 mm
Stroke	1700 mm
Pneumatic Port	G1/4
Cushioning	PPV, adjustable pneumatic cushion at both ends
Variant A	Standard piston
Variant GK	Kit with centre support bracket MUP
Max Speed	2 m/s (with PPV cushion)
Operating Pressure	2 ~ 8 bar
Ambient Temperature	-10 ~ +60 ℃
Medium	Co

INQUIRY

Product Details

Product Tags

Product Overview

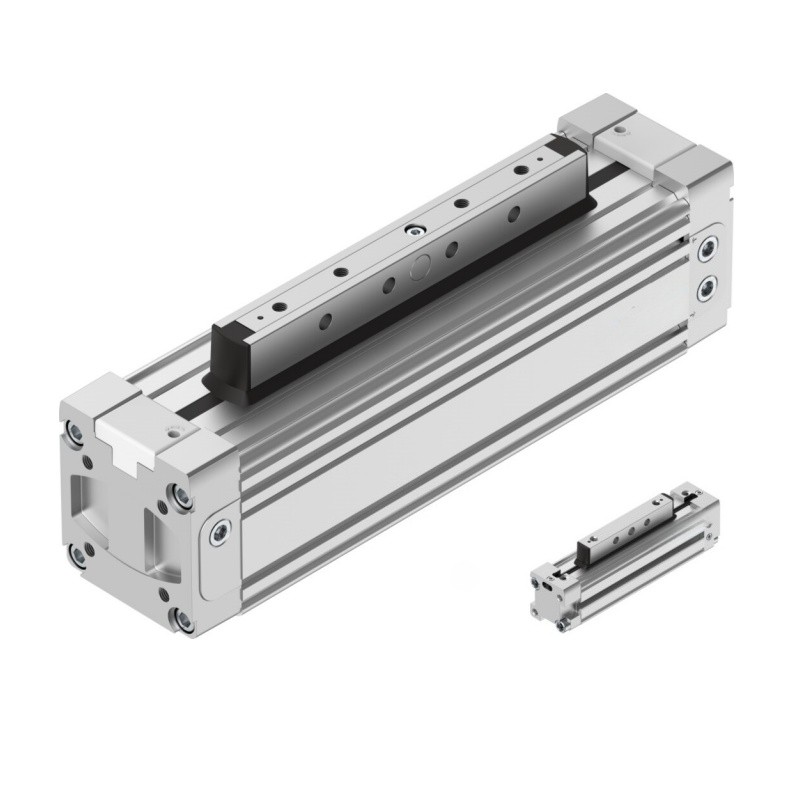

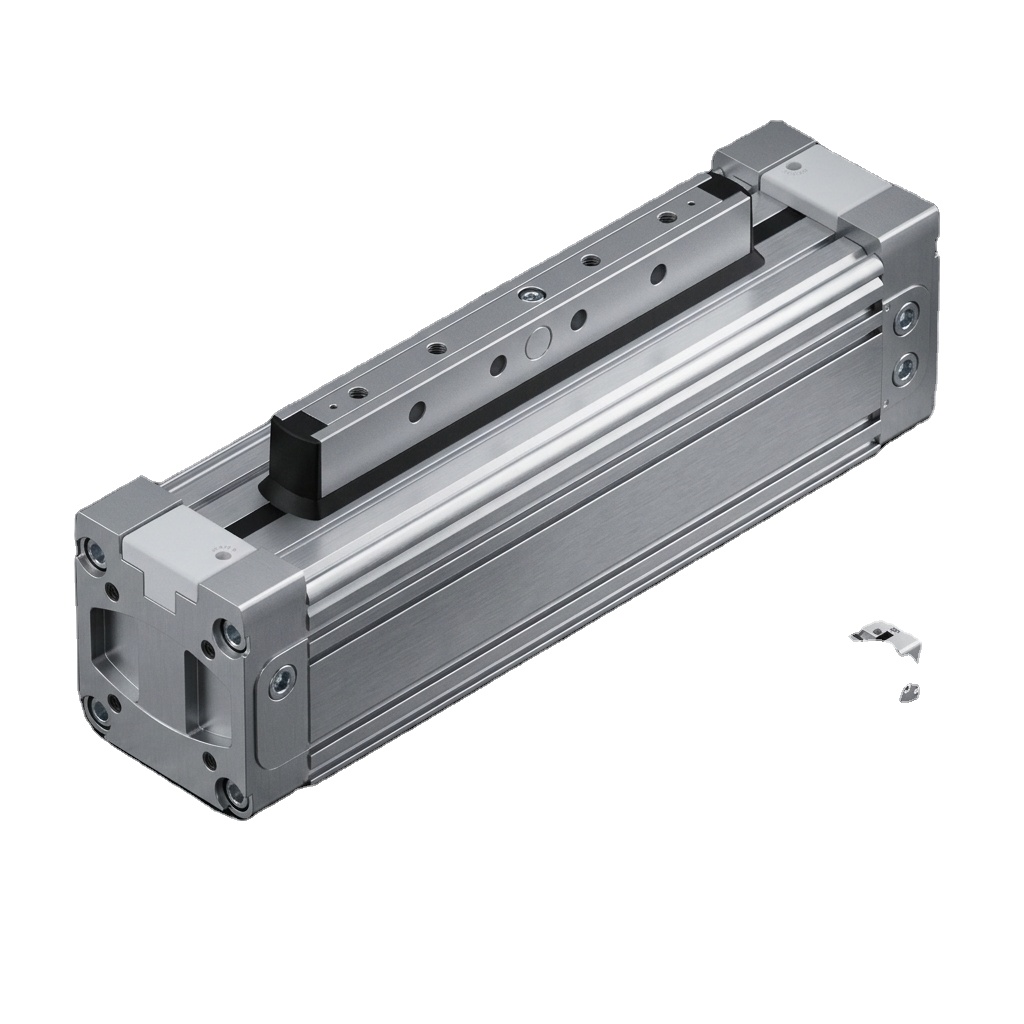

FESTO DGC-K-32-1700-PPV-A-GK belongs to DGC-K compact rodless linear drive series. Double acting design, bore 32mm, stroke 1700mm. PPV adjustable pneumatic cushioning at both ends to reduce impact. GK variant comes with centre support bracket MUP for long stroke anti-deflection. Slotted aluminium profile with sealing band, integrated slide for direct load mounting. Built-in piston magnet for proximity switch position feedback. Narrow compact structure saves installation space, widely used for long-distance linear transfer and transporting workpieces in automation equipment

属性名称	属性值
Brand	FESTO
Model	DGC-K-32-1700-PPV-A-GK
Base Module No.	1312502
Product Series	DGC-K
Product Type	Rodless Pneumatic Linear Drive / Slotted Linear Actuator
Action Type	Double-acting
Piston Diameter	32 mm
Stroke	1700 mm
Pneumatic Port	G1/4
Cushioning	PPV, adjustable pneumatic cushion at both ends
Variant A	Standard piston
Variant GK	Kit with centre support bracket MUP
Max Speed	2 m/s (with PPV cushion)
Operating Pressure	2 ~ 8 bar
Ambient Temperature	-10 ~ +60 ℃
Medium	Compressed air ISO 8573-1:2010 [7:-:-]
Barrel Material	Aluminium alloy slotted profile
Seal Material	NBR, sealing band
Feature	Built-in magnet for proximity sensor, integrated slide, compact narrow design
Mounting	Any mounting position, GK includes central support bracket
Corrosion Resistance Class	CRC 2
Certificate	RoHS, CE
Origin	Germany
Condition	New Original
