6028422 DOS-1208-G

属性名称	属性值
Brand	SICK
Model	DOS-1208-G
Order No.	6028422
Product Type	M12 Field Wireable Connector
Connector Type	Female, Straight, A-coded
Pin	8 Pin
Wiring Method	Screw Terminal
Material	PA Housing, CuZn Knurled Nut
Color	Black
Shielding	Unshielded
Conductor Cross Section	0.25~0.5 mm²
Rated Voltage	≤60 V
Rated Current	2 A
IP Rating	IP67
Tightening Torque	0.6 Nm
Operating Temperature	-40℃ ~ +85℃
Certification	UL
Condition	New Original
MOQ	1 Piece
Gross Weight	0.02 KG
Net Weigh

INQUIRY

Product Details

Product Tags

Product Overview

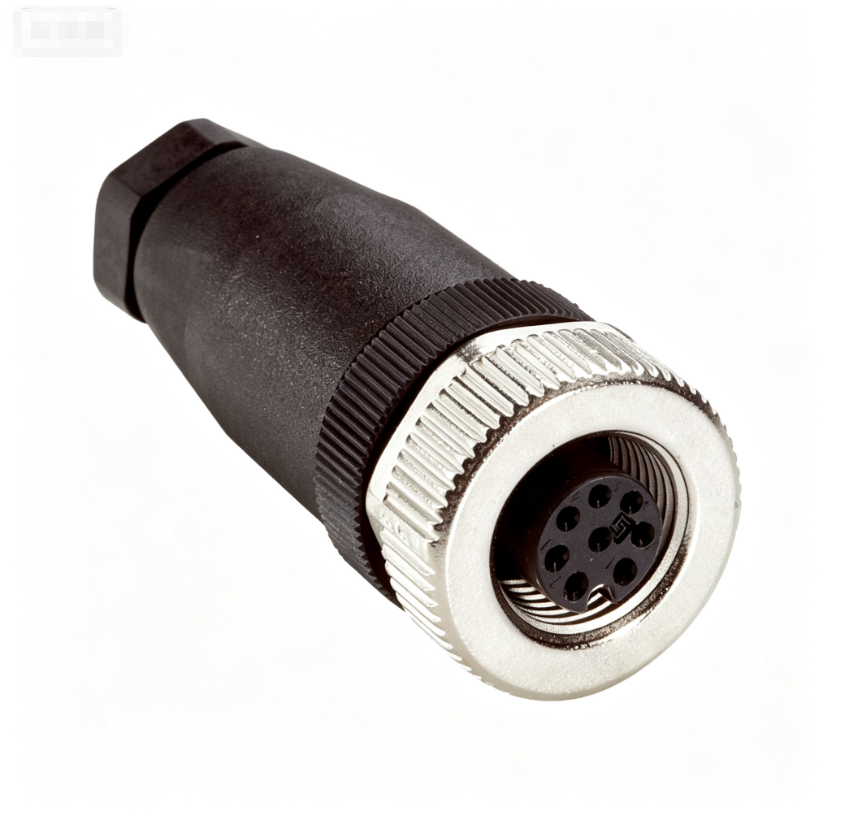

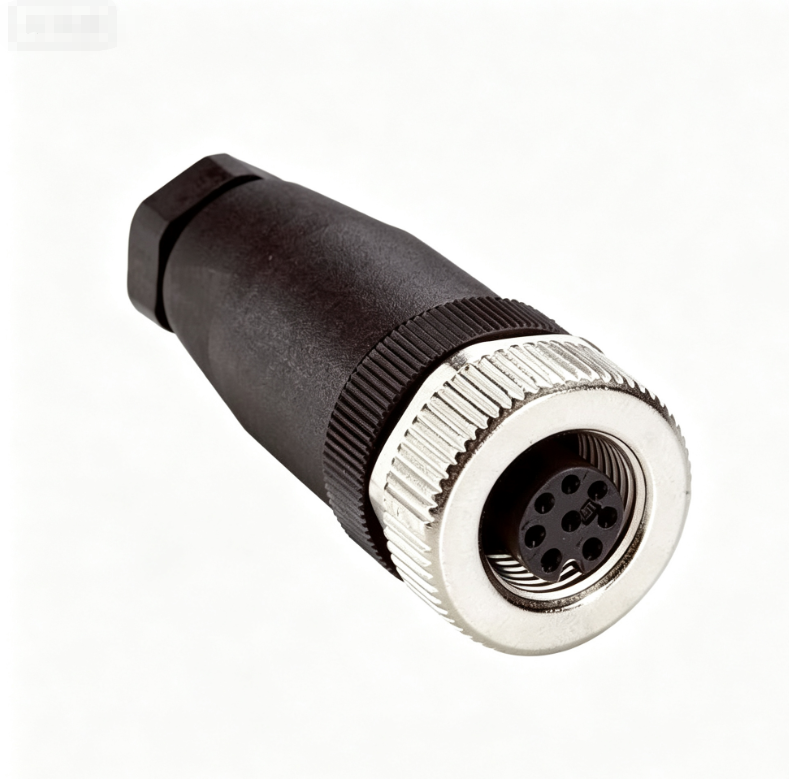

DOS-1208-G (Part No. 6028422) is a SICK M12 field wireable connector, 8-pin A-coded straight female type. It is designed for on-site assembly without pre-molded cable, ideal for connecting industrial sensors and automation devices. Featuring IP67 protection rating, this connector can work reliably in harsh industrial environments.

属性名称	属性值
Brand	SICK
Model	DOS-1208-G
Order No.	6028422
Product Type	M12 Field Wireable Connector
Connector Type	Female, Straight, A-coded
Pin	8 Pin
Wiring Method	Screw Terminal
Material	PA Housing, CuZn Knurled Nut
Color	Black
Shielding	Unshielded
Conductor Cross Section	0.25~0.5 mm²
Rated Voltage	≤60 V
Rated Current	2 A
IP Rating	IP67
Tightening Torque	0.6 Nm
Operating Temperature	-40℃ ~ +85℃
Certification	UL
Condition	New Original
MOQ	1 Piece
Gross Weight	0.02 KG
Net Weight	0.01 KG
Place of Origin	Germany
