159706 MN1H-5/3E-D-3-S-C
Product Overview
Item No: 159706 Model: MN1H-5/3E-D-3-S-C Brand: Festo Type: Pneumatic Solenoid Valve

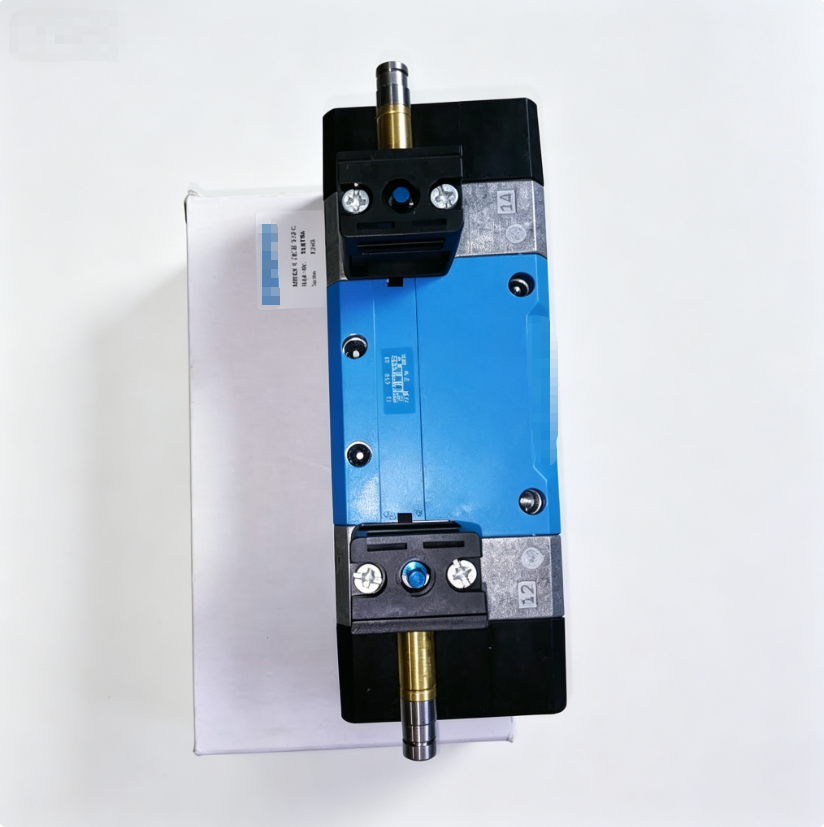

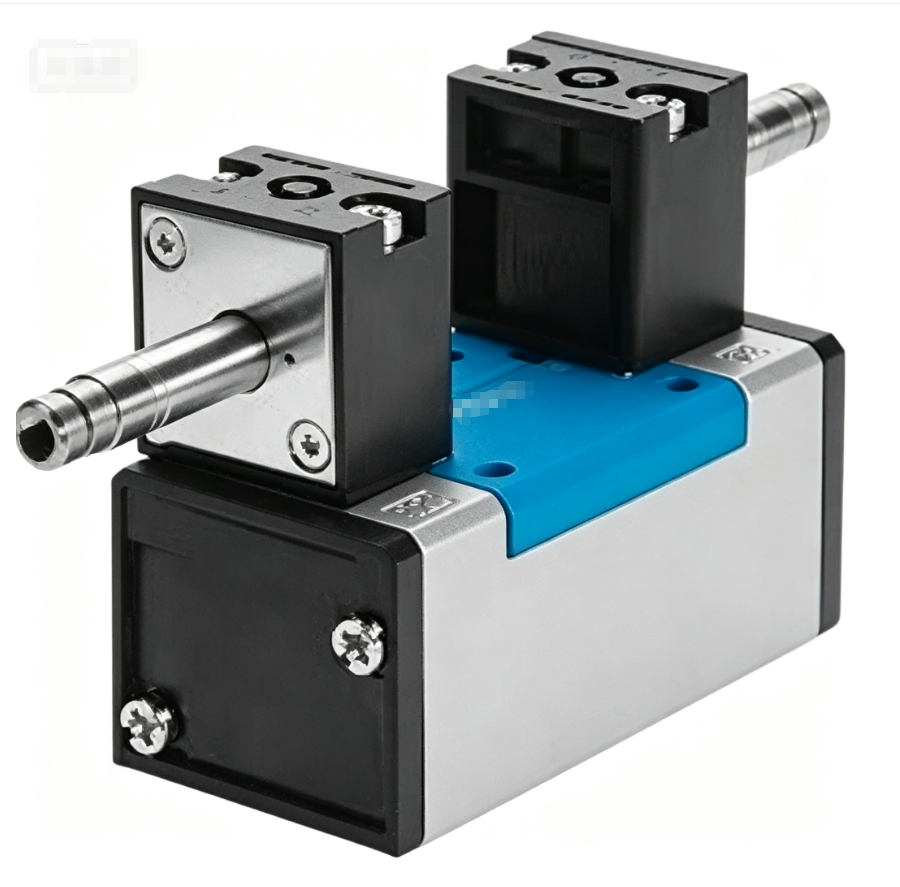

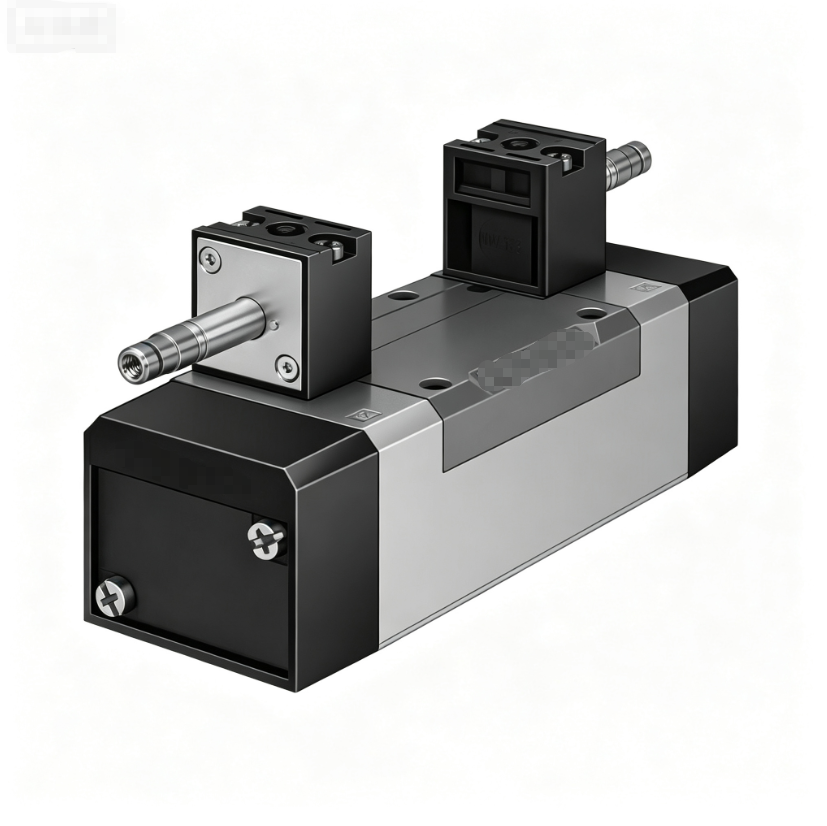

Festo MN1H-5/3E-D-3-S-C solenoid valve (159706) belongs to MN1H series universal solenoid valve. It is a 5/3-way double solenoid valve with exhaust centre (5/3E). When both solenoids lose power, both working ports exhaust, allowing the cylinder piston to float freely. G3/8 port, DC24V coil. It can be installed singly or assembled on manifold for centralized pneumatic control.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MN1H-5/3E-D-3-S-C |
| Part No. | 159706 |
| Type | Solenoid Valve |
| Series | MN1H |
| Valve Function | 5/3-way, exhaust centre (5/3E), double solenoid |
| Nominal Size | 8 mm |
| Port Size | G3/8 |
| Working Pressure | 0.2 ~ 1.0 MPa (2 ~ 10 bar) |
| Coil Voltage | DC24V |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +50 ℃ |
| Protection Class | IP65 (with connector) |
| Material | Aluminum valve body, PA coil housing, NBR seal |
| Feature | Double solenoid, 5/3E exhaust centre, manifold mount |
| Mounting | Manifold mounting / surface mounting |
| Condition | New Original |
