575266 VUVS-L20-P53E-MD-G18-F7-1C1
Product Overview
Item No: 575266 Model: VUVS-L20-P53E-MD-G18-F7-1C1 Brand: Festo Type: Pneumatic Solenoid Valve

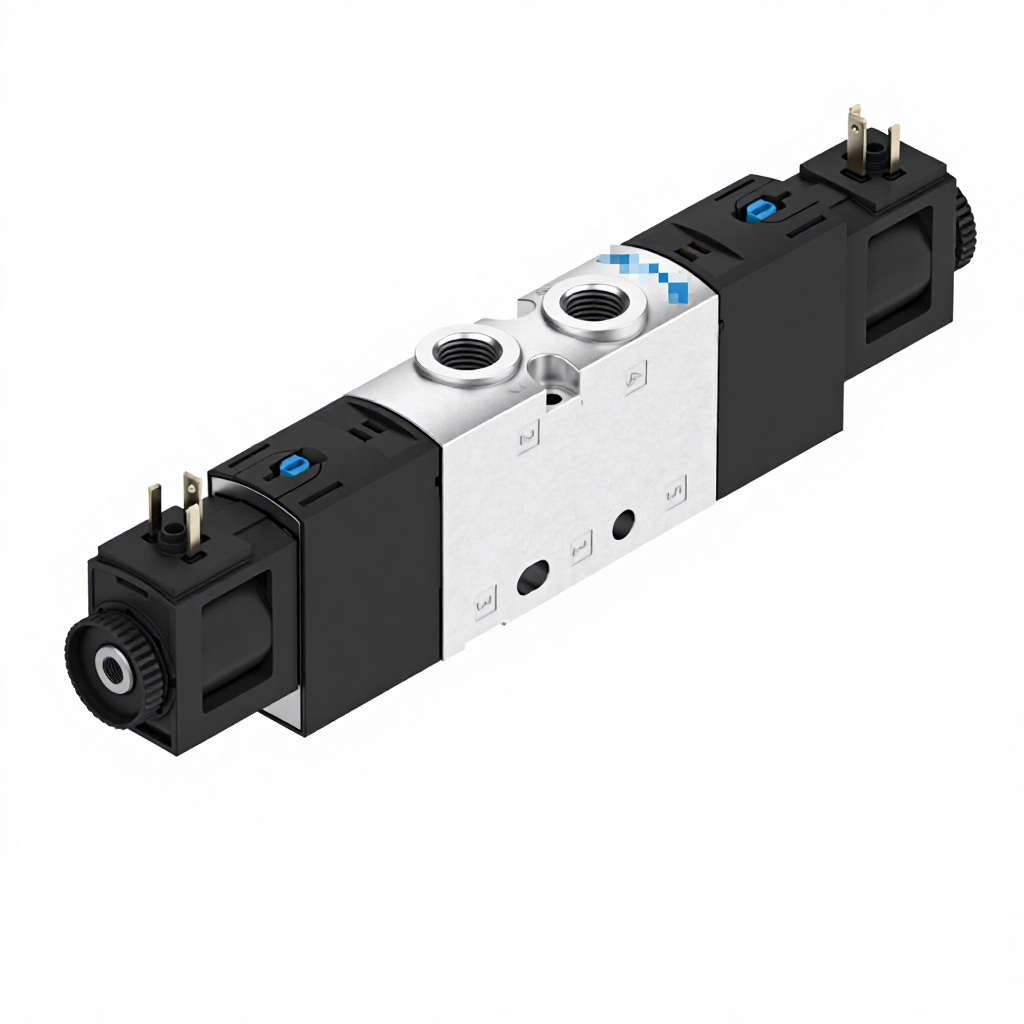

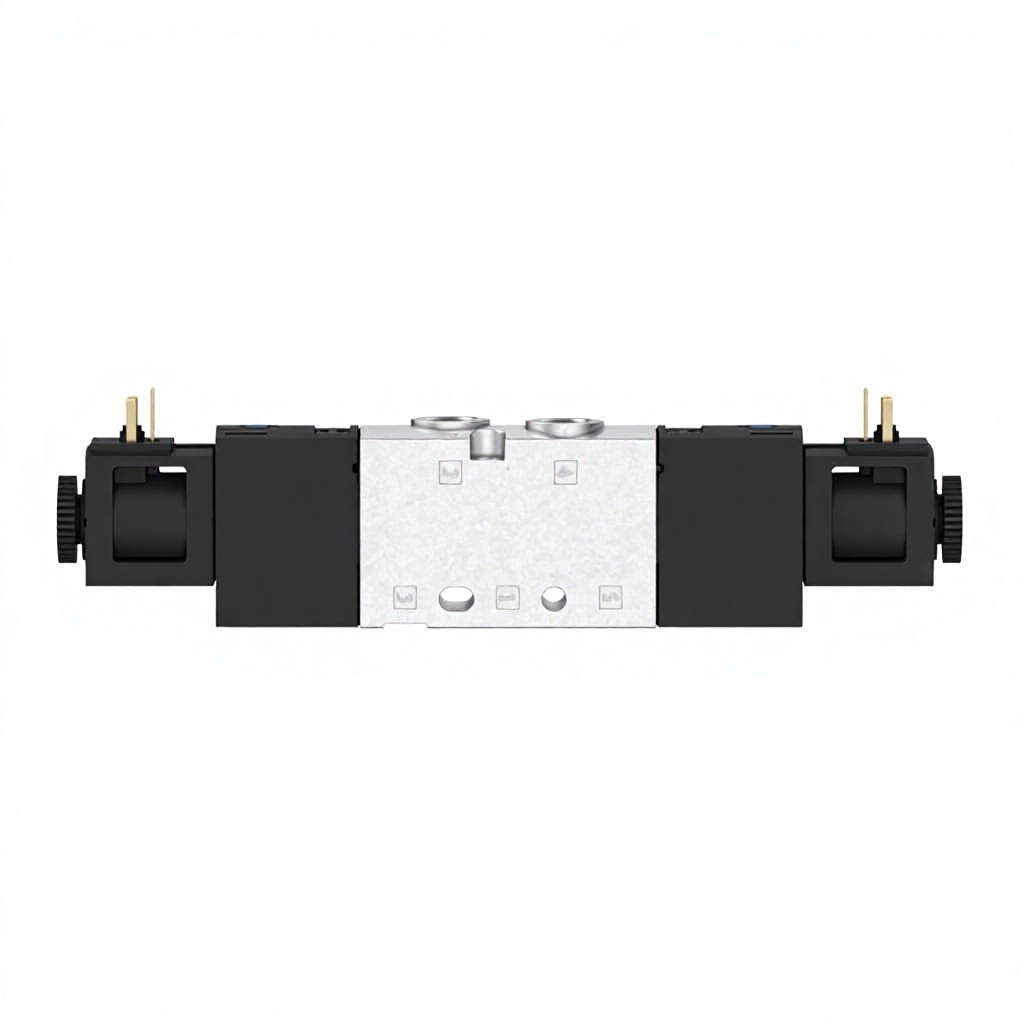

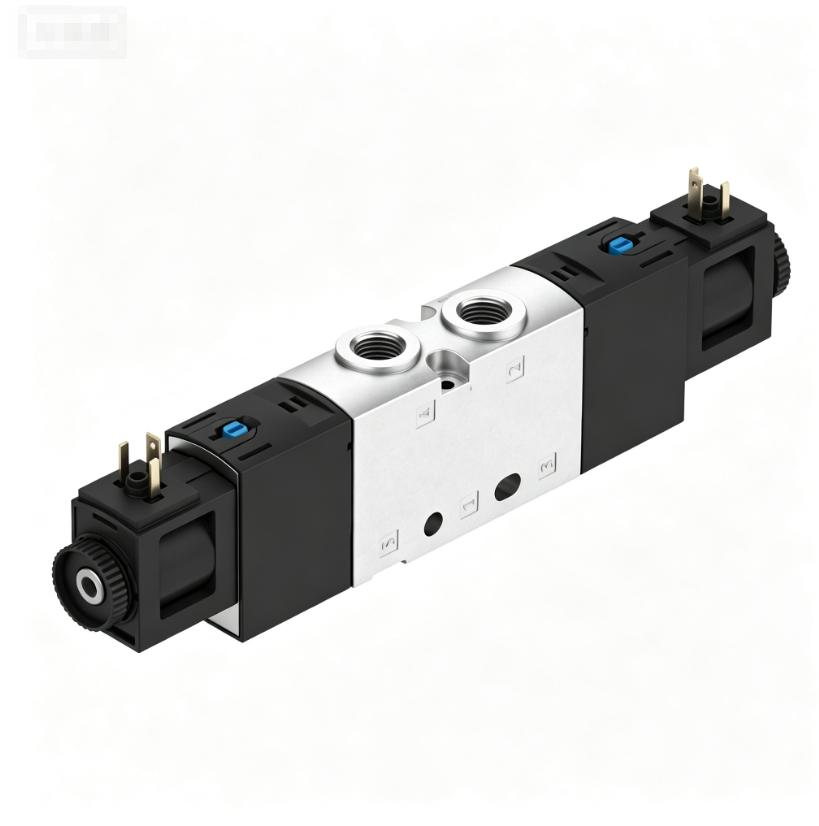

Festo VUVS-L20-P53E-MD-G18-F7-1C1 solenoid valve (575266) belongs to VUVS universal solenoid valve series. It is a 5/2-way single solenoid valve with spring return, G1/8 port and DC24V coil. Built-in manual override enables manual operation during commissioning or troubleshooting. It can be mounted individually or assembled on manifold for centralized control, commonly used to drive pneumatic cylinders.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VUVS-L20-P53E-MD-G18-F7-1C1 |
| Part No. | 575266 |
| Type | Solenoid Valve |
| Series | VUVS |
| Valve Function | 5/2-way, single solenoid, spring return |
| Nominal Size | 14 mm |
| Port Size | G1/8 |
| Working Pressure | 0.2 ~ 1.0 MPa (2 ~ 10 bar) |
| Coil Voltage | DC24V |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +50 ℃ |
| Protection Class | IP65 (with connector) |
| Material | Aluminum valve body, PA coil housing, NBR seal |
| Feature | MD manual override, F7 coil, high flow, robust design |
| Mounting | Manifold mounting / surface mounting |
| Condition | New Original |
