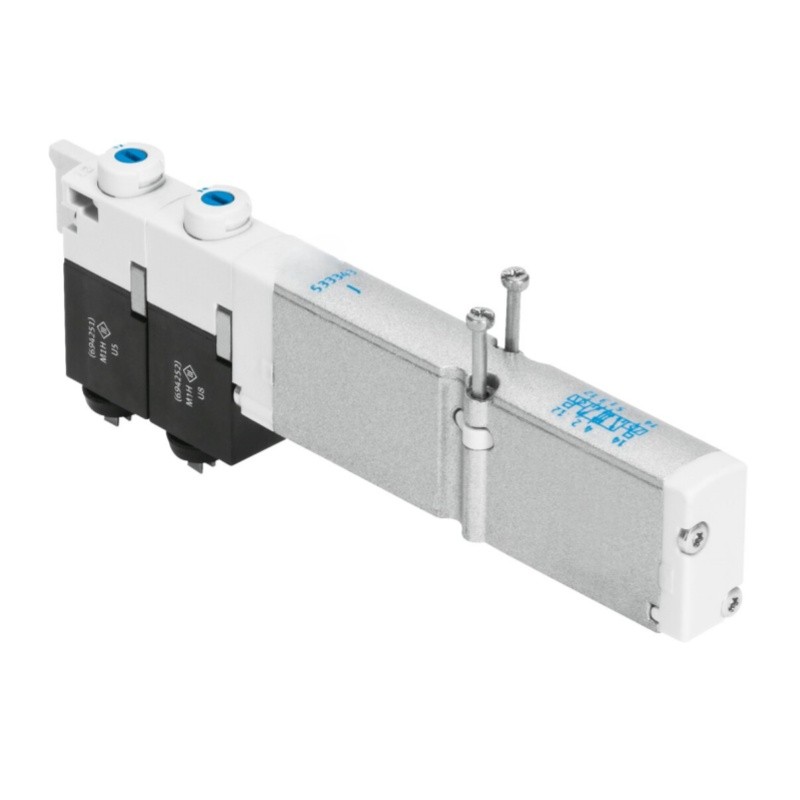

VMPA1-M1H-K-PI
Product Overview
VMPA1-M1H-K-PI (Part No.533347) is a Festo 10mm valve slice for VMPA valve island. It is a 2x3/2-way monostable normally closed pneumatic solenoid valve, powered by 24V DC. Designed for modular valve terminal assembly, this pneumatic valve features compact size, fast switching response and reliable operation for industrial automation pneumatic control systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VMPA1-M1H-K-PI |
| Part No. | 533347 |
| Product Type | Solenoid Valve / Valve Island Valve Slice |
| Valve Function | 2x3/2-way, monostable, normally closed |
| Valve Width | 10 mm |
| Rated Flow | 230 l/min |
| Operating Voltage | 24V DC |
| Voltage Tolerance | ±25% |
| Operating Pressure | 0.3~1.0 MPa (3~10 bar) |
| Pilot Pressure | 0.3~0.8 MPa (3~8 bar) |
| Structure | Piston gate valve |
| Sealing Type | Soft seal |
| Protection Class | IP65 |
| Electrical Connector | M8, 4-pin |
| Manual Override | Detenting & Non-detenting |
| Switching Time ON | 10 ms |
| Switching Time OFF | 20 ms |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium Temperature | -5 ~ +50 ℃ |
| Storage Temperature | -20 ~ +40 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Vacuum Suitable | No |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR |
| Net Weight | 0.06 kg |
| Gross Weight | 0.08 kg |
| RoHS | Compliant |
| CRC Corrosion Class | CRC1 |
| Certification | cULus Recognized |
| Mounting | Through-hole, mounting position optional |
| Tightening Torque | 0.25 Nm |
| Condition | New Original |
| Application | Pneumatic Automation, Valve Island Assembly |
