HGL-M5-B
Product Overview

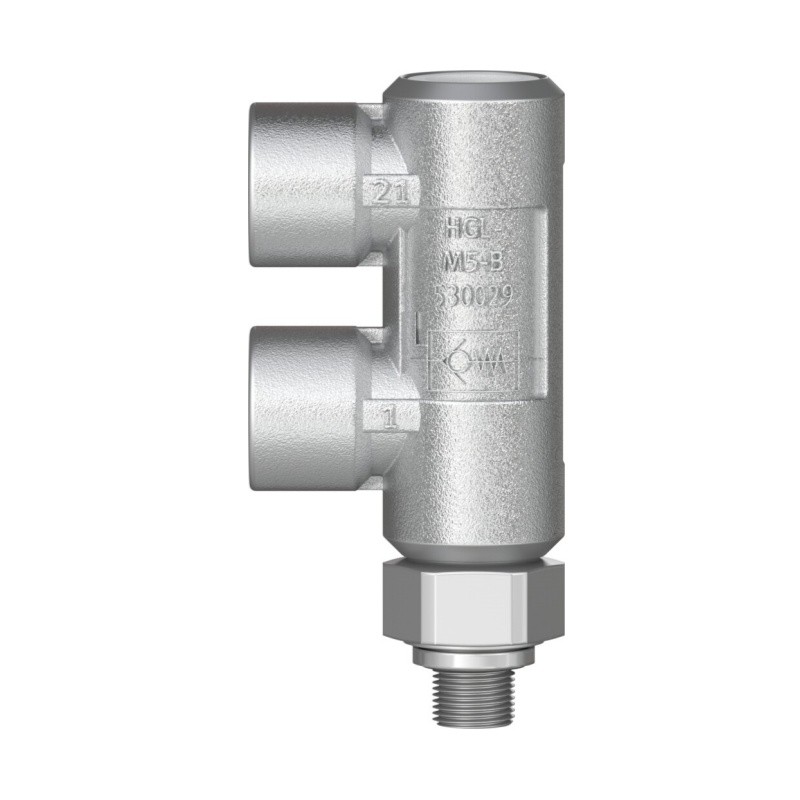

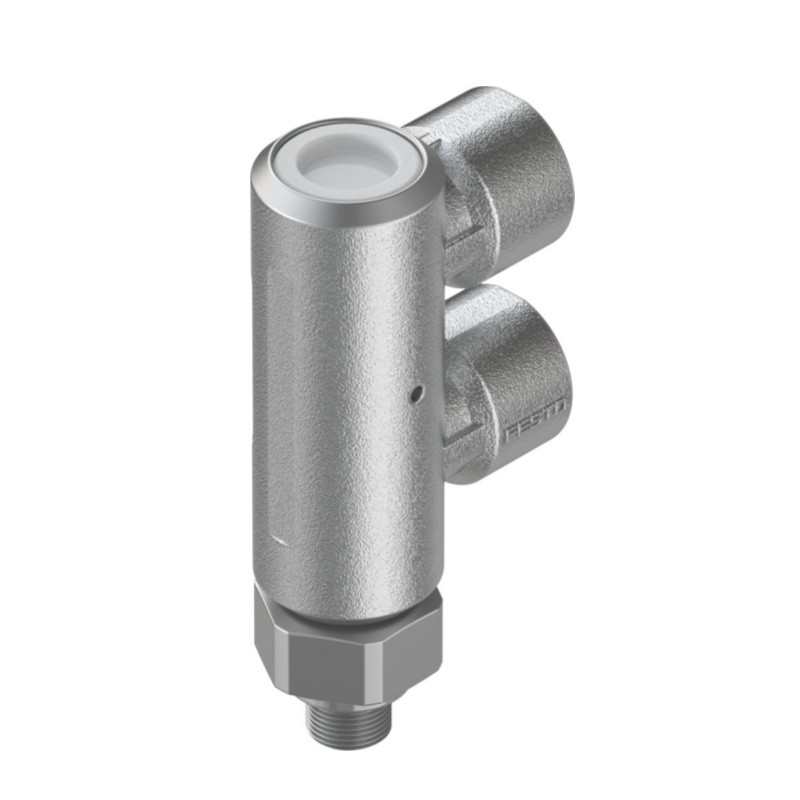

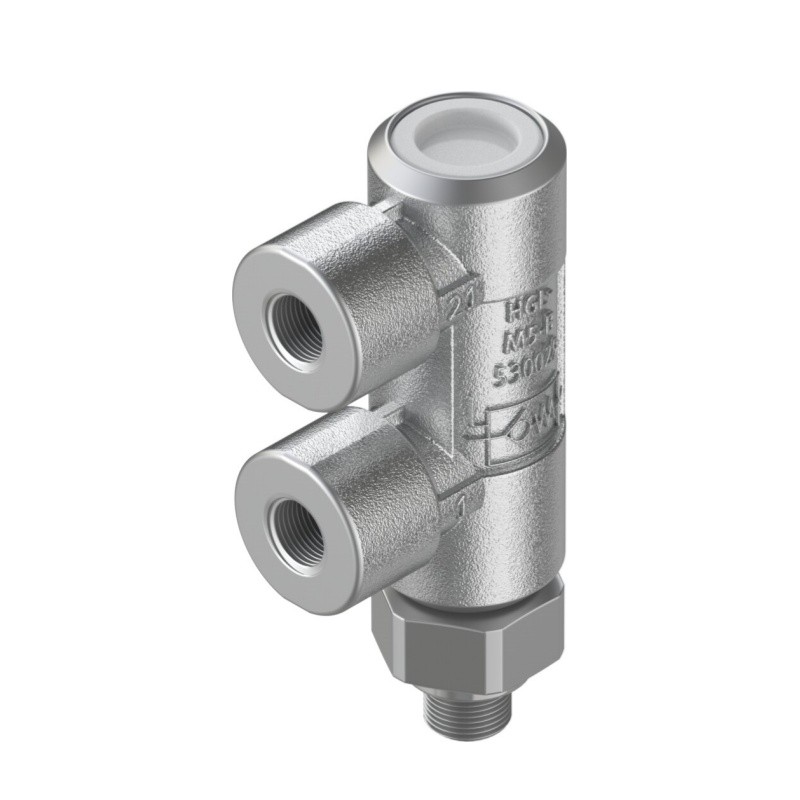

Festo HGL-M5-B (Part No.530029) is compact HGL series pilot operated non-return valve. Without pilot air signal, reverse airflow is blocked to lock cylinder position. Once pilot air is supplied, reverse flow is opened. It is widely used for small vertical cylinders and mini clamping units to avoid sudden drop in case of air pressure failure.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | HGL-M5-B |
| Part Number | 530029 |
| Product Type | Piloted Check Valve / Pilot Operated Non-Return Valve |
| Series | HGL Series |
| Valve Function | Piloted non-return, cylinder locking & holding function |
| Pneumatic Connection Port1 | M5 |
| Pneumatic Connection Port2 | M5 |
| Pilot Port | M5 |
| Nominal Flow (1→2 @6→5bar) | 130 l/min |
| Max Flow (1→2 @6→0bar) | 200 l/min |
| Operating Pressure | 0.5 ~ 10 bar |
| Pilot Pressure | 1 ~ 10 bar |
| Mounting Type | Screw-in male thread |
| Mounting Position | Any mounting orientation |
| Tightening Torque | 1.25 Nm |
| Medium | Compressed air ISO 8573-14 [7:4:4], lubricated air allowed |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium Temperature | -10 ~ +60 ℃ |
| Housing Material | Anodised wrought aluminium alloy |
| Seal Material | NBR |
| Weight | 21 g |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B2-L |
| Cleanroom Class | ISO14644-14 Class 4 |
| RoHS | Compliant |
| Original/New | New Original |
