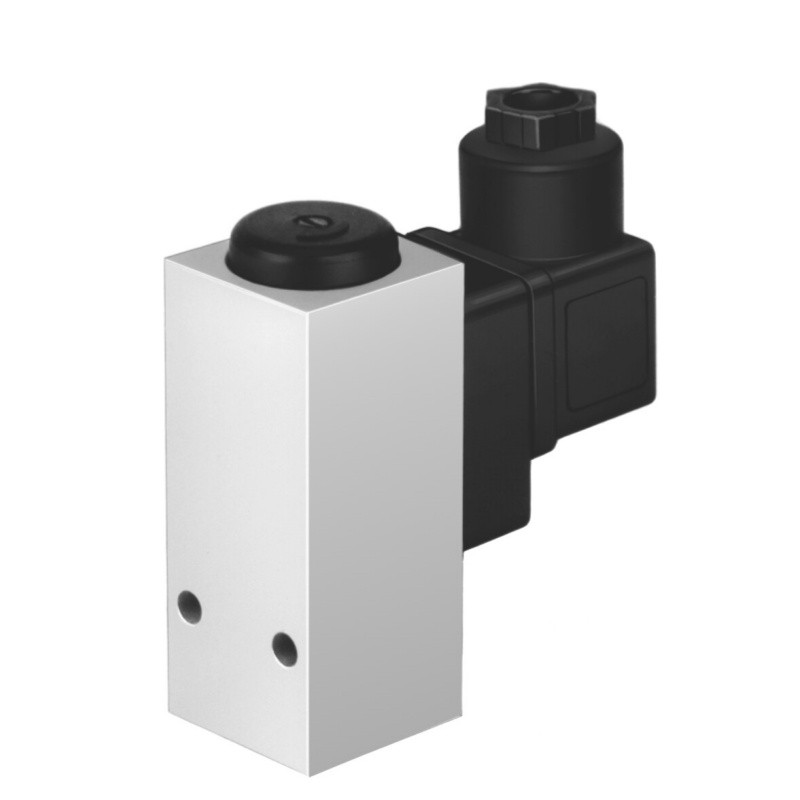

PEV-1/4-B
Product Overview
FESTO PEV-1/4-B belongs to PEV pressure switch series, diaphragm sensing pressure switch with SPDT changeover contact. G1/4 pneumatic port, working pressure range 1~12 bar, adjustable switching threshold. When system pressure reaches set value, the internal microswitch flips contact to output electrical signal for pressure monitoring, alarm or interlock control. Max switching current 5A, IP65 protection, type A rectangular DIN43650 plug included. Compatible with compressed air, water and mineral oil, wide temperature range -20~+80℃. Through-hole mounting, any installation orientation, widely used for pressure supervision in pneumatic automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PEV-1/4-B |
| Order No. | 10773 |
| Product Series | PEV |
| Product Type | Pneumatic Pressure Switch / Pressure Monitoring Switch |
| Measured Pressure | Relative pressure |
| Pneumatic Port | G1/4 |
| Operating Pressure | 1 ~ 12 bar |
| Switching Element | Changeover contact (SPDT) |
| Max Switching Frequency | 3 Hz |
| Max AC Voltage | AC 250 V |
| Max DC Voltage | DC 125 V |
| Max Switching Current | 5 A (5000 mA) |
| Min Load Current | 1 mA @24V, 10 mA @10V, 100 mA @5V |
| Utilization Category | AC-12, AC-14 / DC-12, DC-13 |
| Electrical Connection | Type A rectangular plug DIN43650 / EN175301-803, plug included |
| Protection Class | IP65 (properly assembled) |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO8573-1:2010 [7:-:-], water, mineral oil |
| Housing Material | Coated aluminium, PC, PE |
| Seal Material | NBR |
| Contact | Silver contact |
| Feature | Adjustable switching threshold, diaphragm sensing, polarity reversal protection, through-hole mounting |
| Mounting | Through-hole installation, any mounting position |
| Weight | 194 g |
| Certificate | CE, cULus, CCC, RoHS, UKCA |
| Origin | Germany |
| Condition | New Original |
