1384811 DSBC-100-200-PPVA-N3
Product Overview

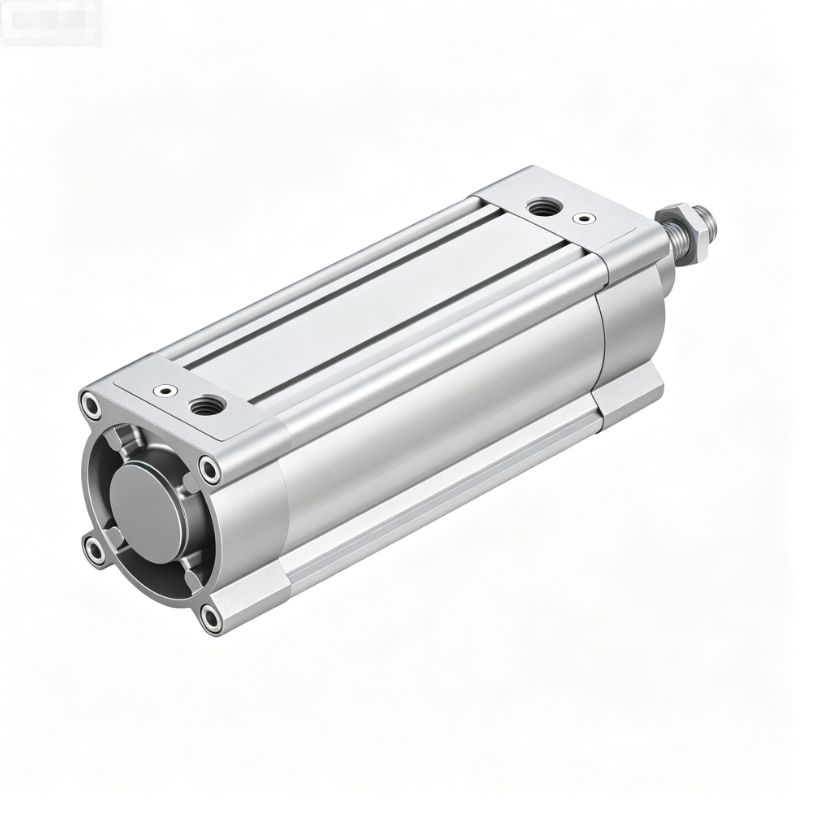

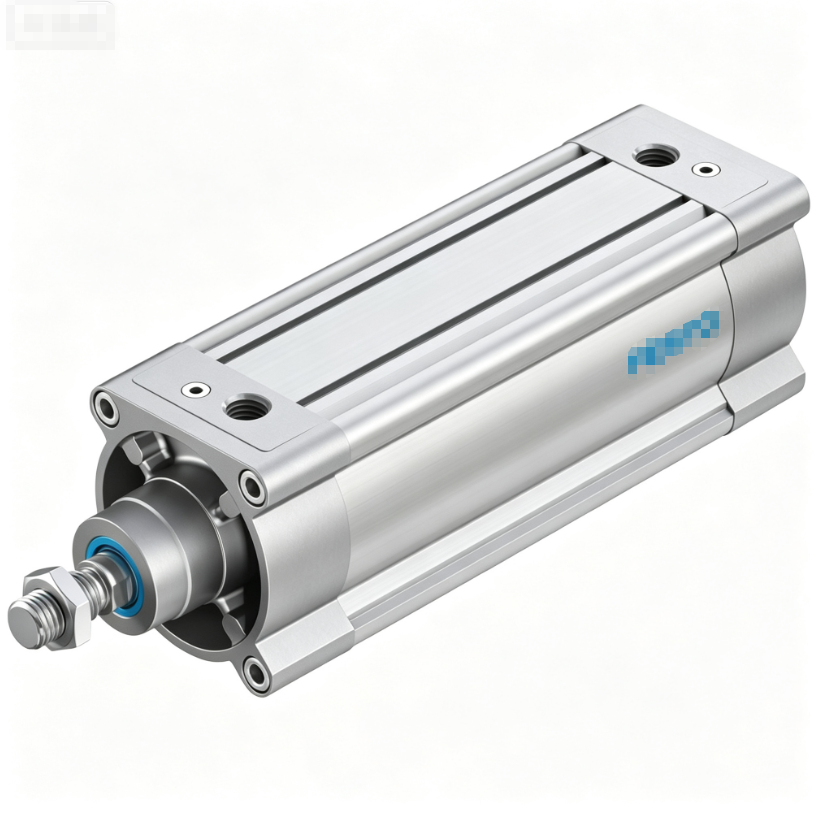

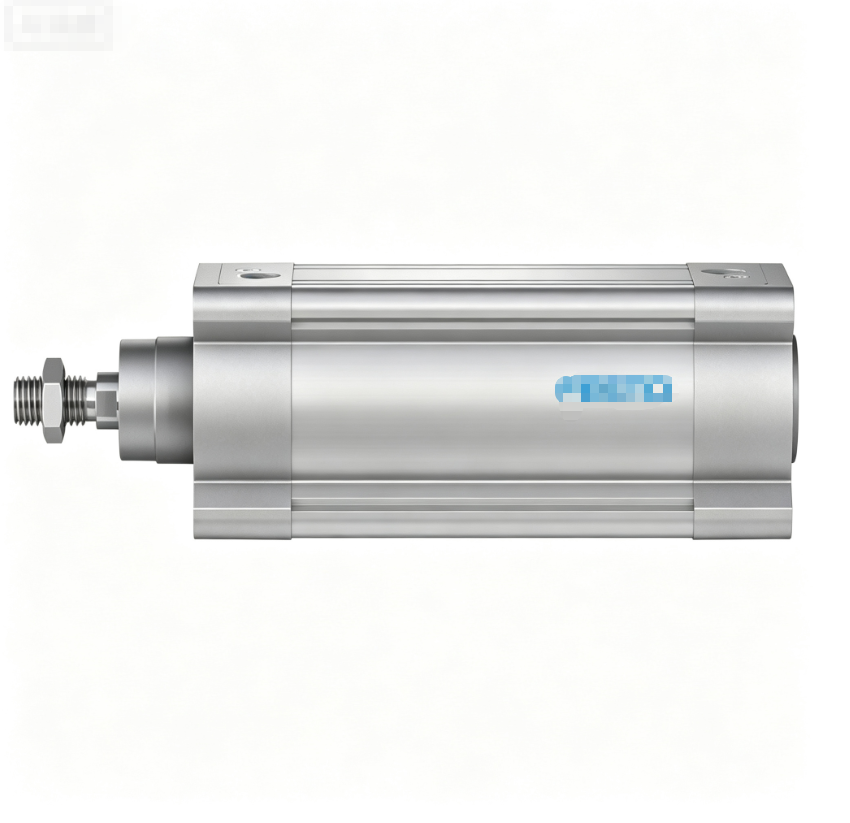

DSBC-100-200-PPVA-N3 (Part No.1384811) is Festo DSBC series ISO standard double-acting pneumatic cylinder. Bore 100mm, stroke 200mm, equipped with PPVA adjustable pneumatic end cushioning and N3 built-in magnetic piston. Barrel and end caps made of aluminium alloy; piston rod adopts hard chrome-plated steel for high rigidity and wear resistance. Built-in magnetic piston enables installation of magnetic position sensors for stroke signal feedback. PPVA pneumatic cushion absorbs impact at both ends of stroke to reduce vibration and noise. Working pressure 0.1~10 bar, ambient temperature -20~80℃. CE & RoHS compliant. Widely used for heavy-duty clamping, pressing, lifting and linear driving tasks in industrial automation equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DSBC-100-200-PPVA-N3 |
| MPN | 1384811 |
| Product Type | Pneumatic ISO Cylinder, Double Acting Air Cylinder |
| Series | DSBC Series |
| Bore | 100 mm |
| Stroke | 200 mm |
| Version | Double-acting, PPVA adjustable pneumatic cushioning, N3 magnetic piston |
| Material | Barrel & End caps: Aluminium alloy; Piston rod: Hard chrome-plated steel |
| Working Medium | Compressed air (ISO 8573-1:2010) |
| Working Pressure | 0.1 ~ 10 bar |
| Ambient Temperature | -20 ~ 80 ℃ |
| Feature | ISO standard cylinder, built-in magnetic piston for magnetic sensor, PPVA adjustable end cushioning, high rigidity, heavy load thrust |
| Compliance | RoHS compliant, CE certified |
| Application | Heavy-duty industrial automation, clamping, pressing, lifting linear actuator |
