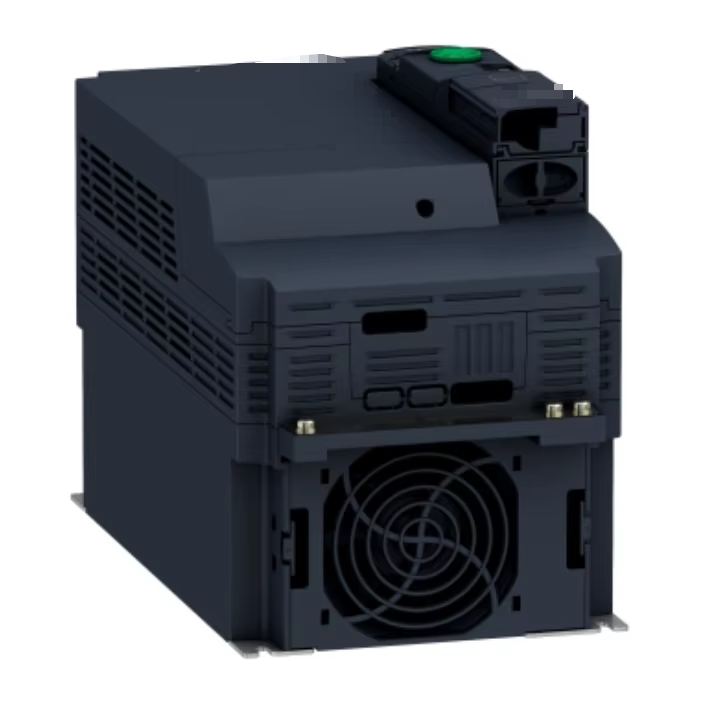

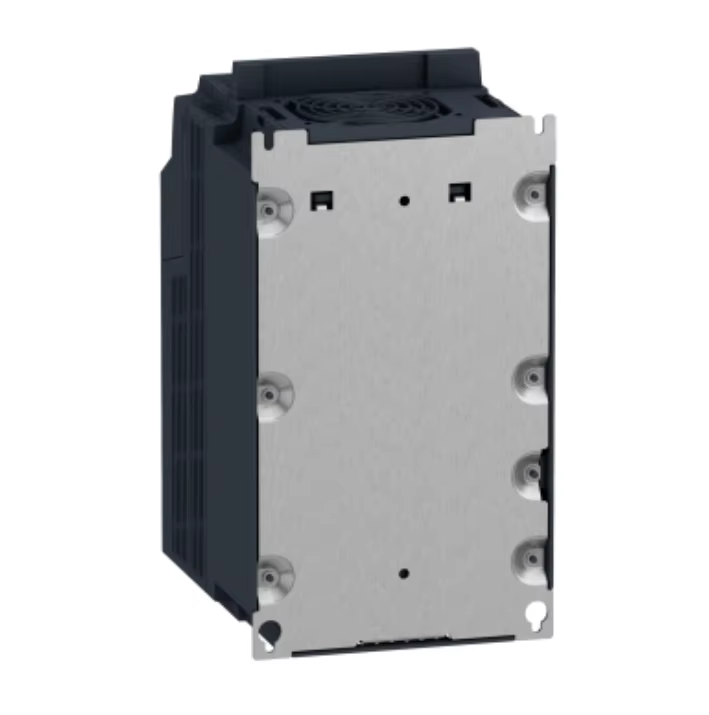

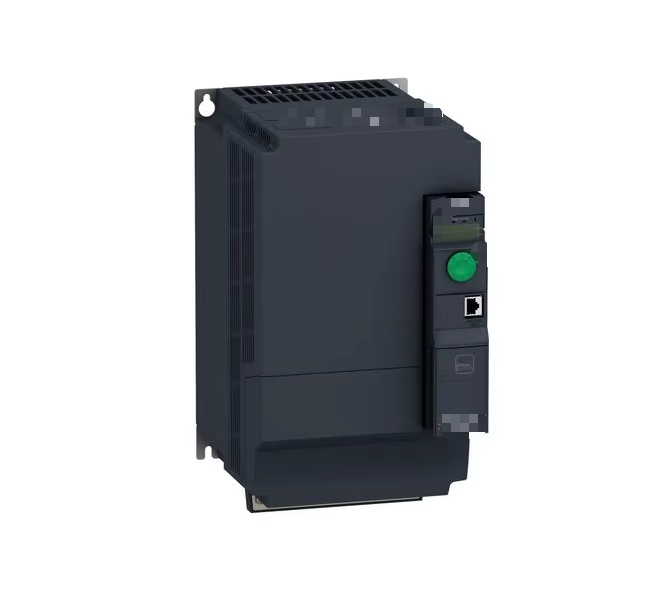

ATV320D15N4B
Product Overview
Schneider ATV320D15N4B belongs to Altivar Machine ATV320 series, book form variable speed drive specially designed for machine automation. This 3-phase 380~500V heavy-duty VFD supports asynchronous motors, permanent magnet synchronous motors and synchronous reluctance motors. IP20 protection grade with built-in braking chopper and integrated C3 EMC filter. It is equipped with STO, SS1, SLS safety functions, coated PCB for harsh environment, high overload capacity. Widely used for conveyors, fans, pumps, woodworking machines, packaging machinery and machine tools.
| Attribute Name | Value |
|---|---|
| Brand | Schneider Electric |
| Model | ATV320D15N4B |
| Series | Altivar Machine ATV320 |
| Type | Variable Speed Drive / VFD, Book form |
| Motor Power | 15kW Heavy duty |
| Rated Voltage | 380~500V 3Phase |
| Output Current | 33.0A Heavy duty |
| IP Rating | IP20 |
| Built-in Brake Unit | Yes |
| Cooling | Forced convection |
| Communication | Modbus RTU, CANopen |
| Condition | New Original |
| Net Weight | 6.90kg |
| Gross Weight | 8.30kg |
