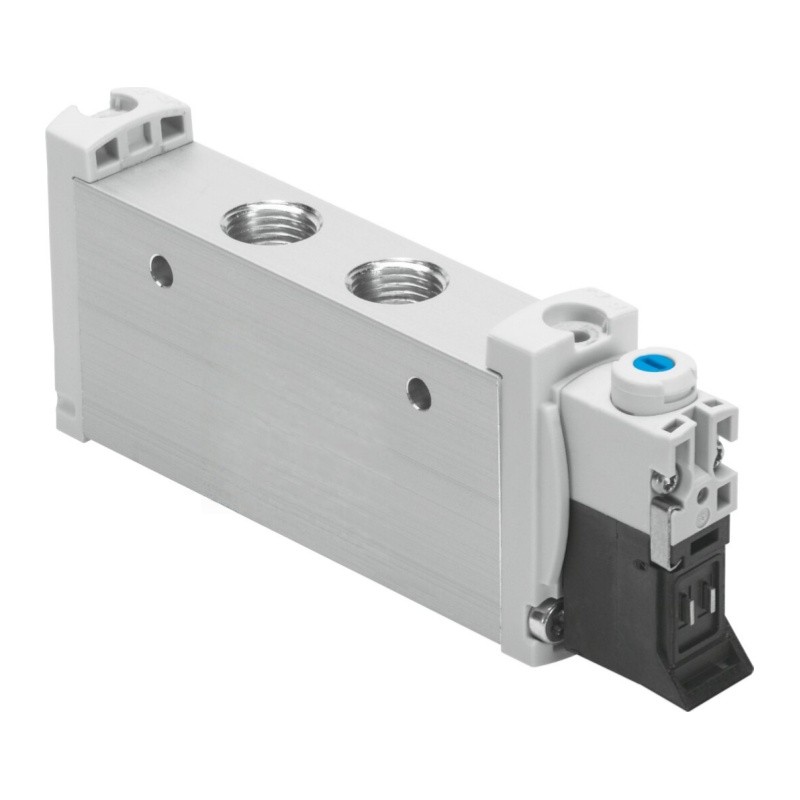

VUVG-L14-M52-AT-G18-1P3
Product Overview
Item No: 566499 Model: VUVG-L14-M52-AT-G18-1P3 Brand: Festo Type: 5/2-Way Monostable Solenoid Valve, VUVG Series
Festo VUVG-L14-M52-AT-G18-1P3 solenoid valve, part number 566499, belongs to VUVG series compact directional solenoid valves. It is a 5/2-way monostable piston gate valve with internal pilot, 14mm slim construction width and G1/8 pneumatic connection. Powered by 24V DC 1W coil and air spring return, it delivers fast switching and high flow capacity of 700~780 l/min. It comes with covered detenting push button manual override for commissioning test, IP65 protection when fitted with plug socket. The lightweight polymer housing and reliable NBR seals guarantee long service life. It can be installed at any position, commonly used for valve island assembly and controlling the movement of pneumatic cylinders in automated machinery
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | VUVG-L14-M52-AT-G18-1P3 |
| Part No. | 566499 |
| Product Series | VUVG |
| Product Type | 5/2-Way Monostable Solenoid Valve |
| Valve Function | 5/2-way, monostable, internal pilot |
| Pneumatic Connection | G1/8 |
| Construction Width | 14 mm |
| Nominal Diameter | 5.6 mm |
| Nominal Flow Rate | 700 ~780 l/min |
| Operating Pressure | 2.5 ~ 8 bar |
| Pilot Pressure | 2.5 ~ 8 bar |
| Coil Voltage | 24V DC, 1W |
| Operating Medium | Filtered compressed air ISO 8573-1 [7:4:4] |
| Ambient Temperature | -10 ℃ ~ +50 ℃ |
| Housing Material | Polymer housing |
| Seal Material | NBR |
| Manual Override | Detenting push button, covered |
| Reset Type | Air spring return |
| Protection Class | IP65 (with plug socket) |
| Mounting | Any mounting position |
| Net Weight | 72 g/pc |
| RoHS Compliance | Yes |
| Feature | Compact 14mm piston gate valve, fast switching, internal pilot |
| Application | Industrial automation, pneumatic cylinder control, valve island |
