PUN-6X1-S-1-DUO-B 197620
Product Overview

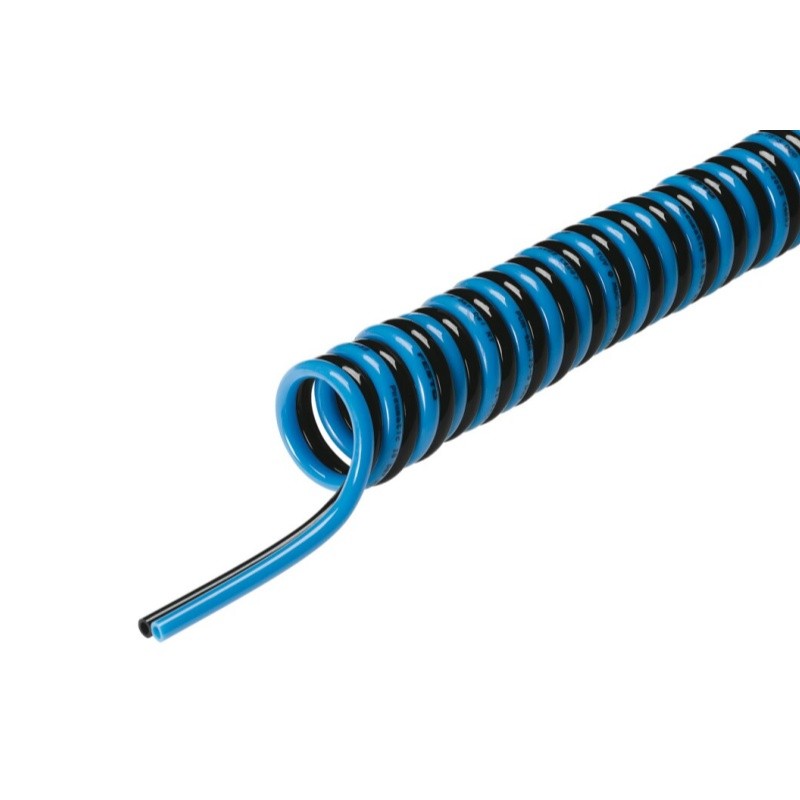

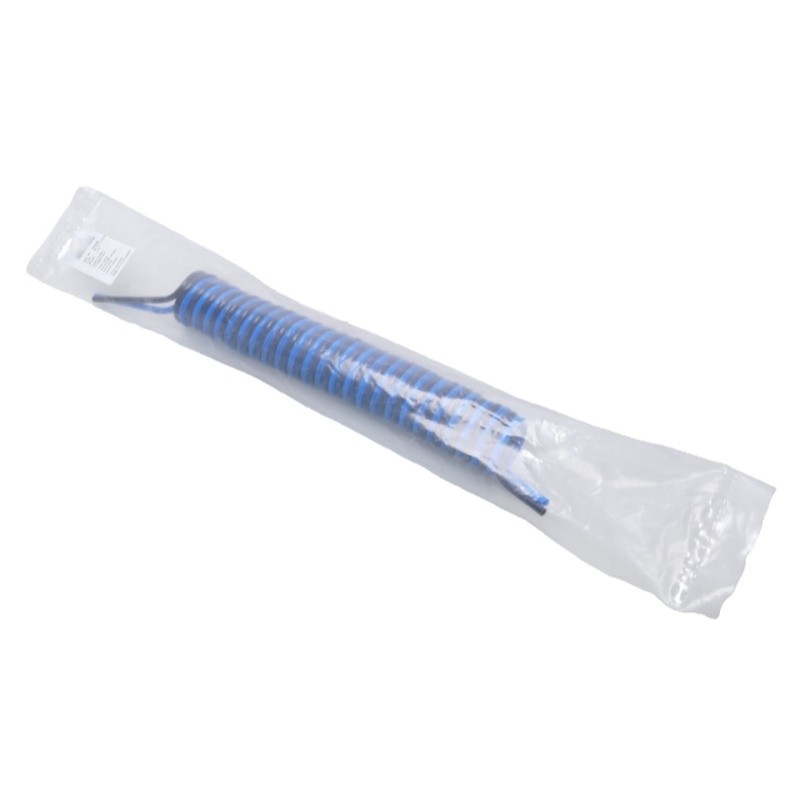

PUN-6X1-S-1-DUO-B (Part No.197620) is Festo PUN series polyurethane duo twin pneumatic tubing. Twin connected hose structure, each tube OD 6mm, wall thickness 1mm, inner diameter 4mm, blue color. Made of PU material with good flexibility and wear resistance. Working pressure -0.95~10 bar, ambient temperature -20~60℃. Integrated twin design simplifies piping layout, RoHS compliant. Widely used for paired compressed air supply in industrial automation pneumatic control circuits.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PUN-6X1-S-1-DUO-B |
| MPN | 197620 |
| Product Type | Pneumatic Plastic Tubing, Duo Twin Hose |
| Series | PUN Series |
| Material | Polyurethane (PU) |
| Size | OD 6mm, Wall thickness 1mm, ID 4mm, twin hose |
| Color | Blue (B) |
| Min Bending Radius | 15 mm |
| Working Medium | Compressed air (ISO 8573-1:2010 [7:-:-]) |
| Working Pressure | -0.95 ~ 10 bar |
| Ambient Temperature | -20 ~ 60 ℃ |
| Feature | Twin duo connected tube, flexible, easy routing, good wear resistance |
| Compliance | RoHS compliant, PWIS conformity |
| Application | Pneumatic Automation System |
