VHER-P-H-B43E-G18
Product Overview

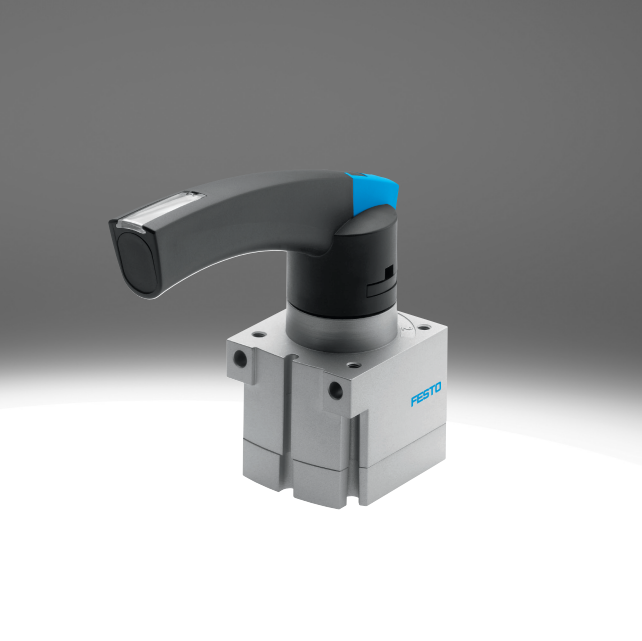

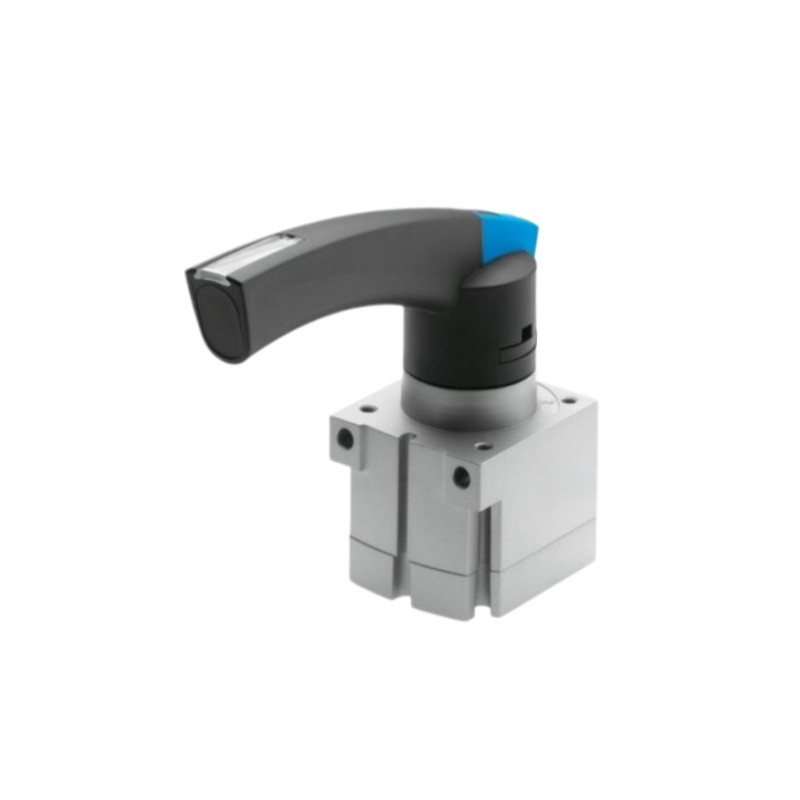

FESTO VHER-P-H-B43E-G18 hand lever valve belongs to VHER series manual pneumatic valve. It is a 4/3-way valve with mid-position exhausted function, all ports G1/8 BSPP female thread. Operated by top hand lever with detent locking, nominal flow rate up to 600 L/min. PA housing with NBR seal, supports through-hole or front panel mounting, suitable for manual control of double-acting cylinders in pneumatic automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | VHER-P-H-B43E-G18 |
| Order No. | 3488210 |
| Product Series | VHER |
| Product Type | Hand Lever Valve / Manual Pneumatic Valve |
| Valve Function | 4/3-way, mid-position exhausted |
| Actuation Type | Hand lever, top actuation |
| Pneumatic Port | G1/8 BSPP female thread (all ports) |
| Nominal Flow Rate | 600 L/min |
| Operating Pressure | 0 ~ 10 bar |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Housing Material | PA Plastic |
| Seal Material | NBR |
| Width | 51 mm |
| Weight | 260 g |
| Mounting | Through-hole / Front panel mounting |
| Corrosion Resistance Class | CRC 2 |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
