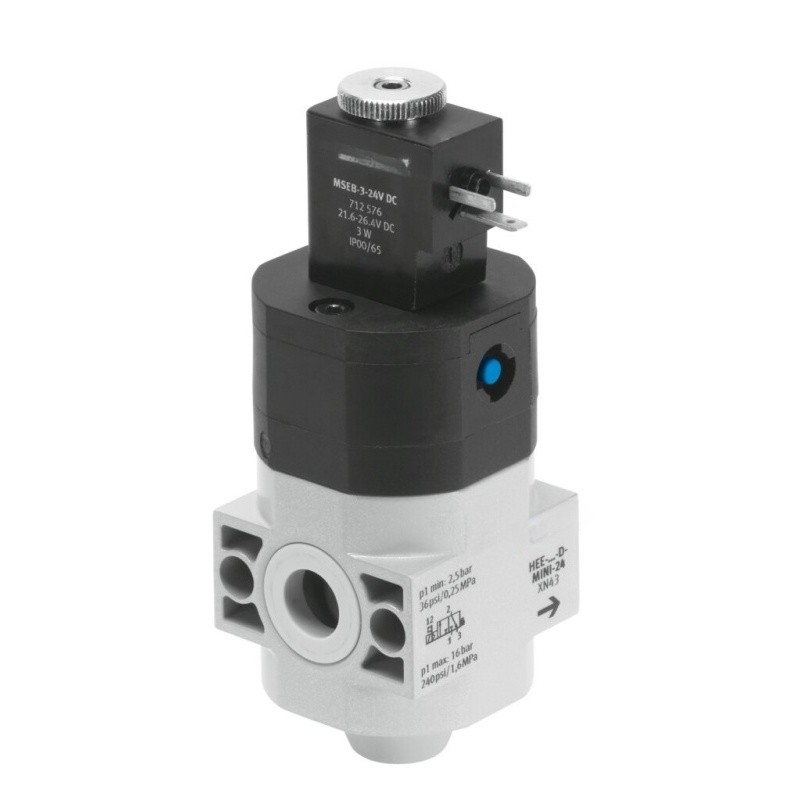

HEE-D-MINI-24
Product Overview
FESTO HEE-D-MINI-24 belongs to HEE series electric on/off safety start valve, matched with FRC MINI air service unit. 3/2-way monostable piston slide valve with soft sealing, mechanical spring reset. DC24V coil power 2.5W, G1/8 pneumatic port, working pressure range 2.5~16 bar. Equipped with detenting manual override, non-throttleable exhaust function. LABS (PWIS) compliant, suitable for paint spraying production line. Die-cast aluminium housing, NBR seals, 100% continuous duty cycle. It can cut off or supply compressed air safely for pneumatic system, widely used as air start safety valve in industrial pneumatic automation.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | HEE-D-MINI-24 |
| Order No. | 172956 |
| Product Series | HEE |
| Product Type | Electric Pneumatic On/Off Valve / Start-up Safety Valve |
| Valve Function | 3/2-way, closed, monostable |
| Structure | Piston slide valve, soft seal |
| Actuation | Electric pilot operated, mechanical spring reset |
| Pneumatic Port | G1/8 |
| Operating Pressure | 2.5 ~ 16 bar |
| Operating Voltage | DC 24V |
| Coil Power | 2.5 W |
| Voltage Tolerance | ±10% |
| Duty Cycle | 100% continuous operation |
| Manual Override | Detenting type |
| Exhaust Function | Non-throttleable |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium Temperature | -10 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L, for FRC MINI service unit |
| Electrical Connection | Type C plug DIN EN 175301-803 |
| Mounting | Any mounting position, inline installation |
| Corrosion Resistance Class | CRC 2 |
| Weight | 223 g |
| Certificate | RoHS, CE |
| Origin | Germany |
| Condition | New Original |
