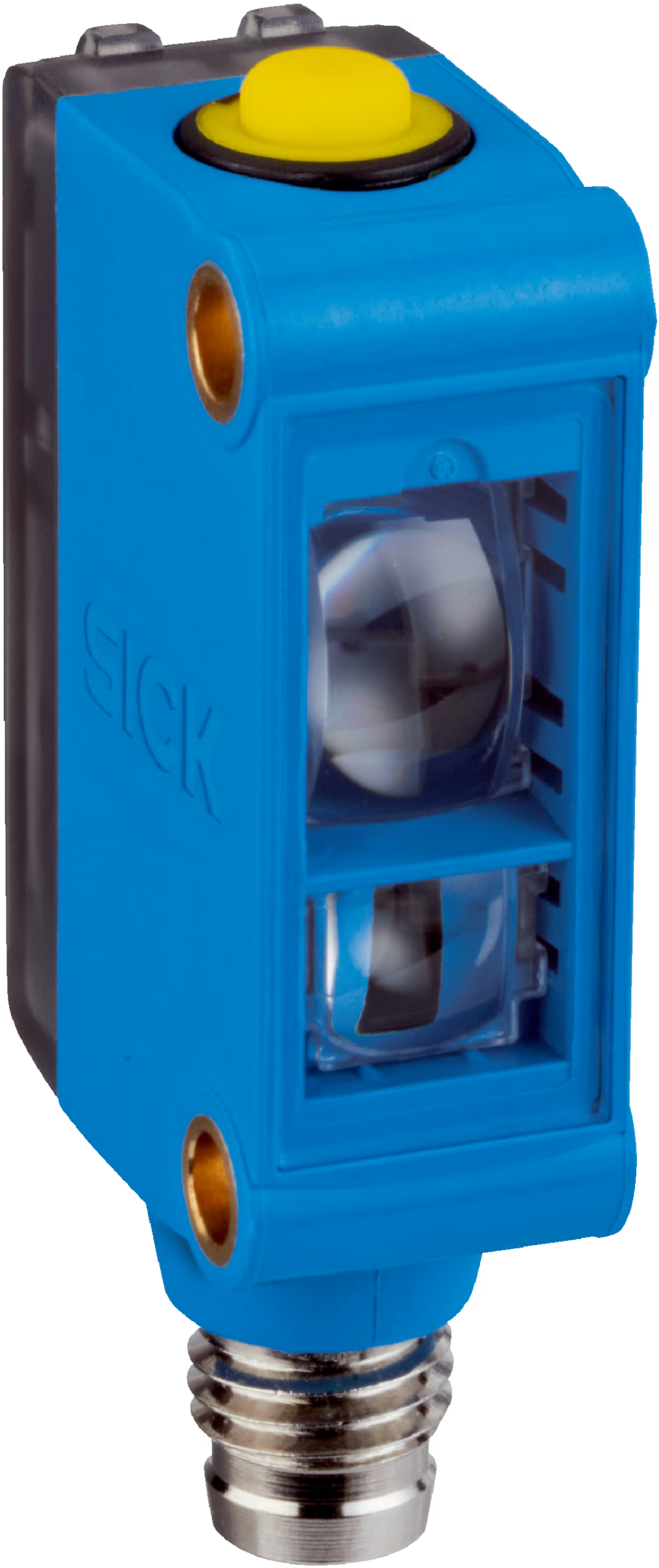

CSM-WP117A1P 1122732
Product Overview
CSM-WP117A1P, Order No. 1122732, belongs to SICK CSM Mini color sensor series. It adopts RGB LED light source with slim 1.9 mm × 9.4 mm vertical light spot, suitable for narrow color mark detection. Rated sensing distance is 12.5 mm and tolerance ±3 mm. It supports static teach-in and dynamic teach-in for stable detection of uneven or textured surfaces. It comes with 1 PNP hardware switching output and IO-Link V1.1 interface, up to 8 colors can be identified via IO-Link. Parameters can be set via teach-in button or remotely by IO-Link for diagnosis and flexible configuration. Compact miniature housing, M8 4-pin male connector, IP67 protection, reverse polarity and short-circuit protection. New and original genuine SICK color sensor.
| Attribute | Value |
|---|---|
| Brand | SICK |
| Model | CSM-WP117A1P |
| Order No. | 1122732 |
| Series | CSM Mini |
| Product Type | Color Sensor |
| Sensing Distance | 12.5 mm |
| Distance Tolerance | ±3 mm |
| Light Source | RGB LED (470 nm, 525 nm, 640 nm) |
| Spot Size | 1.9 mm × 9.4 mm |
| Connection | M8 4-pin male connector |
| Interface | IO-Link V1.1 |
| Supply Voltage | 12 ~ 24 V DC |
| Output Type | 1 × PNP |
| Switching Frequency | 1.7 kHz |
| Response Time | 300 µs |
| Housing Protection | IP67 |
| Operating Temperature | -10°C ~ +55°C |
| Dimension | 12 mm × 31.5 mm × 21 mm |
| Net Weight | 20.00 g |
| Housing Material | ABS plastic, PMMA optics |
| Condition | New Original |
