VUVG-LK14-M52-AT-G18-1H2L-S
Product Overview

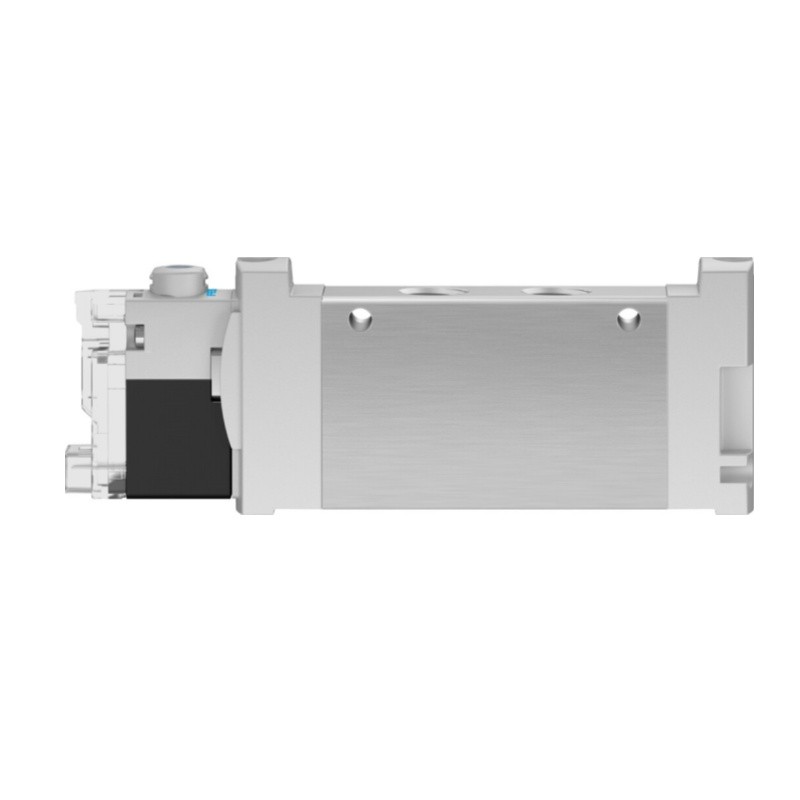

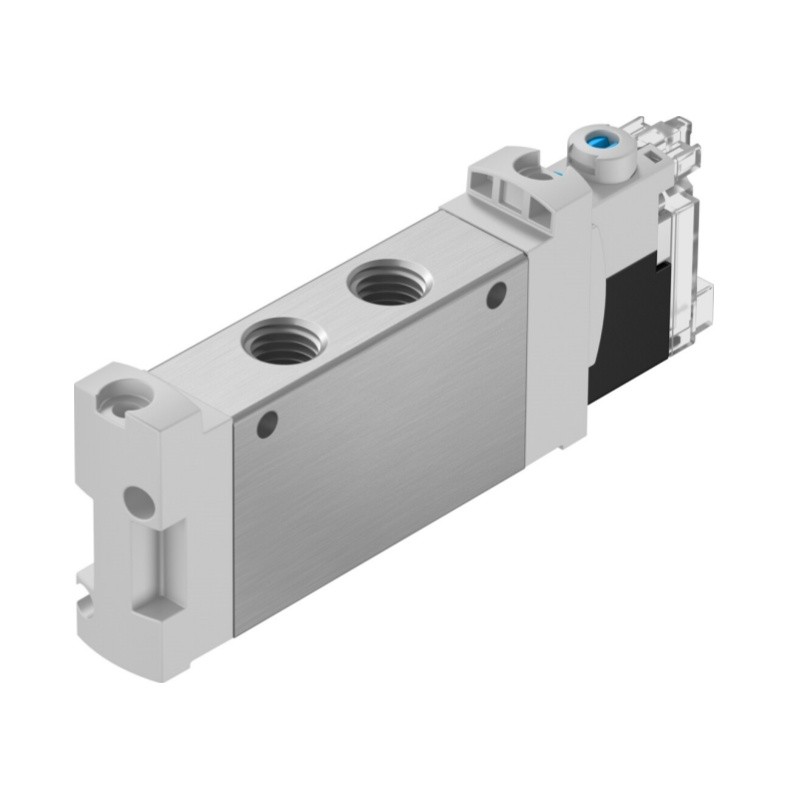

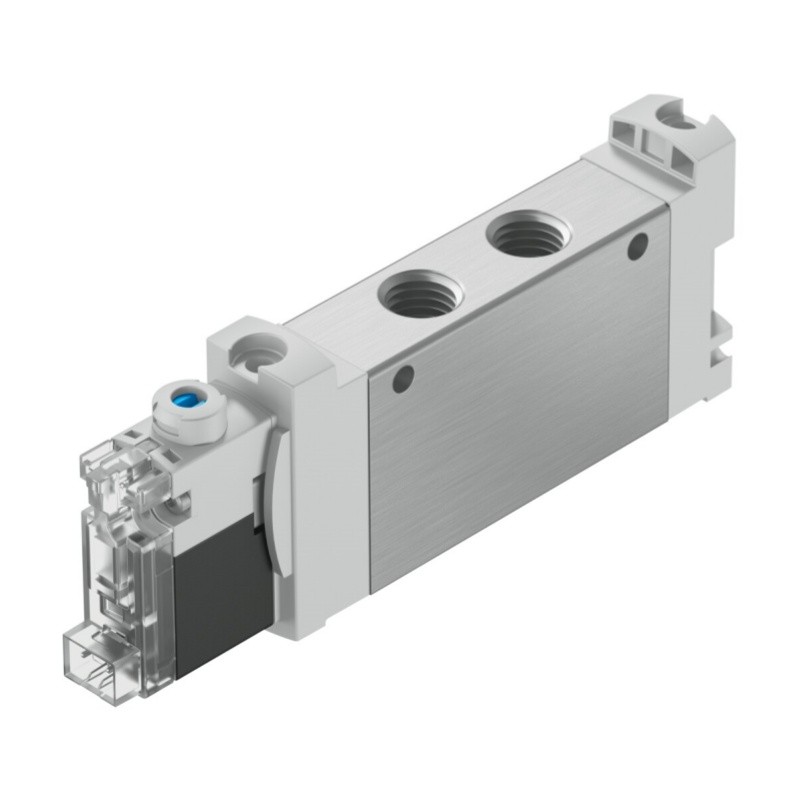

Festo VUVG-LK14-M52-AT-G18-1H2L-S (Part No.8042563) belongs to VUVG high-performance compact solenoid valve series. It is a 5/2-way monostable piston slide valve with soft sealing, internal pilot air supply. 14mm slim body, supports manifold rail assembly to build valve island, widely used for pneumatic cylinder actuation in automation lines.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VUVG-LK14-M52-AT-G18-1H2L-S |
| Part Number | 8042563 |
| Product Type | Solenoid Valve / Piston slide valve |
| Series | VUVG Series |
| Valve Function | 5/2-way, monostable |
| Valve Width | 14 mm |
| Nominal Flow | 660 l/min |
| Operating Voltage | 24V DC |
| Coil Power | 0.8 W |
| Operating Pressure | 2.5 ~ 7 bar |
| Control Type | Pilot operated, internal pilot air |
| Reset Type | Pneumatic spring |
| Pneumatic Working Port | G1/8 |
| Sealing Type | Soft seal |
| Manual Override | Detenting & Non-detenting covered |
| Exhaust Function | Exhaust throttling optional |
| Switching Time ON | 14 ms |
| Switching Time OFF | 24 ms |
| Max Switching Frequency | 2 Hz |
| Duty Cycle | 100% |
| Protection Class | IP40 |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air permitted |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium Temperature | -5 ~ +50 ℃ |
| Mounting | On manifold rail or via through-hole, any mounting position |
| Housing Material | Wrought aluminium alloy |
| Seal Material | NBR, HNBR |
| Weight | 65 g |
| CRC Class | CRC 0 |
| LABS(PWIS) | VDMA24364 zone III |
| Certification | cULus Recognized, CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
