QSM-4H-3
Product Overview

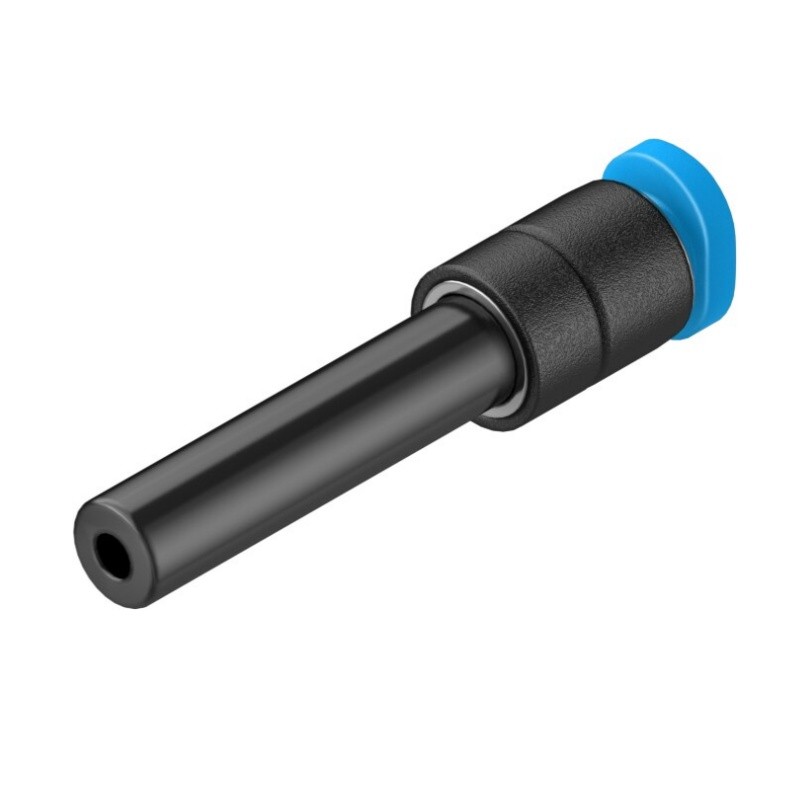

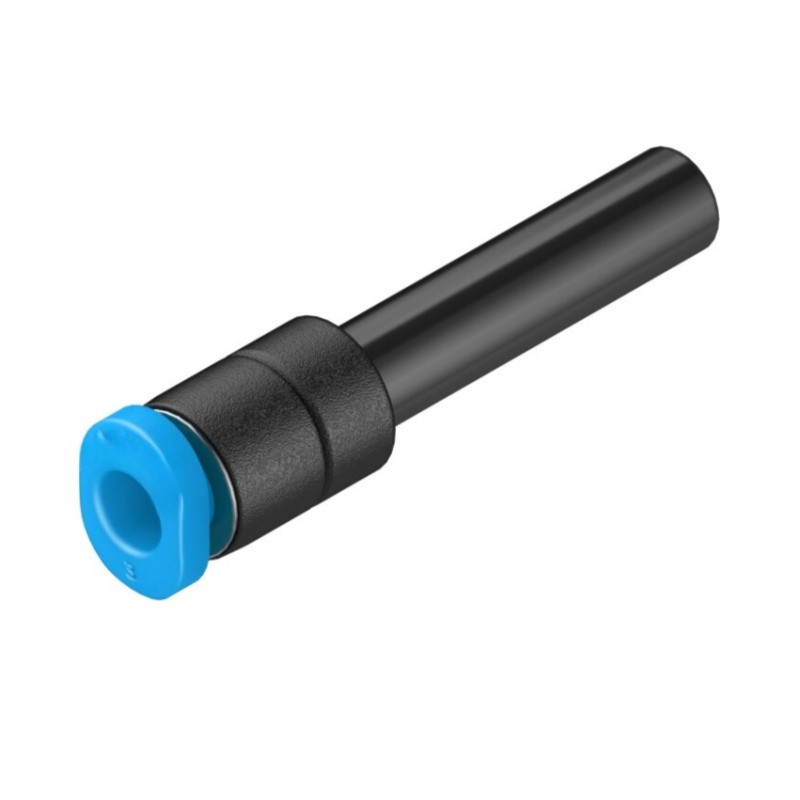

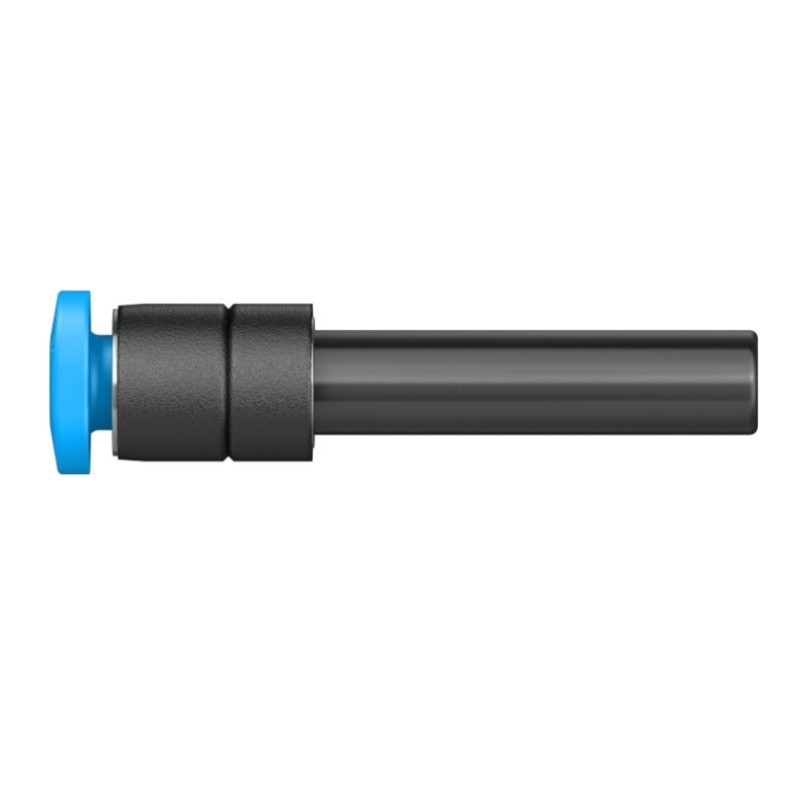

Festo QSM-4H-3 (Part No.153328) belongs to QSM mini push-in fitting series. It is a straight tube-to-tube reducing connector to convert 4mm outer diameter tubing down to 3mm tubing. Mini compact size for limited installation space, adopts push-pull quick connection structure, no tools needed for assembly and disassembly, widely used in small pneumatic and vacuum circuits.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSM-4H-3 |
| Part Number | 153328 |
| Product Type | Push-in Reducer Straight Connector / Reducer Nipple |
| Series | QSM Mini Series |
| Pneumatic Connection | Port1: push-in sleeve Ø4mm; Port2: for tubing OD 3mm |
| Nominal Size | 1.7 mm |
| Operating Pressure (full temp range) | -0.95 ~ 6 bar |
| Temperature-dependent Max Pressure | -0.95 ~ 14 bar |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-], lubricated air allowed, vacuum applicable |
| Ambient Temperature | -10 ~ +80 ℃ |
| Design Principle | Push-pull principle, tool-free assembly |
| Mounting Position | Any mounting position |
| Housing Material | PBT |
| Release Ring | POM |
| Tube Claw | High-alloy stainless steel |
| Seal Material | NBR |
| Weight | 0.8 g |
| CRC Class | CRC 1 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| RoHS | Compliant |
| Original/New | New Original |
