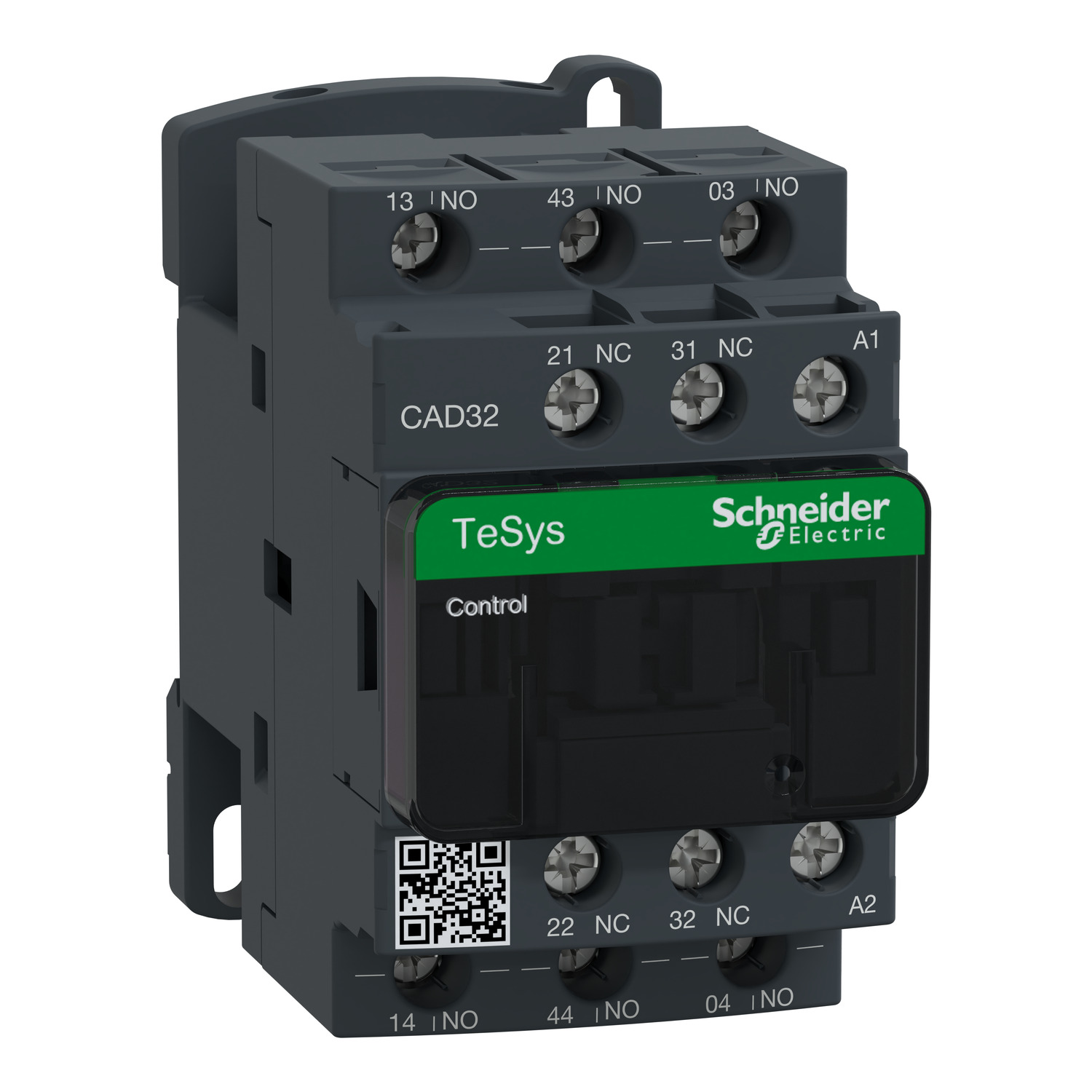

CAD32P7
| Range | TeSys TeSys Deca |
|---|---|
| Product name | TeSys CAD |
| Product or component type | Control relay |
| Device short name | CAD |
| Contactor application | Control circuit |
Utilisation category DC-13
AC-15
AC-14Pole contact composition 3 NO + 2 NC [Ue] rated operational voltage <= 690 V AC 25...400 Hz Control circuit type AC at 50/60 Hz [Uc] control circuit voltage 230 V AC 50/60 Hz [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947 [Ith] conventional free air thermal current 10 A (at 60 °C) Irms rated making capacity 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1[Icw] rated short-time withstand current 100 A - 1 s
120 A - 500 ms
140 A - 100 msAssociated fuse rating 10 A gG conforming to IEC 60947-5-1 [Ui] rated insulation voltage 600 V UL certified
600 V CSA certified
690 V conforming to IEC 60947-5-1Mounting support Rail
PlateConnections - terminals Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable endTightening torque 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2Control circuit voltage limits 0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 HzOperating time 12...22 ms coil energisation and NO closing
4...12 ms coil de-energisation and NO opening
4...19 ms coil energisation and NC opening
6...17 ms coil de-energisation and NC closingMechanical durability 30 Mcycles Maximum operating rate 180 cyc/mn Inrush power in VA 70 VA 50 Hz (at 20 °C) Hold-in power consumption in VA 8 VA 50 Hz (at 20 °C) Minimum switching voltage 17 V Minimum switching current 5 mA Non-overlap time 1.5 ms on energisation between NC and NO contact
1.5 ms on de-energisation between NC and NO contactInsulation resistance > 10 MOhm Mechanical robustness Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6Height 77 mm Width 45 mm Depth 84 mm Net weight 0.58 kg
