6ES7323-1BL00-0AA0

Attribute Name	Value
Brand	Siemens
Model	6ES7323-1BL00-0AA0
Series	SIMATIC S7-300, SM323 Digital Input Output Module
Type	PLC Digital Input Output Module
I/O Spec	16DI / 16DO, DC24V
Input	DC24V, sink/source compatible
Output	Transistor output DC24V, 0.5A per channel, max 4A per group
Isolation	Optocoupler isolation, isolation between I/O and backplane bus
Diagnosis	No module diagnosis
Connector	40-pole front connector
Power Supply	DC24V
Mounting	DIN rail, S7-300 backplane
Origin	Ger

INQUIRY

Product Details

Product Tags

Product Overview

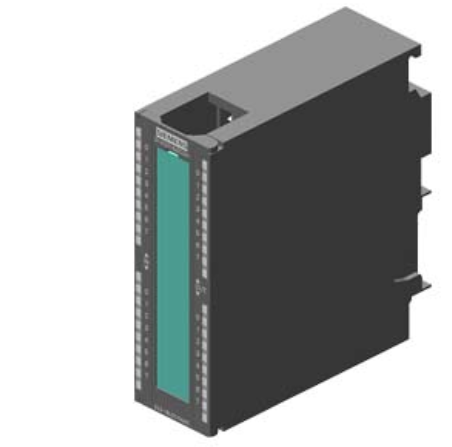

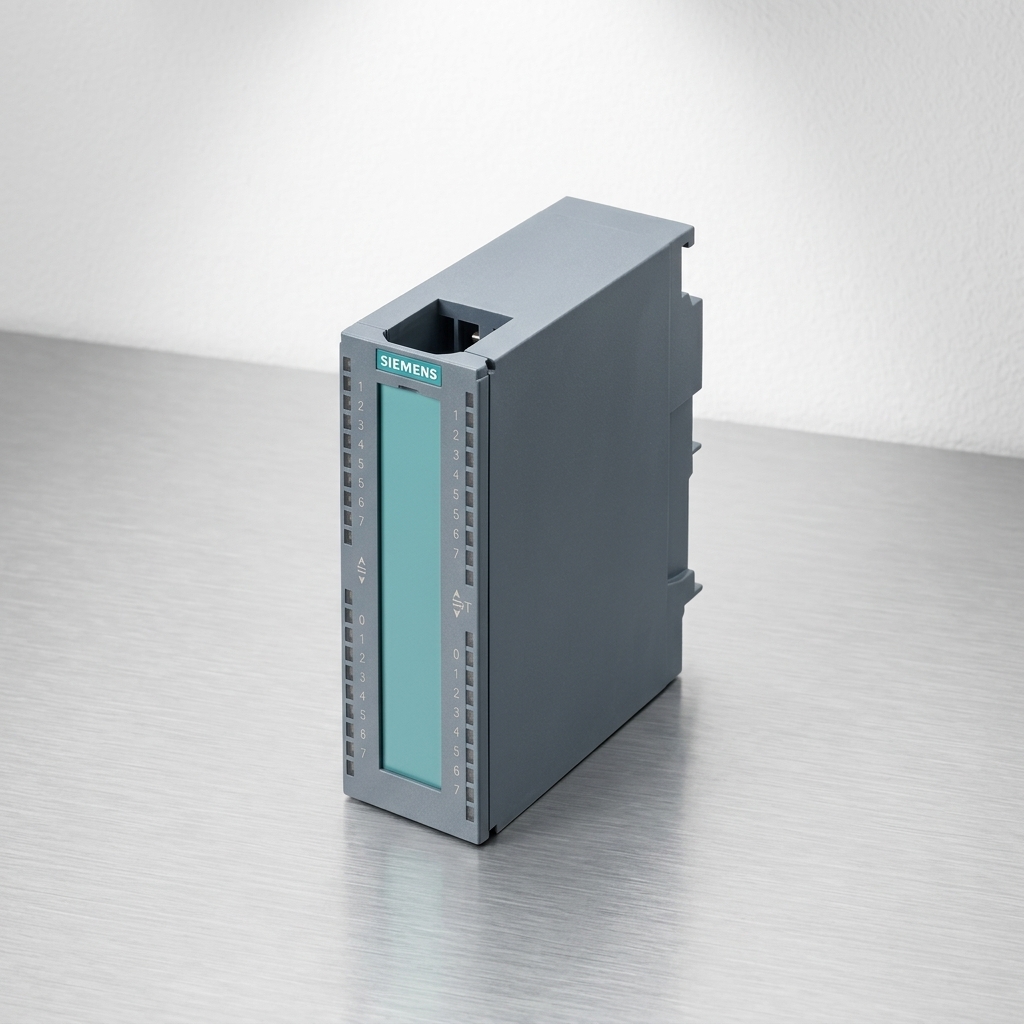

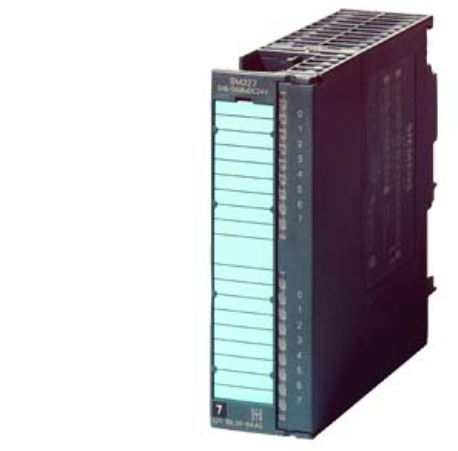

Siemens 6ES7323-1BL00-0AA0 is SM323 digital input/output expansion module for SIMATIC S7-300 PLC system. It provides 16 channels DC24V digital input and 16 channels DC24V transistor digital output. Each output channel supports 0.5A, max 4A per group. Adopts optocoupler isolation between I/O circuit and backplane bus. It requires 40-pole front connector, DC24V power supply, DIN rail mounted on S7-300 rack. This model is discontinued and supplied as spare part for maintenance replacement.

Attribute Name	Value
Brand	Siemens
Model	6ES7323-1BL00-0AA0
Series	SIMATIC S7-300, SM323 Digital Input Output Module
Type	PLC Digital Input Output Module
I/O Spec	16DI / 16DO, DC24V
Input	DC24V, sink/source compatible
Output	Transistor output DC24V, 0.5A per channel, max 4A per group
Isolation	Optocoupler isolation, isolation between I/O and backplane bus
Diagnosis	No module diagnosis
Connector	40-pole front connector
Power Supply	DC24V
Mounting	DIN rail, S7-300 backplane
Origin	Germany
Warranty	1 year
Condition	New Original, discontinued spare part
Net Weight	0.32kg
Gross Weight	0.50kg
