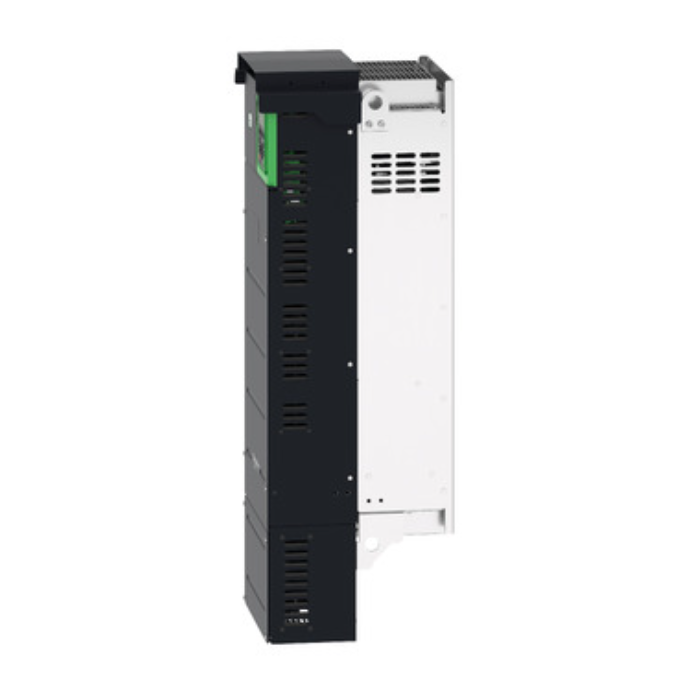

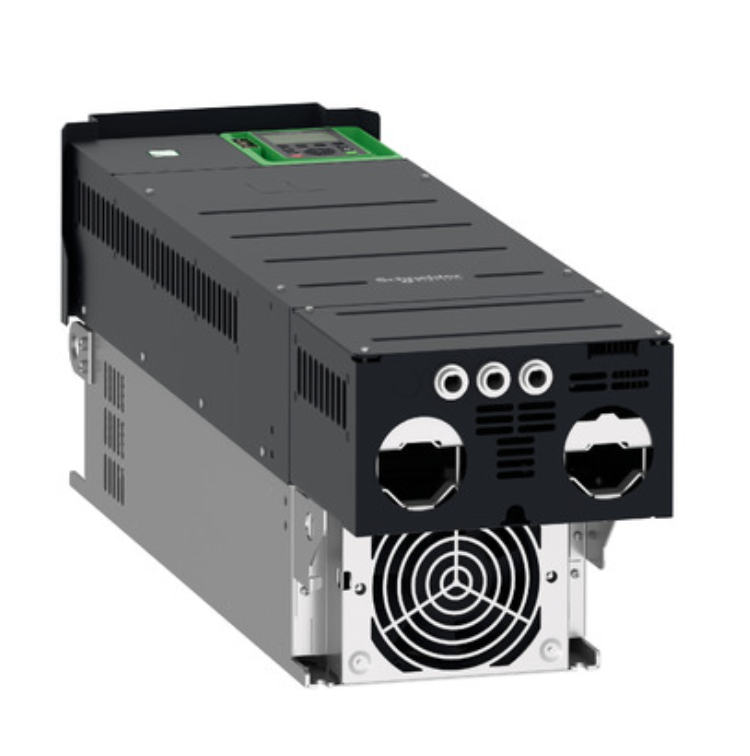

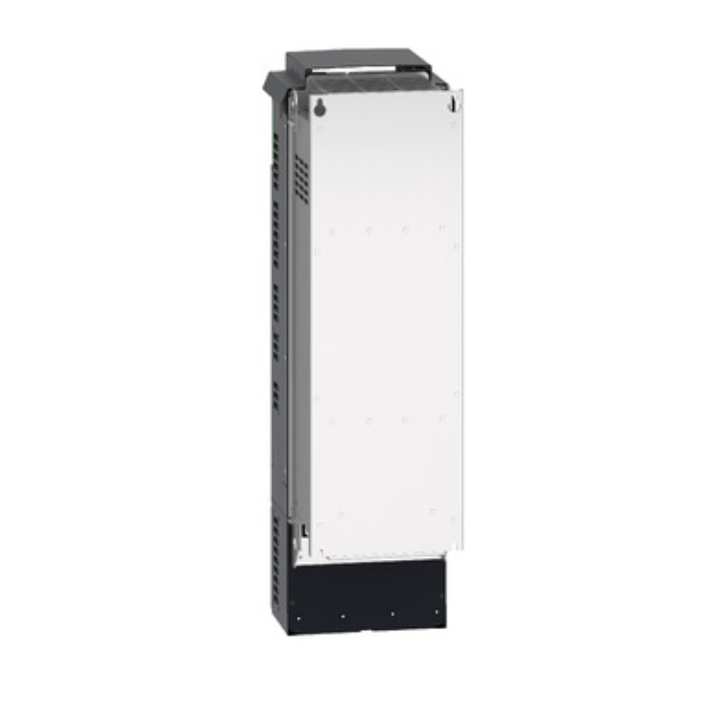

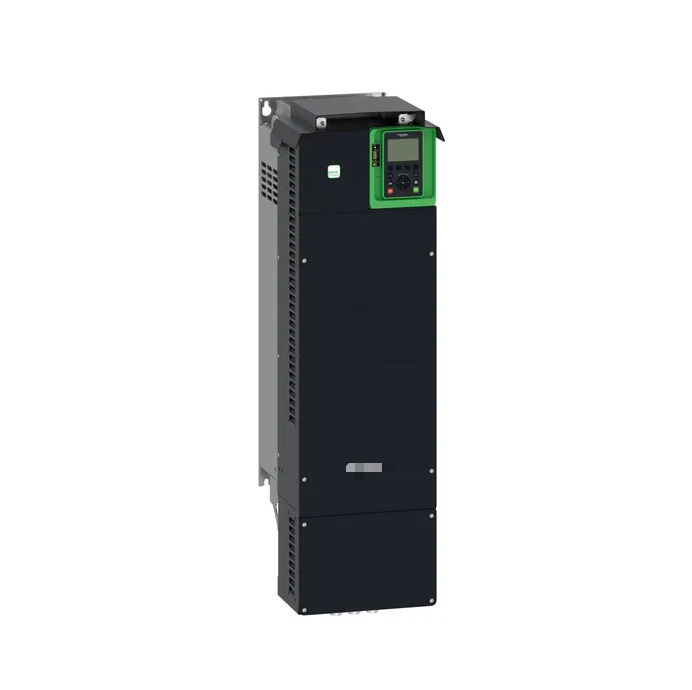

ATV930D90N4

ATV930D90N4
Attribute Name	Value
Brand	Schneider Electric
Model	ATV930D90N4
Series	Altivar Process ATV930
Type	Variable Speed Drive / VFD
Motor Power	90kW Normal duty,75kW Heavy duty
Rated Voltage	380~480V 3Phase
Output Current	170A(Normal),145A(Heavy)
IP Rating	IP21
Built-in Brake Unit	Yes
Cooling	Forced convection
Communication	Modbus TCP,Modbus RTU,EtherNet/IP
Condition	New Original
Net Weight	66.40kg
Gross Weight	73.60kg

Product Details

Product Tags

Product Overview

Schneider ATV930D90N4 belongs to Altivar Process ATV930 series, high-performance industrial variable speed drive designed for process industry applications. This 3-phase 380~480V VFD supports asynchronous motors and synchronous reluctance motors. It features IP21 protection grade and integrated braking chopper, equipped with STO and SS1 safety functions. Built-in energy monitoring, asset monitoring and drift detection functions support predictive maintenance and energy optimization. It is widely used for pumps, fans, compressors and conveyors in process control systems.

Attribute NameValue
BrandSchneider Electric
ModelATV930D90N4
SeriesAltivar Process ATV930
TypeVariable Speed Drive / VFD
Motor Power90kW Normal duty,75kW Heavy duty
Rated Voltage380~480V 3Phase
Output Current170A(Normal),145A(Heavy)
IP RatingIP21
Built-in Brake UnitYes
CoolingForced convection
CommunicationModbus TCP,Modbus RTU,EtherNet/IP
ConditionNew Original
Net Weight66.40kg
Gross Weight73.60kg
