CM30-16BPP-EC1 6058153
Product Overview

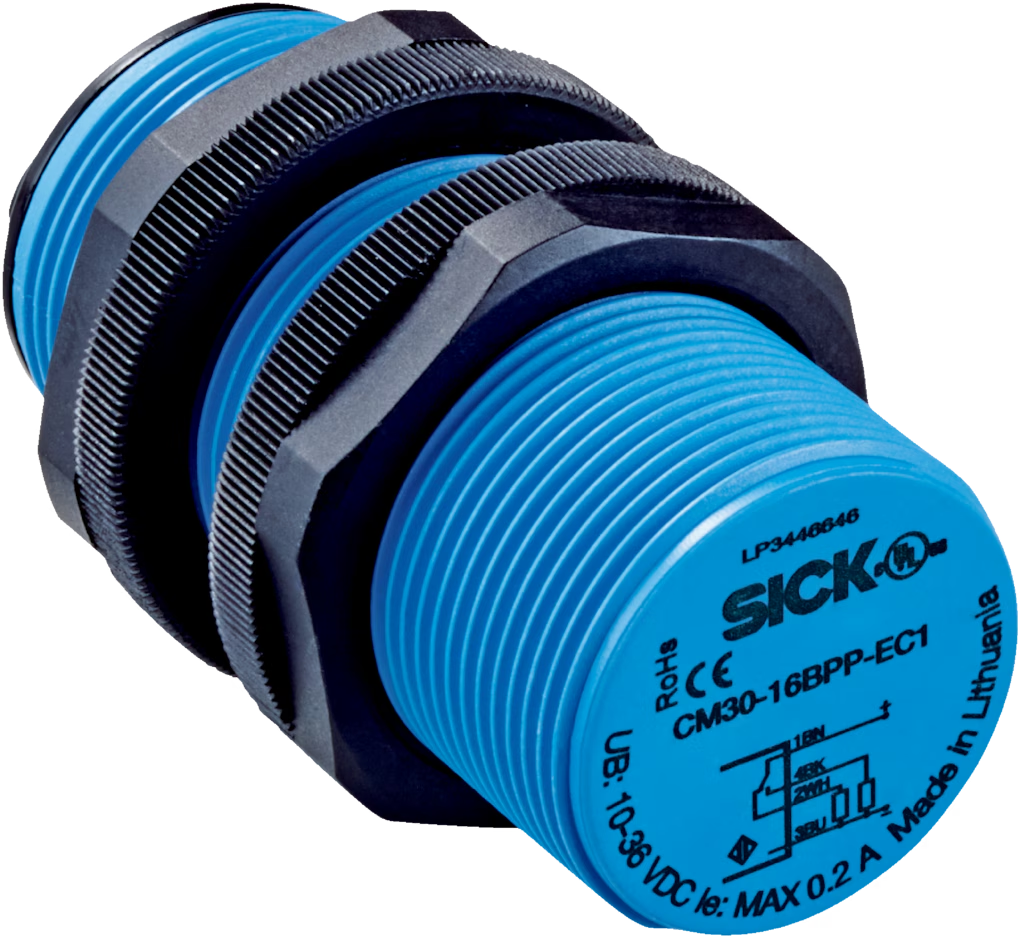

New original SICK CM30-16BPP-EC1 capacitive proximity sensor, part number 6058153, CM series M30 threaded flush mount type. It features 16 mm rated sensing distance, complementary PNP NO+NC output, 10–36 V DC power supply, max 200 mA switching current and 50 Hz switching frequency. Equipped with M12 4-pin male connector, IP67/IP68/IP69K high protection grade, PBT plastic housing, adjustable sensitivity by potentiometer. Wide working temperature from -30℃ to +85℃, stable performance for harsh industrial environments. Widely used for material level detection, object counting, position monitoring in automation, packaging, conveyor systems. We supply genuine industrial control sensors with fast delivery and reliable after-sales service.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CM30-16BPP-EC1 |
| Part No. | 6058153 |
| Series | CM |
| Sensor type | Capacitive proximity sensor |
| Sensing distance | 16 mm |
| Thread size | M30×1.5 |
| Installation | Flush mount |
| Output type | PNP, NO+NC complementary |
| Wiring | DC 4-wire |
| Connection | M12 male, 4-pin |
| Supply voltage | 10–36 V DC |
| Max switching current | 200 mA |
| Switching frequency | 50 Hz |
| IP rating | IP67, IP68, IP69K |
| Housing material | PBT plastic |
| Operating temperature | -30 ℃ ~ +85 ℃ |
| Feature | Sensitivity adjustable by potentiometer |
| Weight(net) | 0.11 kg |
| Weight(gross) | 0.18 kg |
| Certificate | RoHS |
