QS-10
Product Overview

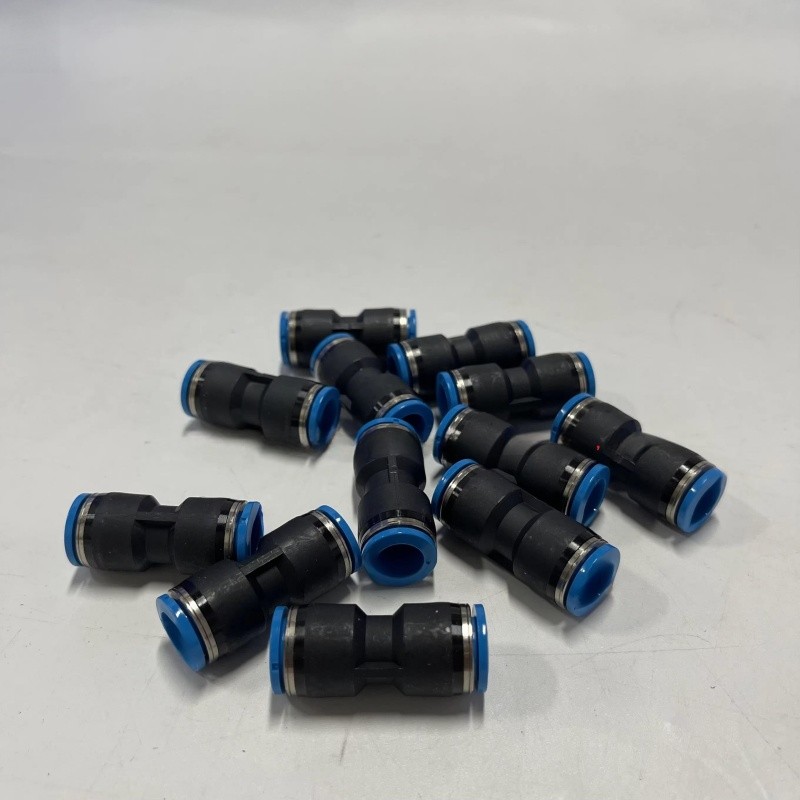

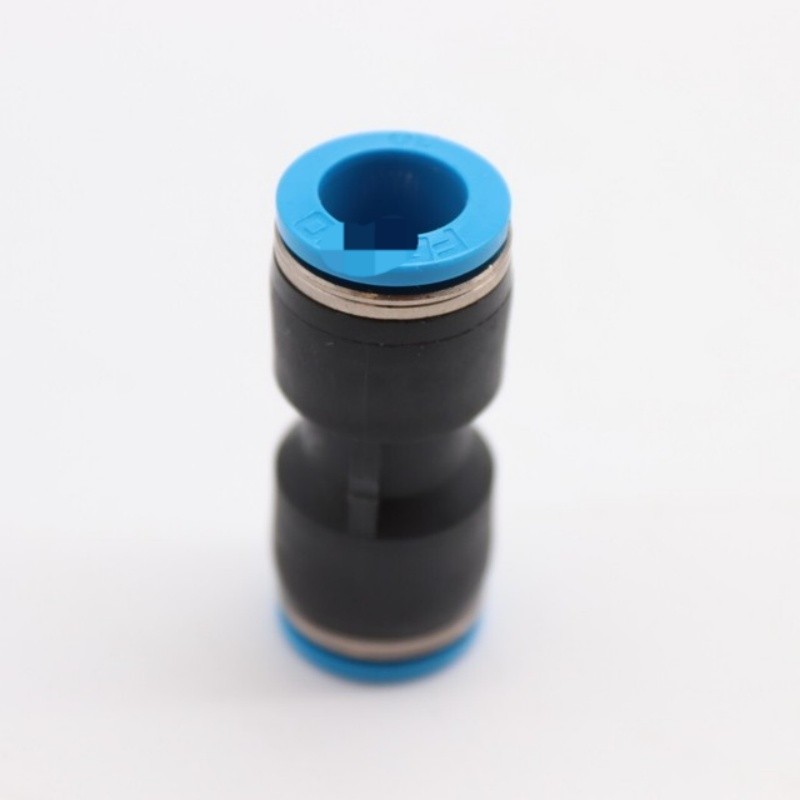

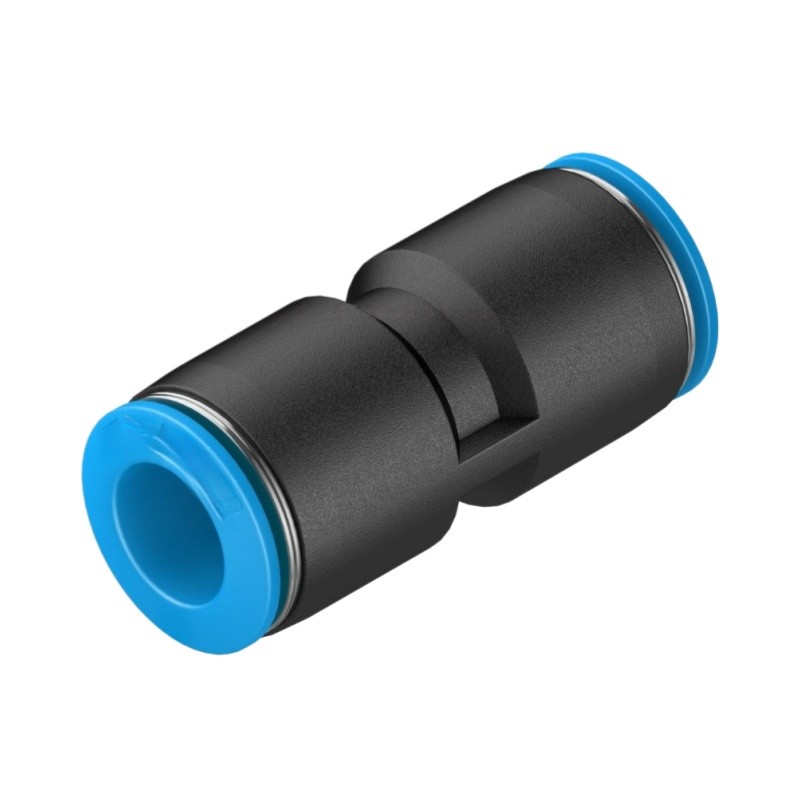

QS-10, Part No.153076, belongs to Festo QS series tube-to-tube push-in fitting. Both ends accept 10mm OD pneumatic tube, adopting push-pull quick connection principle without any thread. Tubes can be inserted and removed rapidly without tools. It is used to extend and connect same-diameter pneumatic pipelines, featuring stable sealing and easy maintenance, widely used in medium flow pneumatic circuits of automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QS-10 |
| Part No. | 153076 |
| Type | Straight push-in fitting, tube-to-tube |
| Tube OD | 10 mm |
| Nominal bore | 7.5 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 20.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, both sides for 10mm tube, no thread, tool-free assembly |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
