151990 U-1-B
Product Overview
Item No: 151990 Model: U-1-B Brand: Festo Type: Pneumatic Silencer

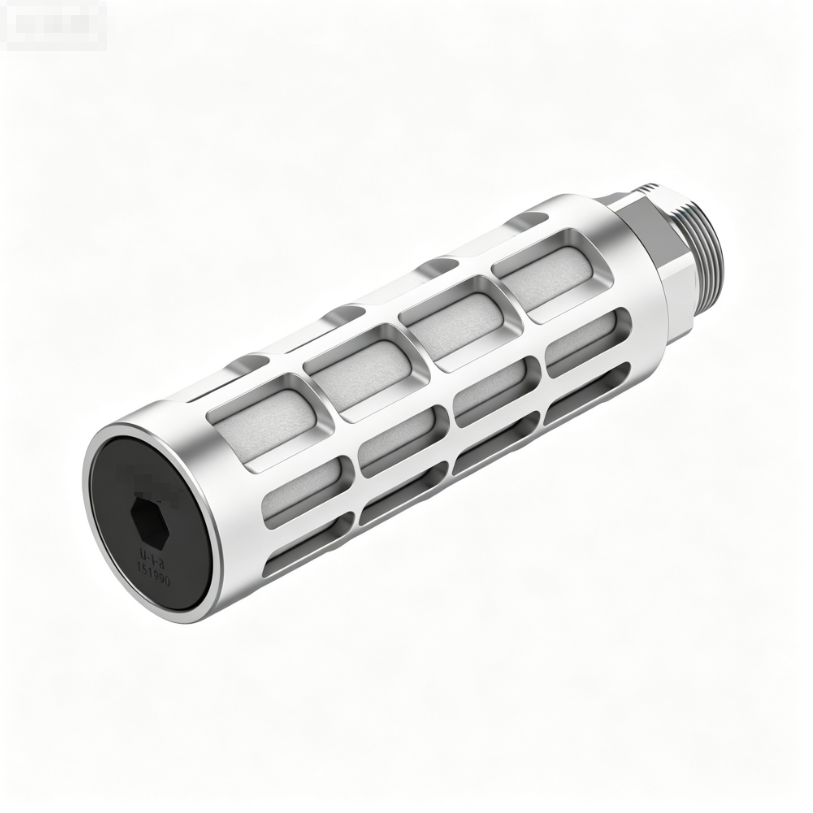

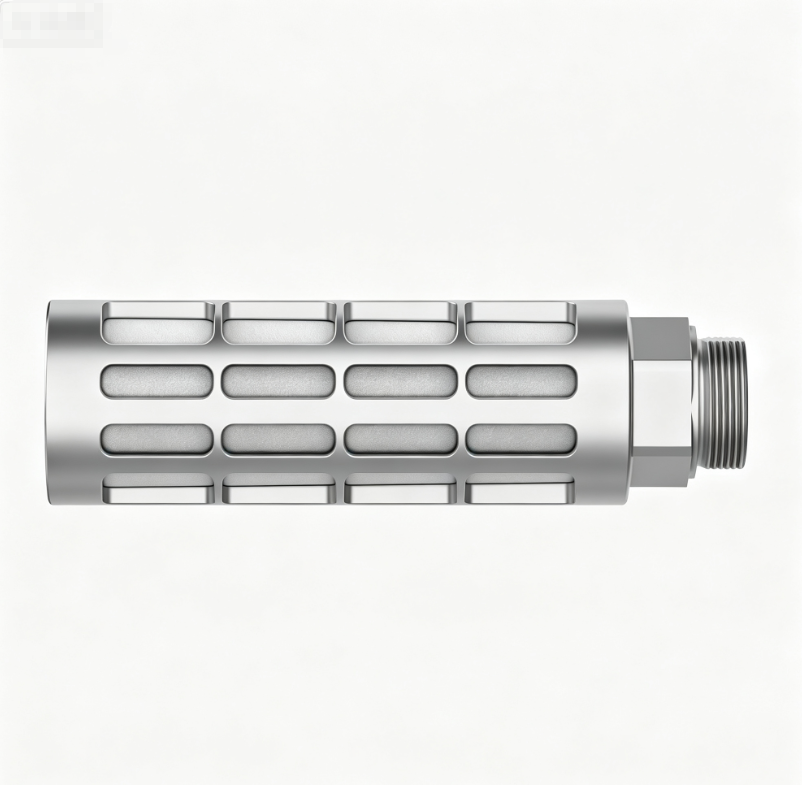

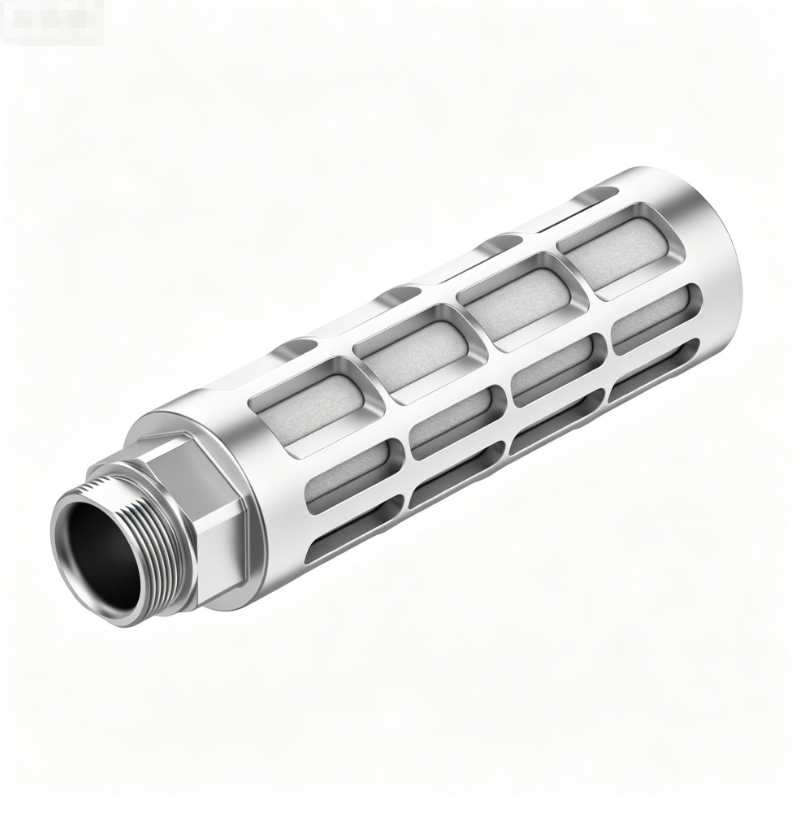

Festo U-1-B silencer (151990) belongs to U series pneumatic muffler. Installed on exhaust port of solenoid valve or cylinder for noise reduction. It features large air flow capacity, robust aluminum housing and compact structure, easy to install.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | U-1-B |
| Part No. | 151990 |
| Type | Pneumatic Silencer / Muffler |
| Connection Thread | G1 |
| Working Pressure | 0 ~ 1 MPa (0 ~ 10 bar) |
| Noise Level | 85 dB(A) |
| Flow Rate | 17500 l/min |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Ambient Temperature | -10 ~ +70 ℃ |
| Insert Material | PE |
| Housing Material | Aluminium |
| Feature | Reduce exhaust noise, large flow capacity |
| Mounting | Any mounting position |
| Weight | 233 g |
| Condition | New Original |
