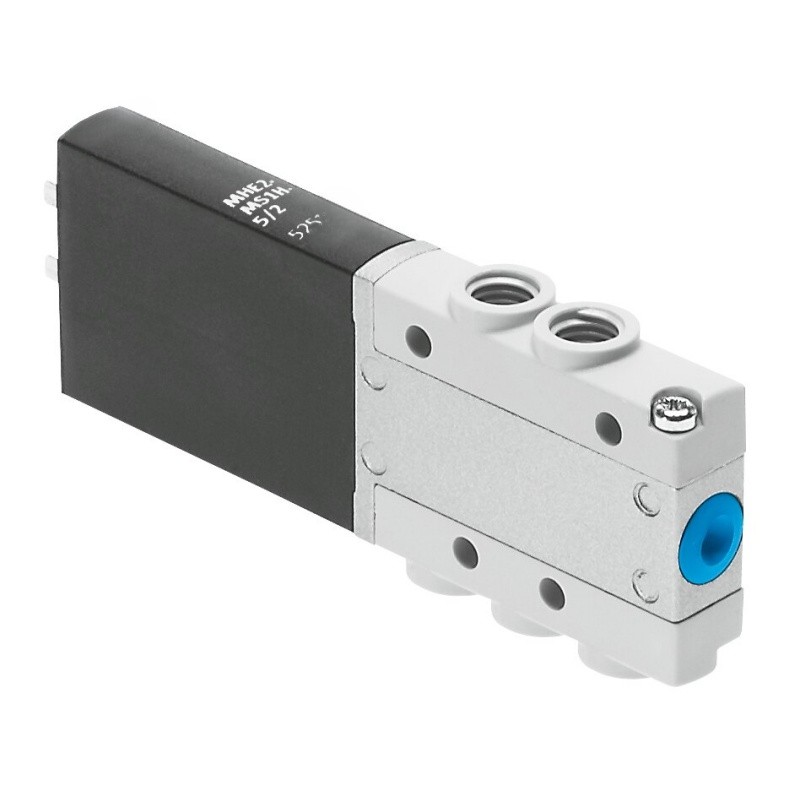

MHE2-MS1H-5/2-M7

属性名称	属性值
Brand	Festo
Model	MHE2-MS1H-5/2-M7
Part No	525113
Product Type	High-speed Solenoid Valve
Series	MHE2 Series
Valve Function	5/2-way, monostable, single solenoid
Structure	Pressure relief poppet valve, direct control
Pneumatic Port	M7 (all ports)
Nominal Width	2 mm
Nominal Flow Rate	90 L/min
Operating Pressure	-0.09 ~ 0.8 MPa (-0.9 ~ 8 bar)
Rated Voltage	DC24V
Voltage Tolerance	±10%
Coil Power	High-current phase:6.5W; Holding phase:1.625W
Max Switching Frequency	300 Hz
Swi

INQUIRY

Product Details

Product Tags

Product Description

Festo MHE2-MS1H-5/2-M7 (Part No.525113) belongs to MHE2 series high-speed direct acting poppet solenoid valve, 5/2-way monostable single solenoid design. The valve body width is only 10mm, saving installation space.

It adopts power-saving coil design, high current for pull-in and low current for holding, reducing heat generation. Max switching frequency reaches 300Hz with millisecond-level response. All air ports are M7 thread, exhaust flow can be throttled. Equipped with non-detenting manual override for commissioning test. With reverse polarity protection and spark suppression circuit, stable for continuous high frequency operation. Suitable for high-speed assembly, packaging and precision automation pneumatic circuits

Item	Specification
Brand	Festo
Model	MHE2-MS1H-5/2-M7
Part Number	525113
Type	High-speed solenoid valve
Series	MHE2
Valve Function	5/2-way, monostable single solenoid
Pneumatic Port	M7
Nominal Flow	90 L/min
Operating Pressure	-0.09 ~0.8 MPa
Rated Voltage	DC24V
Max Switching Frequency	300 Hz
Switching Time	ON:1.9ms; OFF:1.7ms
Medium	Compressed air ISO 8573-1 [7:4:4]
Ambient Temp	-5 ~ +60 ℃
Protection Class	IP65
Weight	70.00 g
Material	Coated die-cast zinc, NBR/HNBR seal
Corrosion Class	CRC2
Standard	LABS, RoHS, CE, UKCA, cULus, RCM
