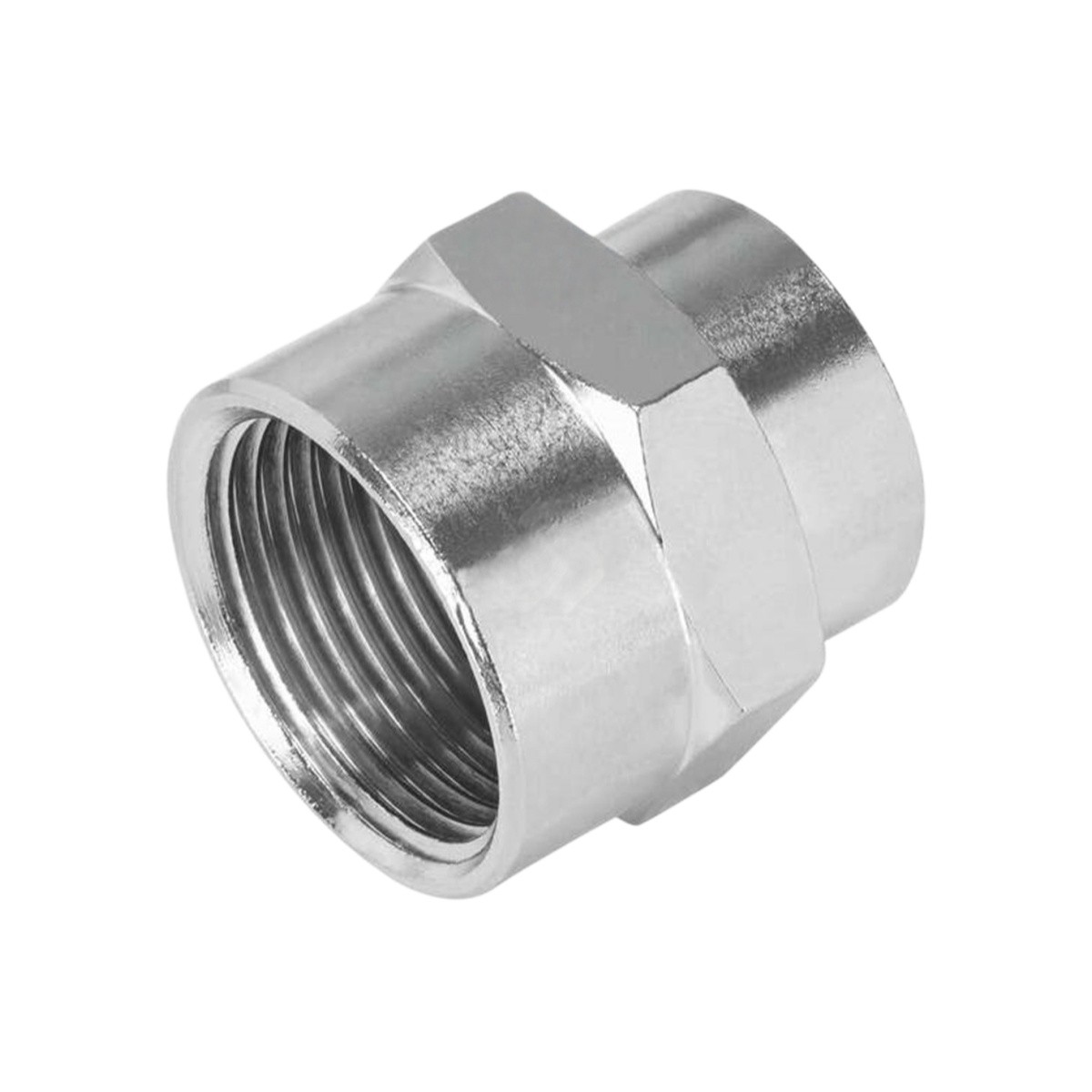

NPFC-S-2G14-F
Product Overview
New Original FESTO NPFC-S-2G14-F belongs to NPFC series straight threaded sleeve fitting. Both ports adopt G1/4 internal female thread connection, made of nickel-plated brass material. It supports working pressure from -0.95 to 50 bar and ambient temperature -20~+150℃. LABS(PWIS) compliant VDMA24364-B1/B2-L, suitable for lithium battery, packaging and paint workshop automation. Widely used for connecting two external G1/4 threaded pneumatic components in compressed air pipeline.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | NPFC-S-2G14-F |
| Order No. | 8030292 |
| Product Series | NPFC |
| Product Type | Straight threaded sleeve fitting |
| Port 1 | Internal thread G1/4 |
| Port 2 | Internal thread G1/4 |
| Operating pressure | -0.95 ~ 50 bar |
| Ambient Temperature | -20 ~ +150 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Housing material | Nickel-plated brass |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L；Double G1/4 female thread sleeve, high pressure resistance, durable brass body, for threaded pipeline connection |
| Mounting | Any mounting position |
| Corrosion Resistance Class | CRC1 |
| Weight | 18.8 g |
| Certificate | RoHS |
| Origin | Italy |
| Condition | New Original |
