186103 QS-G3/8-12
Product Overview

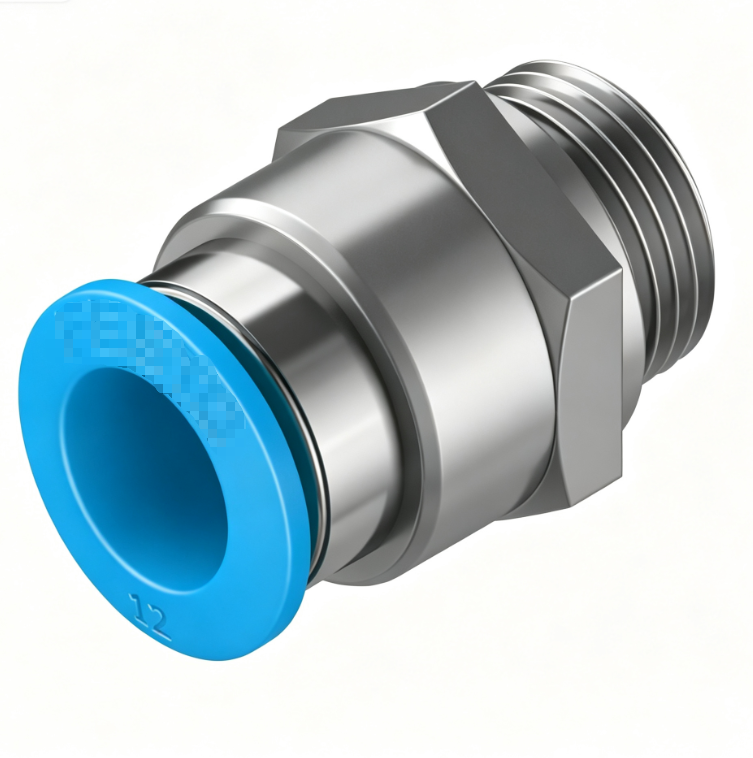

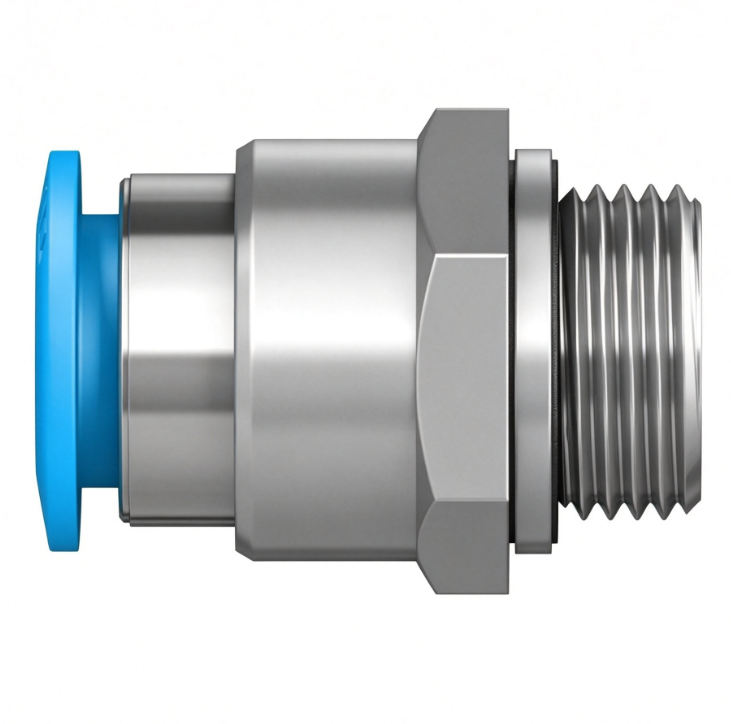

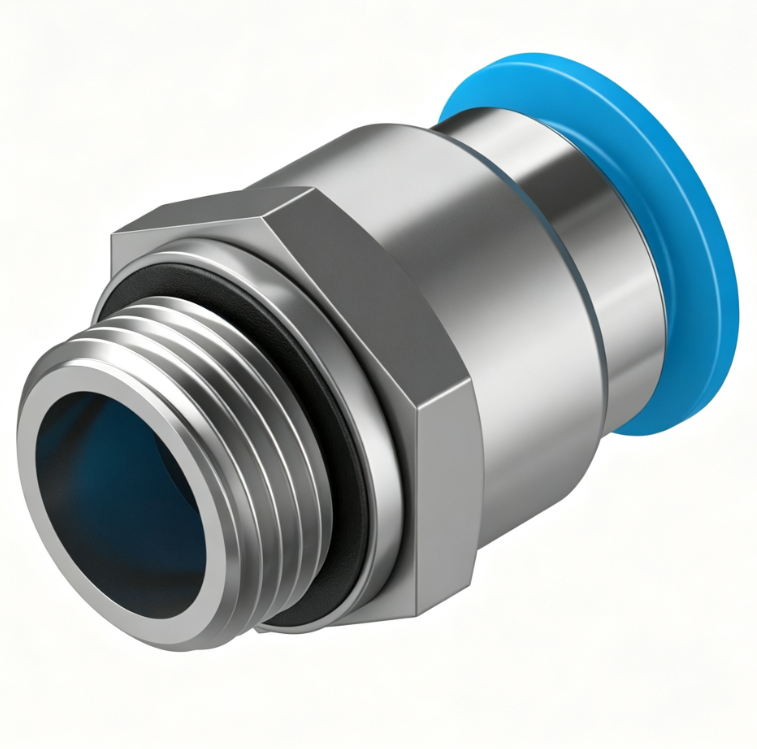

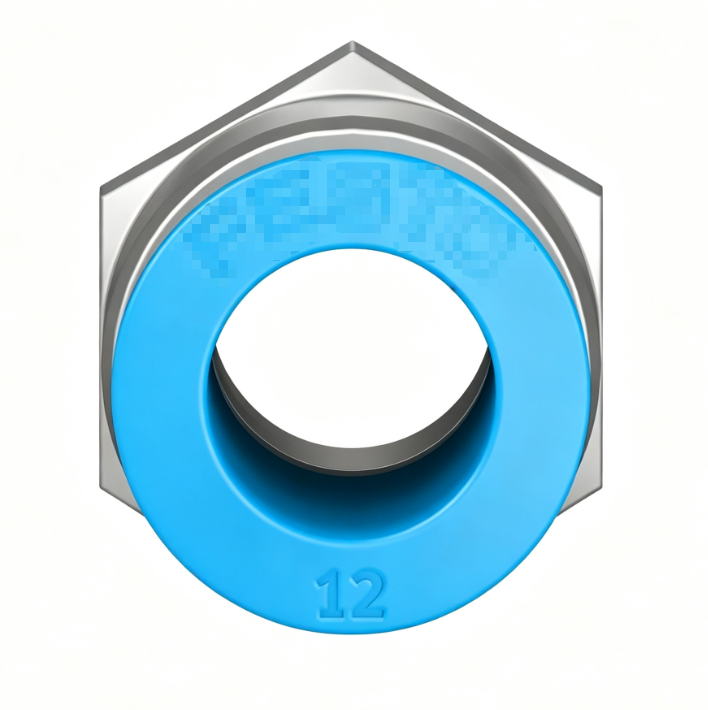

QS-G3/8-12 (Part No.186103) is Festo QS series straight push-in pneumatic fitting. It comes with G3/8 male thread, suitable for OD12mm pneumatic tubing. Constructed with nickel-plated brass body, POM release ring and NBR seal. Push-in connection design allows fast tube insertion and removal without extra tools, delivering stable leak-proof performance for compressed air and vacuum pipelines. Working pressure -0.95~10 bar, ambient temperature -20~80℃. RoHS compliant. Widely used for pneumatic circuit connection in industrial automation machinery.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QS-G3/8-12 |
| MPN | 186103 |
| Product Type | Push-in Pneumatic Fitting, Straight Quick Connector |
| Series | QS Series |
| Thread Specification | G3/8 male thread |
| Tube Size | OD12mm plastic pneumatic tube |
| Material | Body: Nickel-plated brass; Release ring: POM; Seal: NBR |
| Working Medium | Compressed air, vacuum |
| Working Pressure | -0.95 ~ 10 bar |
| Ambient Temperature | -20 ~ 80 ℃ |
| Feature | Straight push-in fitting, tool-free tube assembly, reliable leak tightness, compact structure, anti-corrosion nickel-plated brass body |
| Compliance | RoHS compliant |
| Application | Pneumatic pipeline connection, connect OD12mm PU tube to threaded port, automation compressed air & vacuum circuit |
