VUVG-B14-M52-AZT-F-1P3
Product Overview

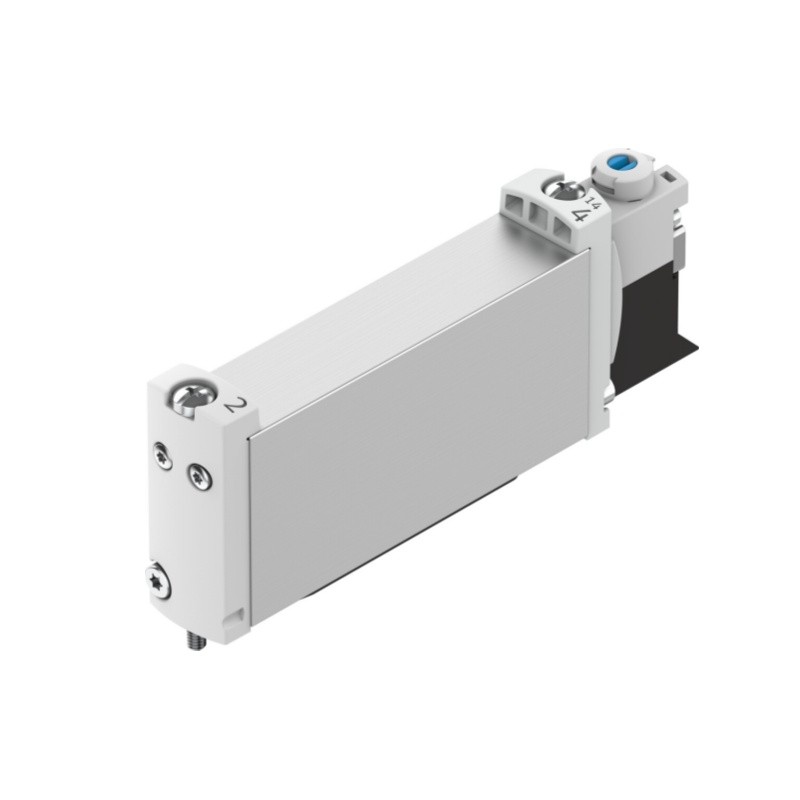

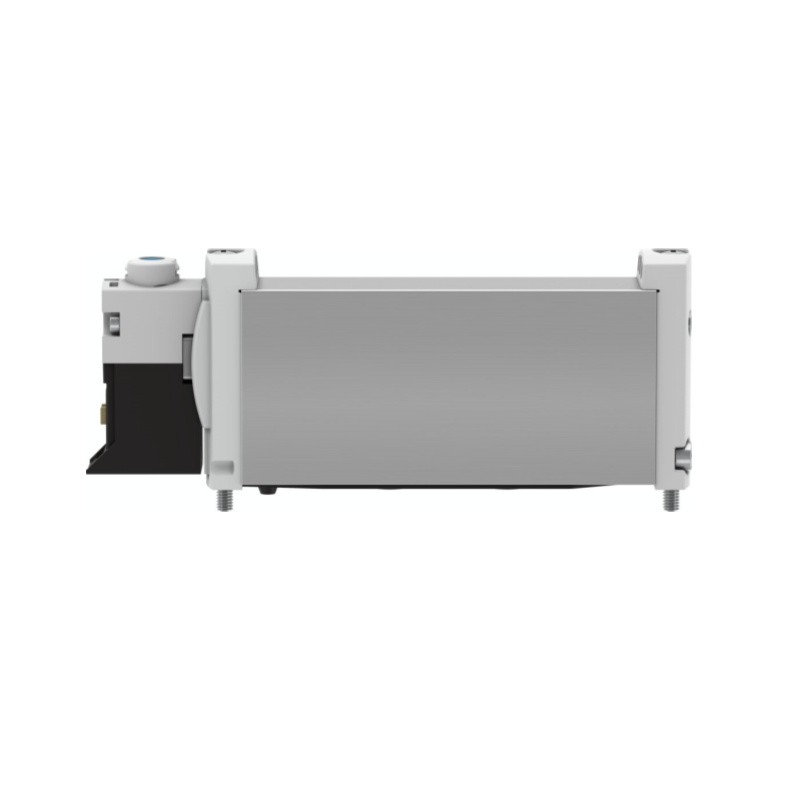

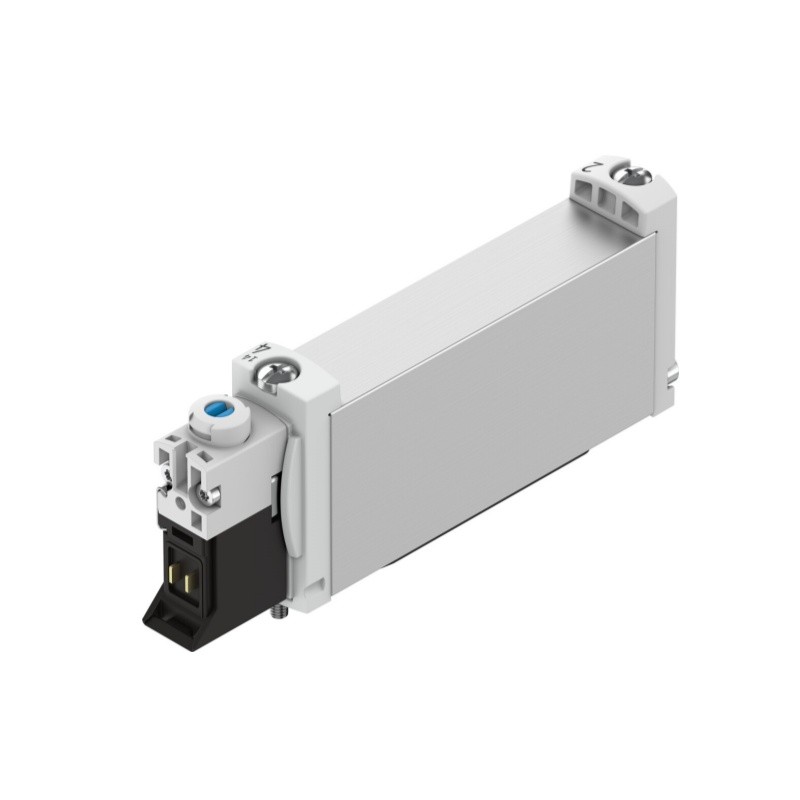

VUVG-B14-M52-AZT-F-1P3, Part No.566516, belongs to Festo VUVG series modular manifold solenoid valve. It is a 5/2-way monostable pilot operated valve with pneumatic spring return. 14mm valve width with flange interface, installed on VTUG valve terminal manifold. High flow up to 630 l/min, 24VDC low power coil, equipped with AZT detenting manual override and LED status indicator. Supports vacuum application and exhaust throttling function, widely used in modular valve island pneumatic control systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VUVG-B14-M52-AZT-F-1P3 |
| Part No. | 566516 |
| Type | 5/2-way monostable pilot operated solenoid valve |
| Valve function | 5/2 way, monostable, pneumatic spring return |
| Valve size | 14 mm |
| Nominal width | 5.6 mm |
| Standard nominal flow rate | 520 ~ 630 l/min |
| Pneumatic connection | Flange connection for manifold base |
| Operating voltage | 24 VDC |
| Power consumption | 1.0 W |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated / unlubricated |
| Working pressure | -0.9 ~ 10 bar |
| Pilot pressure | 2.5 ~ 8 bar, external pilot supply |
| Temperature range | -10 ~ 50 ℃ |
| Protection class | IP40 / IP65 (with plug socket) |
| Switching time | ON:14 ms, OFF:22 ms |
| Feature | AZT detenting manual override, LED status indicator, exhaust throttle option, vacuum suitable |
| Weight | 72.00 g |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Certification | CE, c UL us Recognized, RCM |
