VUVG-B10-T32C-AZT-F-1T1L
Product Overview

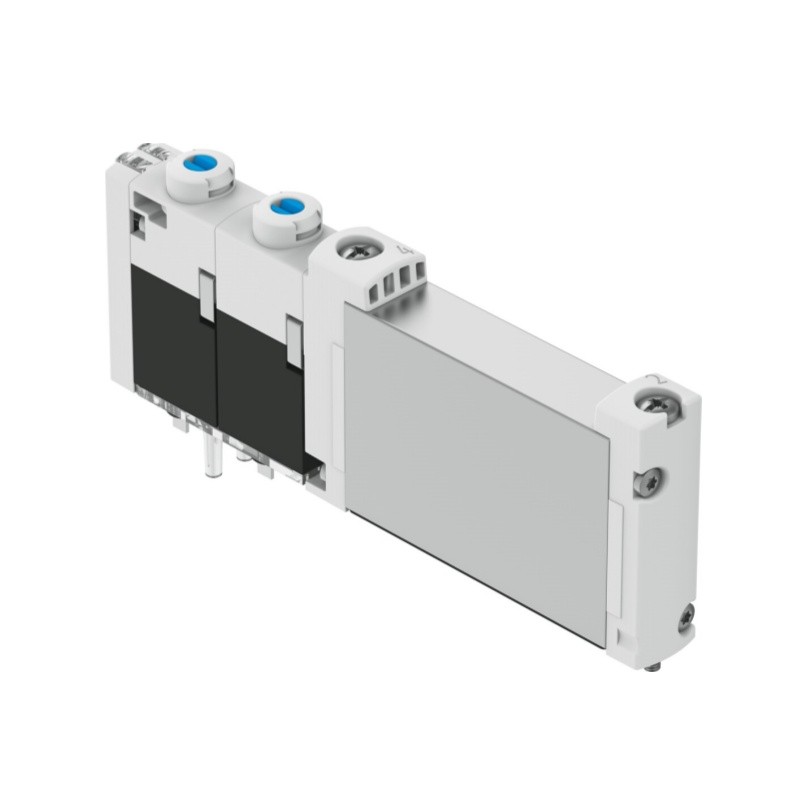

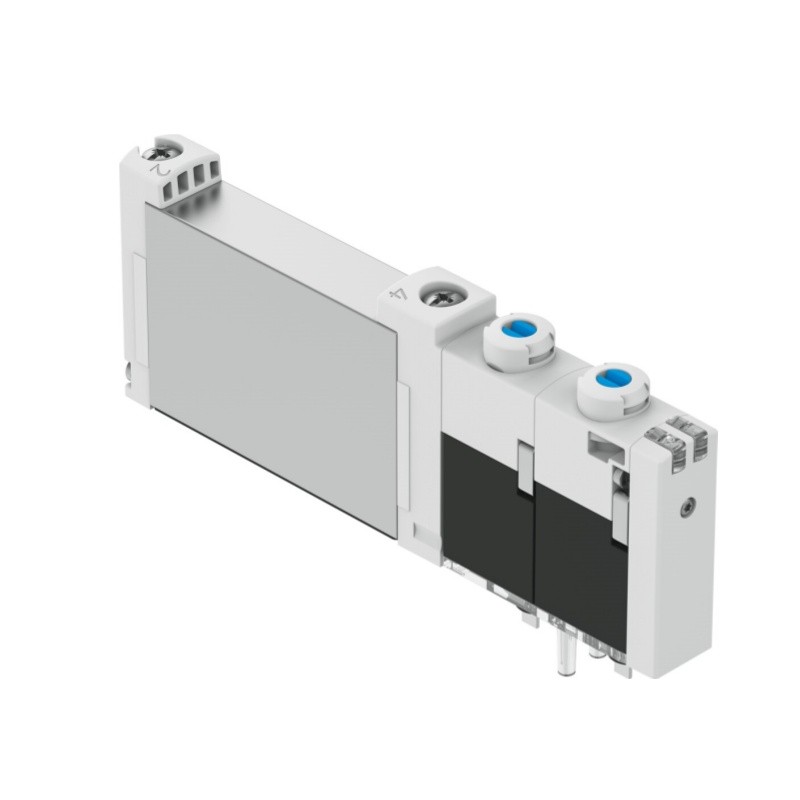

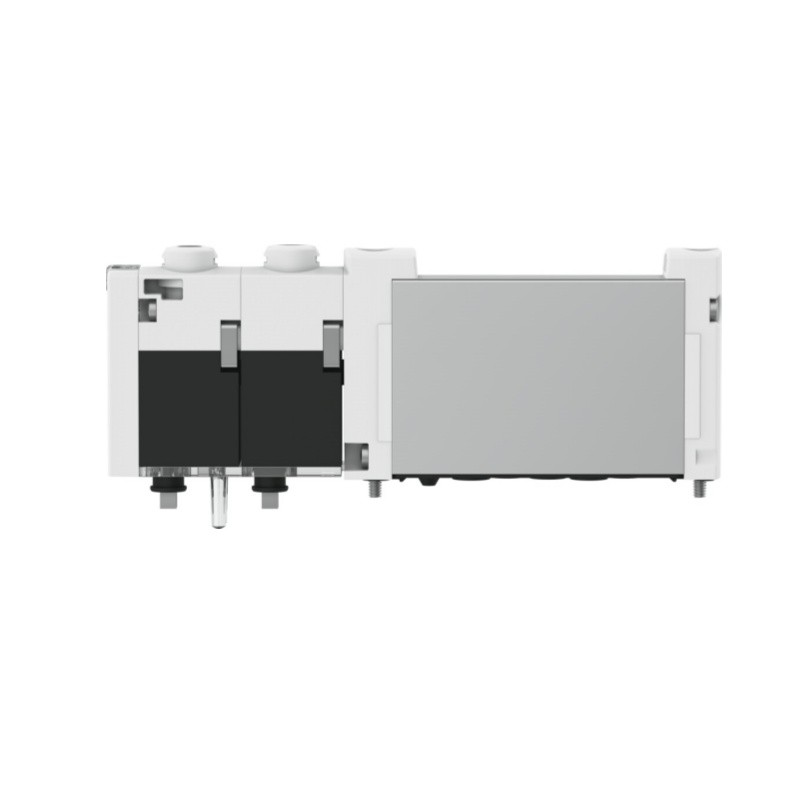

VUVG-B10-T32C-AZT-F-1T1L (Part No.573410) is Festo VUVG modular valve slice for VUVG valve terminal. Valve function 2×3/2 closed monostable, external pilot air supply, 10mm size with nominal flow 150 l/min. Equipped with detent manual override and LED status indicator, IP65/IP67 protection rating. Piston gate soft seal design, fast switching speed, suitable for assembling into multi-station valve island for centralized pneumatic control.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VUVG-B10-T32C-AZT-F-1T1L |
| Part No. | 573410 |
| Product Type | Pneumatic Solenoid Valve / Valve island sub-valve |
| Series | VUVG |
| Valve Function | 2×3/2 way, closed, monostable |
| Valve Size | 10 mm |
| Mounting | Flange for VUVG valve terminal |
| Supply Voltage | 24 V DC ±10% |
| Operating Pressure | 1.5 ~ 10 bar |
| Pilot Pressure | 1.5 ~ 8 bar, external pilot supply |
| Standard Nominal Flow | 150 l/min |
| Switch-on Time | 8 ms |
| Switch-off Time | 20 ms |
| Max. Switching Frequency | 3 Hz |
| Protection Class | IP65 / IP67 |
| Manual Override | Detent type |
| Signal Indicator | LED status display |
| Exhaust | With flow control option |
| Structure | Piston gate valve, soft seal |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Ambient Temperature | -10 ~ +50 ℃ |
| Housing Material | High-performance plastic |
| Seal Material | NBR |
| CRC Corrosion Class | CRC1 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.042 kg |
| Gross Weight | 0.06 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | VUVG modular valve terminal, pneumatic cylinder control, automation assembly & handling equipment |
