AHM36A-SCPZ000S10

属性名称	属性值
Brand	SICK
Model	AHM36A-SCPZ000S10
Product Type	Single-turn Absolute Rotary Encoder
Connector Type	M12 8 Pin straight connector
Resolution	12bit singleturn (4096 steps/turn)
Shaft Type	Solid shaft
Shaft Diameter	6 mm
Output Signal	SSI
Supply Voltage	4.75…30 V DC
Max Speed	12000 rpm
IP Rating	IP67
Housing Material	Aluminum alloy
Operating Temperature	-20℃~+70℃
Feature	12bit single-turn absolute encoder, SSI interface,6mm solid shaft,M12 8pin,compact housing,high speed,anti-

INQUIRY

Product Details

Product Tags

Product Overview

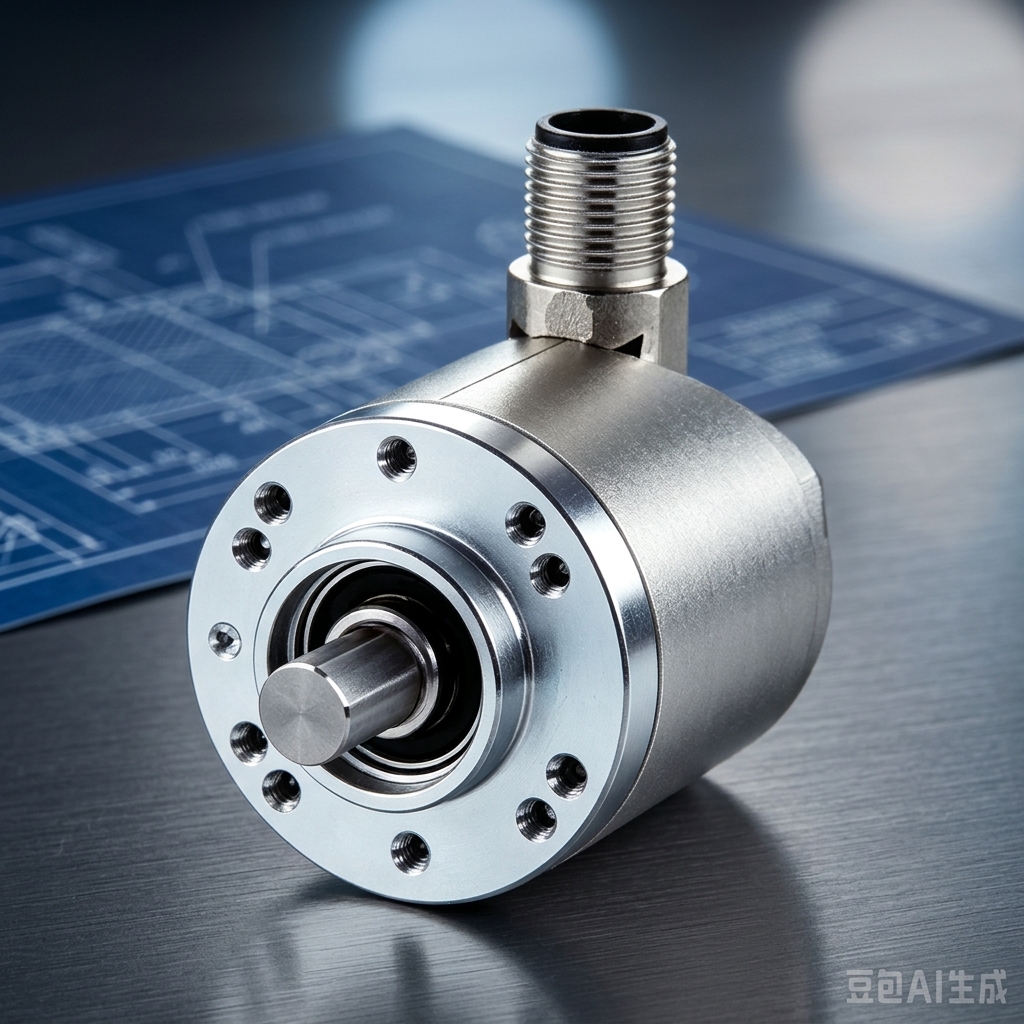

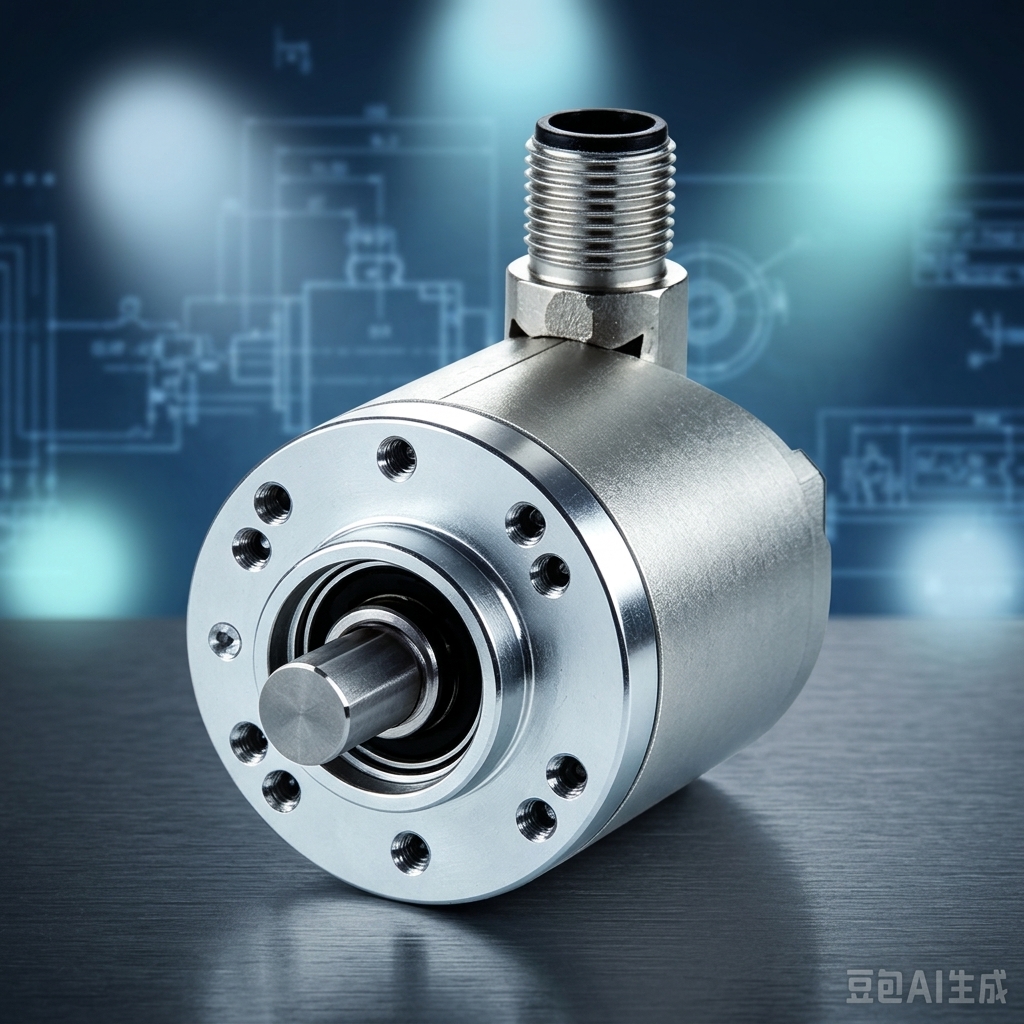

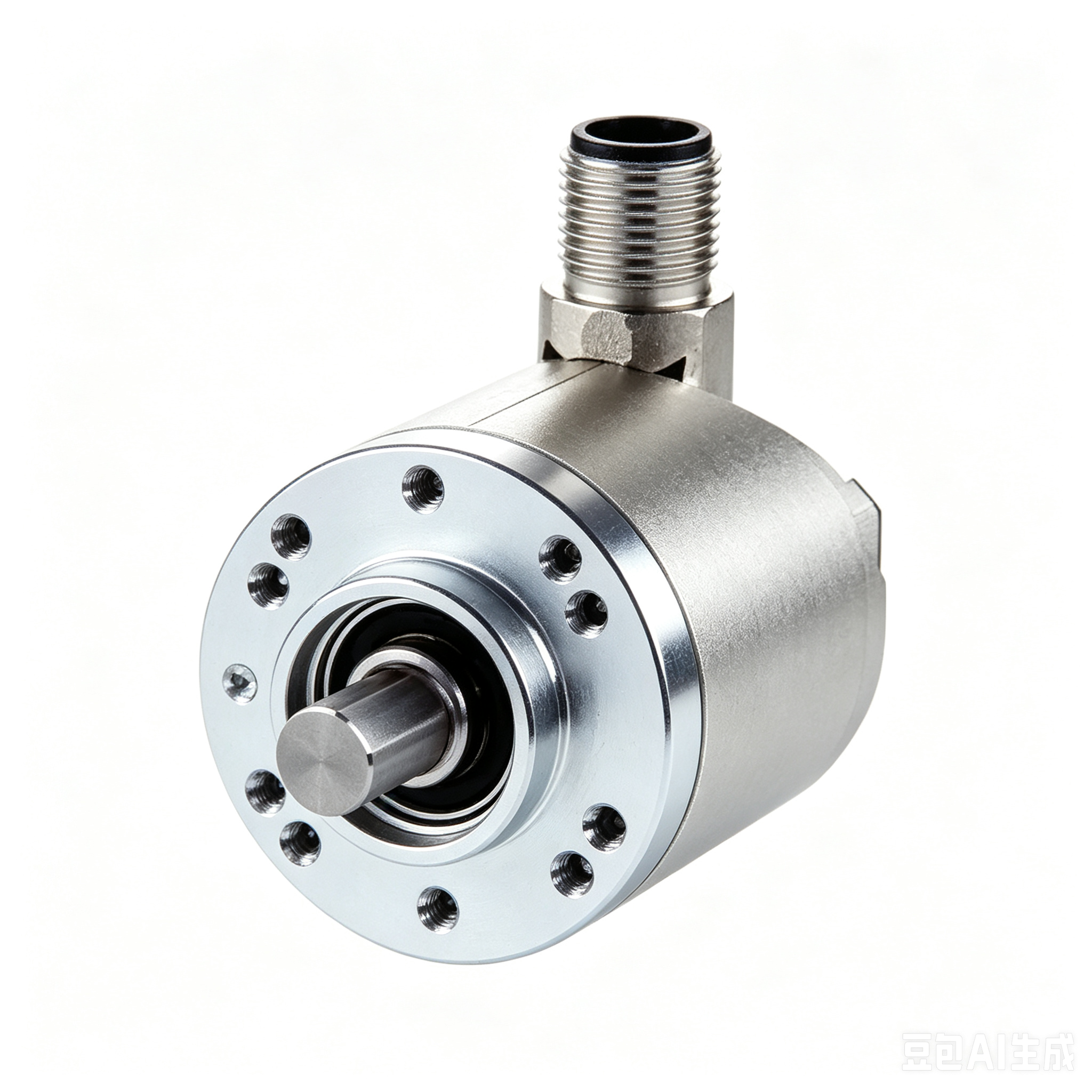

AHM36A-SCPZ000S10 is SICK single-turn absolute rotary encoder. It comes with 12-bit single-turn resolution (4096 steps per revolution), equipped with 6mm solid shaft and M12 8-pin straight connector. It uses SSI serial interface, supply voltage 4.75~30 V DC, max rotating speed up to 12000 rpm. Aluminum alloy housing with IP67 high protection rating. Compact structure, strong anti-interference, it can output absolute position value directly without battery, perfect for precision positioning of mini industrial automation devices.

属性名称	属性值
Brand	SICK
Model	AHM36A-SCPZ000S10
Product Type	Single-turn Absolute Rotary Encoder
Connector Type	M12 8 Pin straight connector
Resolution	12bit singleturn (4096 steps/turn)
Shaft Type	Solid shaft
Shaft Diameter	6 mm
Output Signal	SSI
Supply Voltage	4.75…30 V DC
Max Speed	12000 rpm
IP Rating	IP67
Housing Material	Aluminum alloy
Operating Temperature	-20℃~+70℃
Feature	12bit single-turn absolute encoder, SSI interface,6mm solid shaft,M12 8pin,compact housing,high speed,anti-interference,absolute position without battery
Certification	CE
Condition	New Original
MOQ	1 Piece
Gross Weight	0.16 KG
Net Weight	0.13 KG
Place of Origin	Germany
